9KOHX 9000lb 2 Post Lift

Looking for a lift that will help both the Mini Cooper and an F-150? The Atlas 9KOHX lift is here to break you out of lift limbo and into a world of possibilities. This capacity light commercial-grade lift is a marvel with a 9,000-pound lifting capacity that adapts to your garage and your fleet.

With its adjustable height settings and configurable arms, it's like having multiple lifts in one. Its symmetric-to-asymmetric flexibility means you can cradle a lowered sports car or small cars one day and hoist a hefty pickup or light-duty trucks the next. It works seamlessly whether in a symmetric or asymmetric position.

The spring-loaded Secondary Lock System (SLS) is standing by 24/7, ready to catch any slack or broken chain faster than you can blink. This dual safety system automatically engages to protect against broken chain failure.

Don't let inflexible lifts hold you back. With the Atlas 9KOHX, you're not just lifting vehicles; you're entering a realm of productivity you have only daydreamed of before.

Atlas 9KOH Lift Specifications:

  • Capacity 9,000 LB (Among the most lifting capacity options in its class)

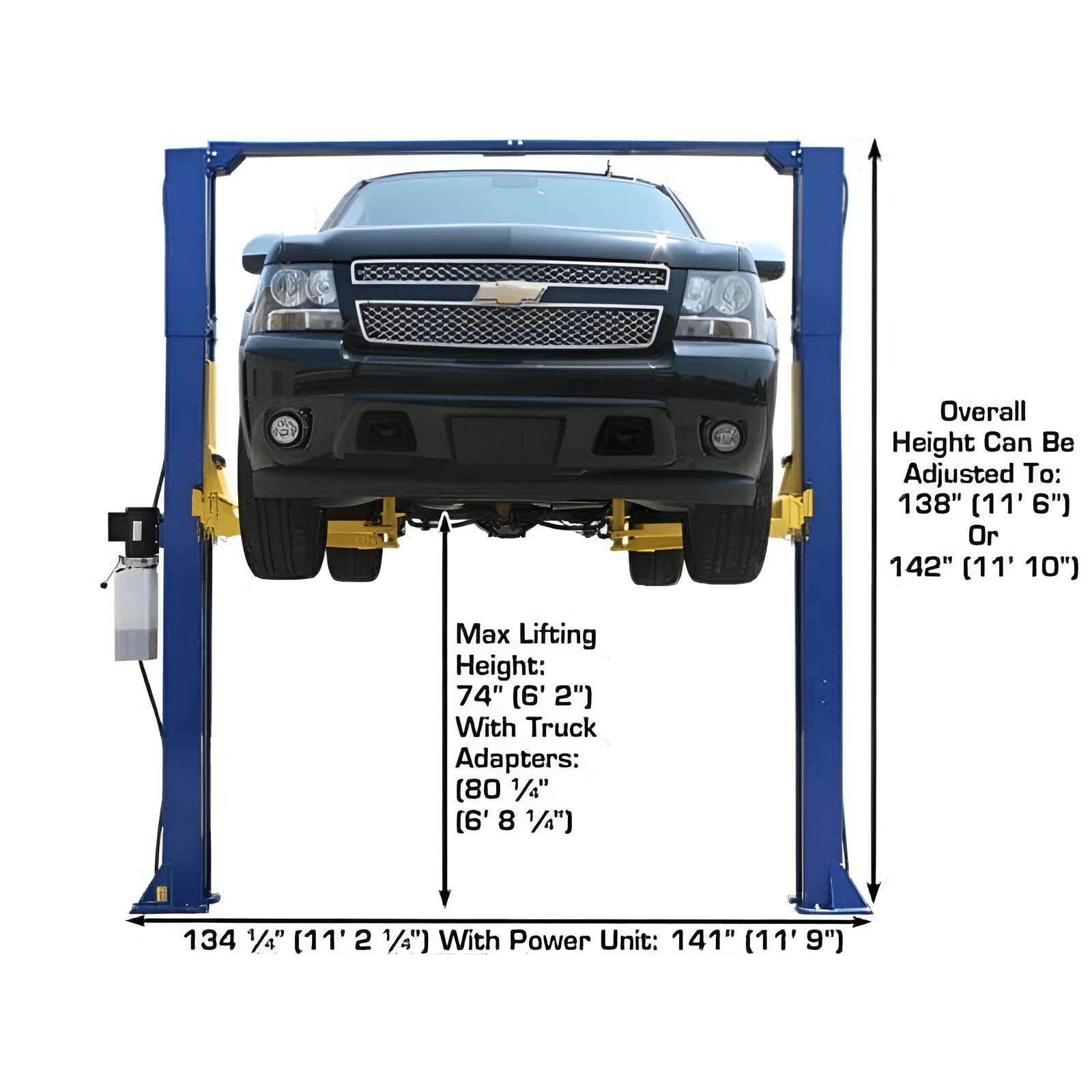

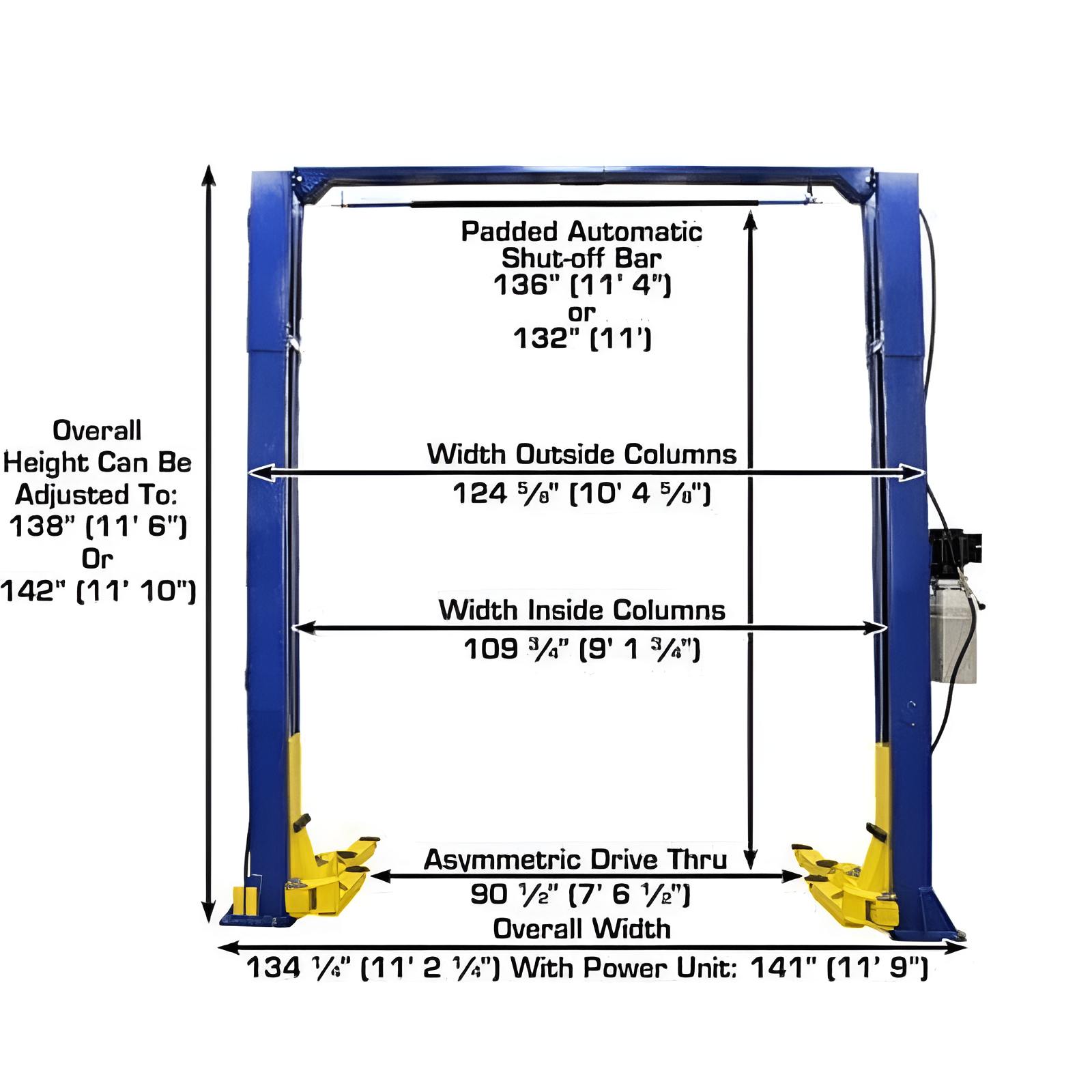

  • Overall Height 138" (11’ 6") or 142” (11’ 10”)
  • Overall Floor Width 134 1/2" (11’ 2 1/2")
  • Outside Column to Outside Column 124 7/8" (10’ 4 7/8")

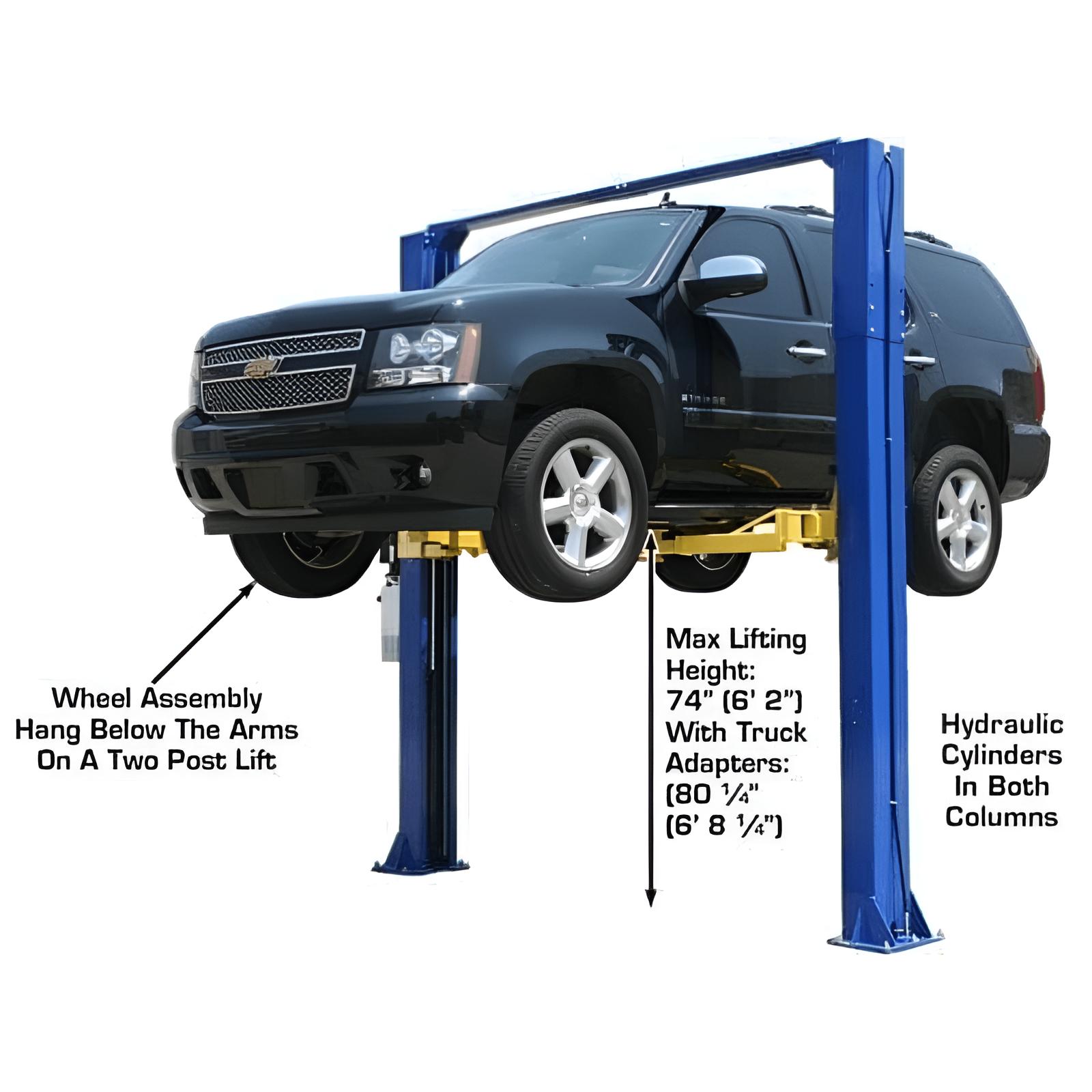

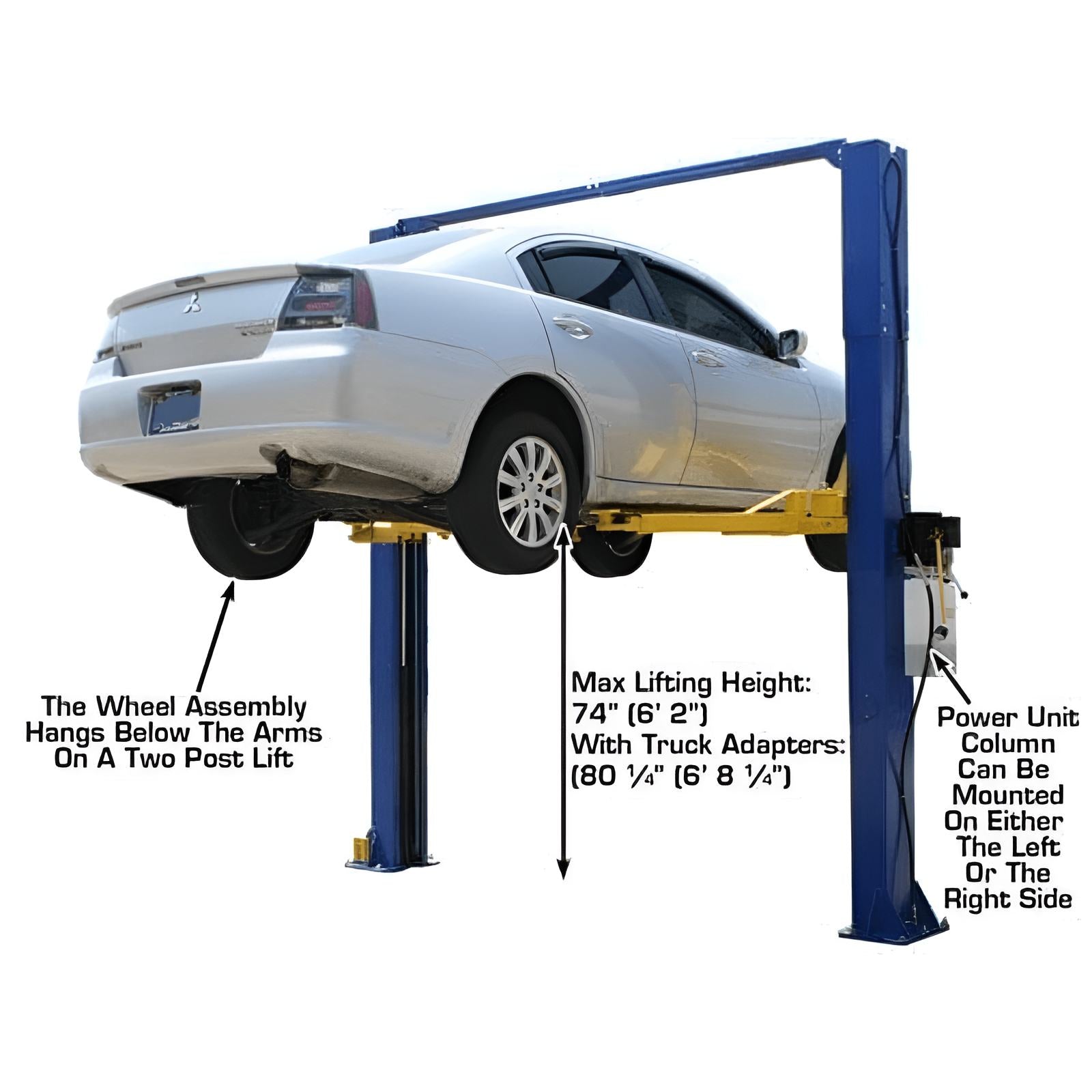

  • Maximum Lift Height (Without Adapters) 74 1/2"
  • Maximum Lift Height (With Adapters) 81"
  • Minimum Arm Height 4"
  • Inside Column 110” (9’ 2”)

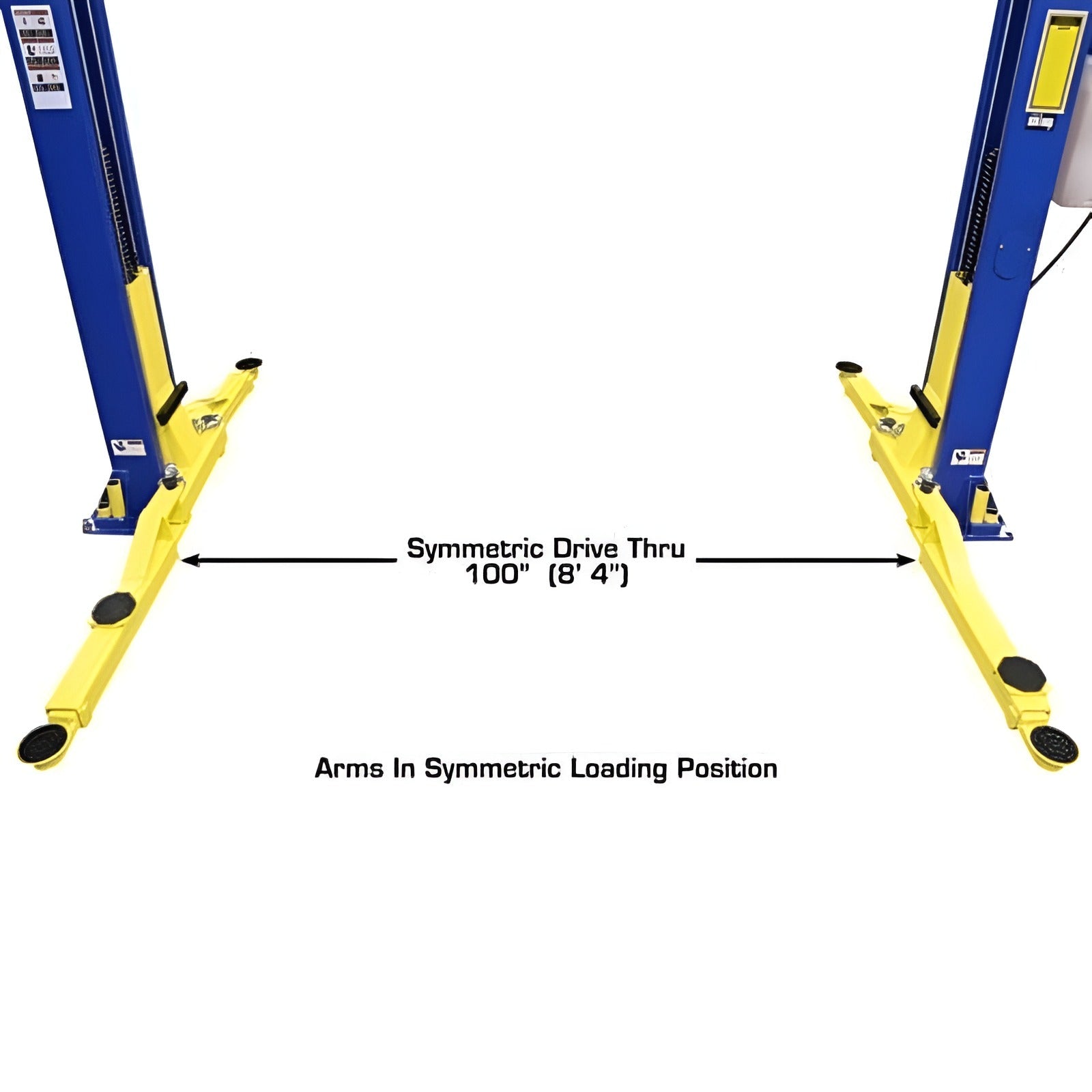

  • Drive Thru 100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric

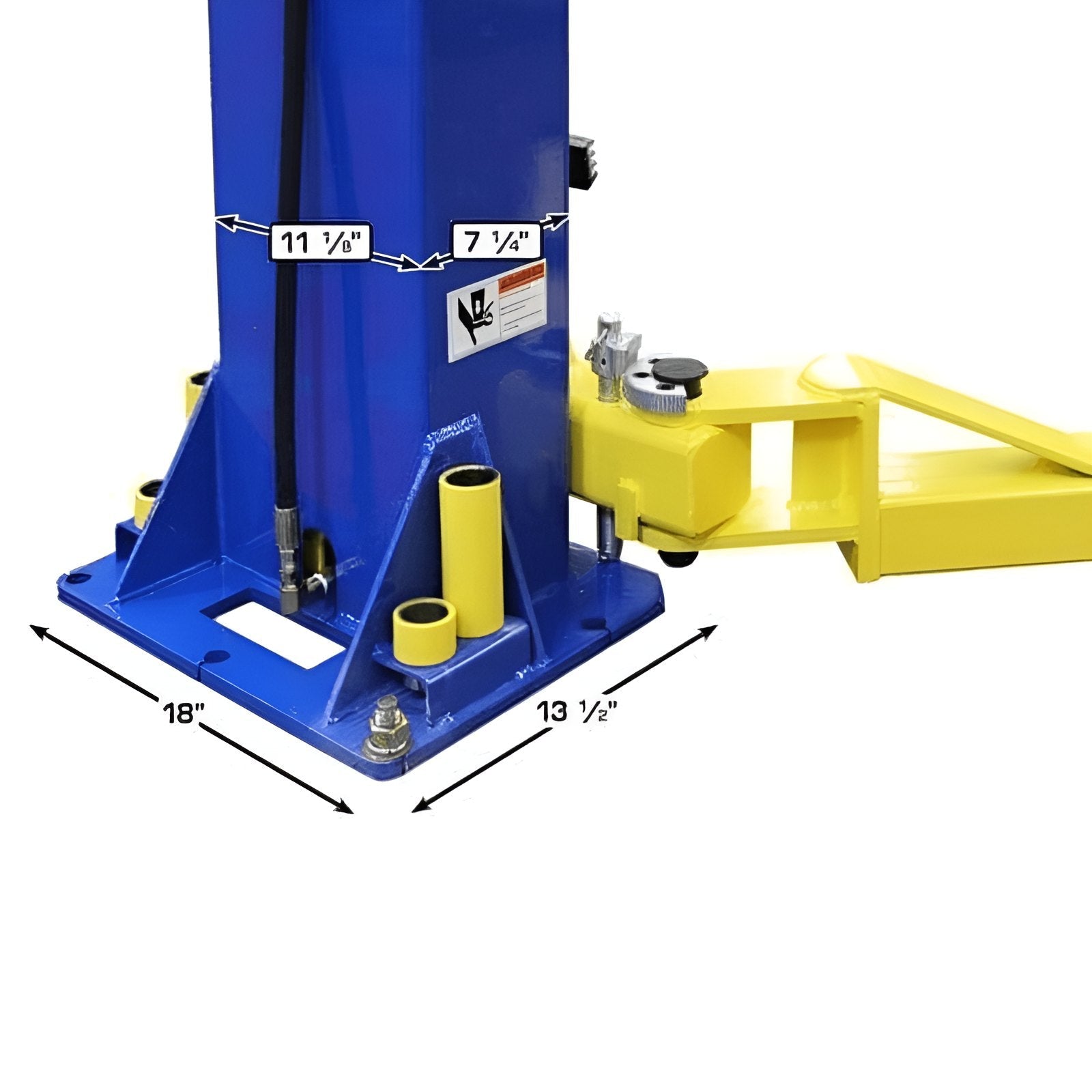

  • Column Size 7 1/4" x 11"
  • Column Thickness of Steel 5mm
  • Base Of Lift 14 1/4" x 18"

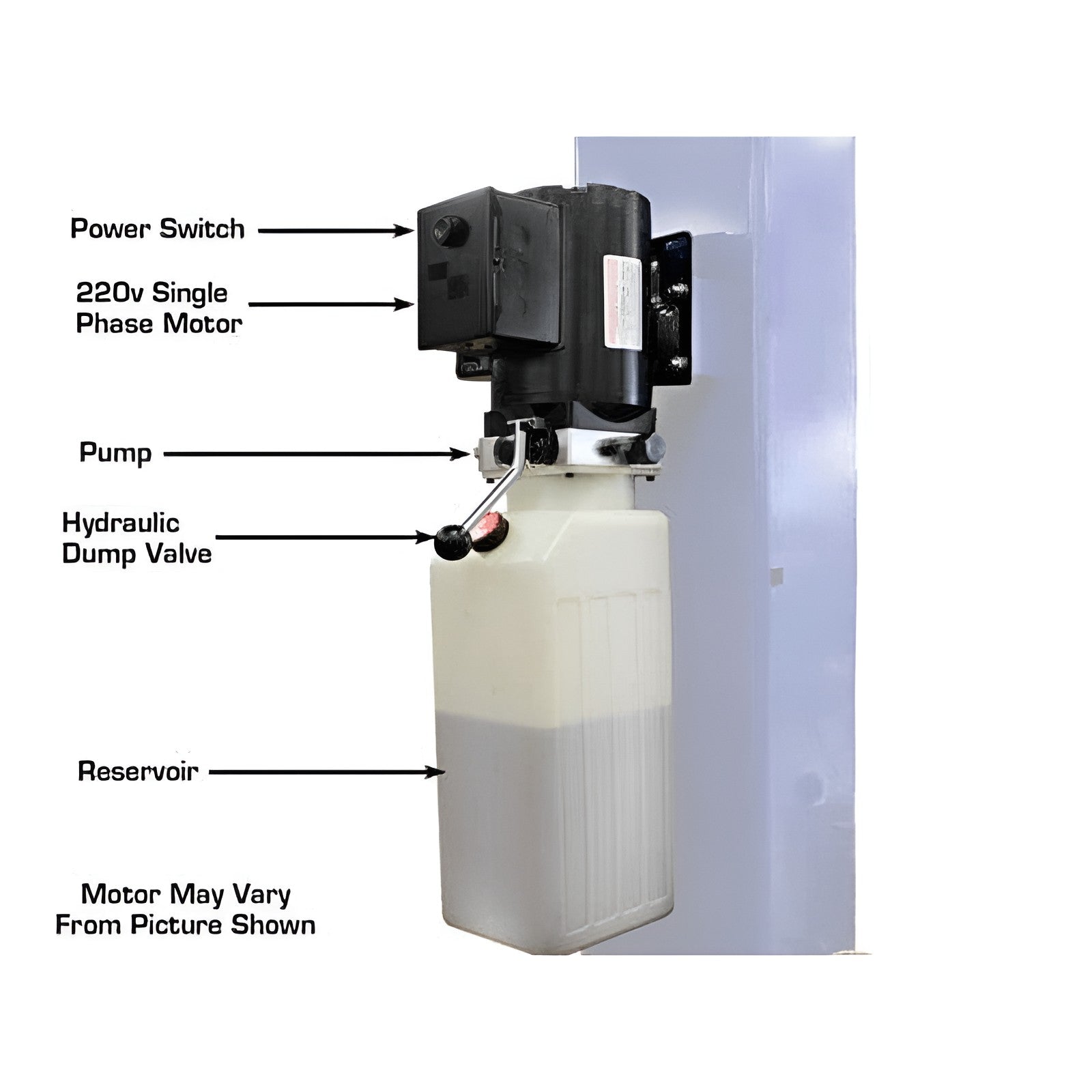

  • Motor/Electrical Requirement 220 volt single (1) phase. (A 30-amp breaker is recommended)
  • Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
  • Shipping Weight 1,450 LBS.

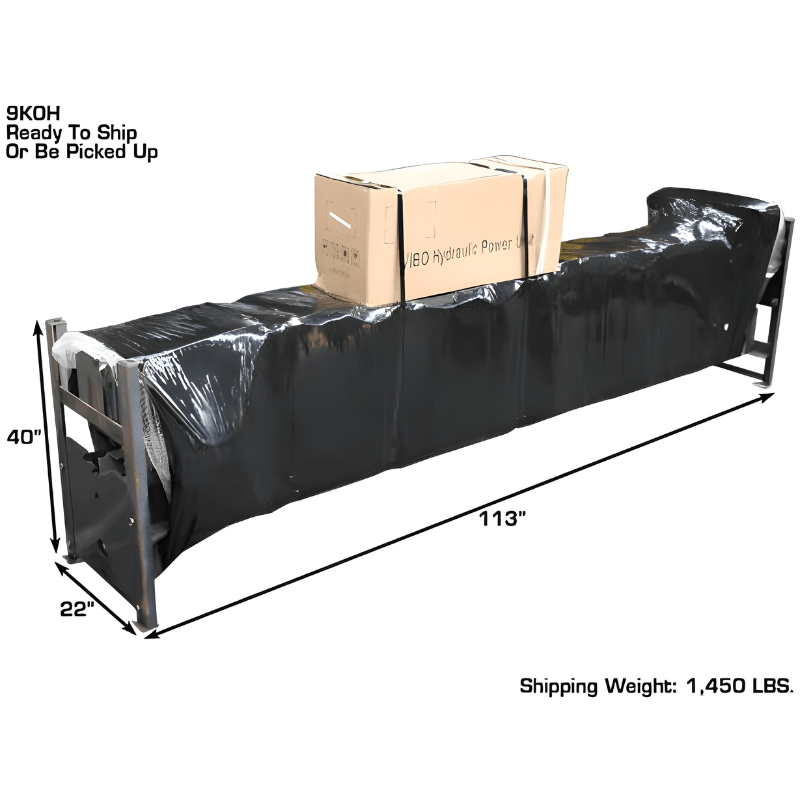

  • Pallet Size: 113" Long x 40" Tall x 22" Wide + Box strapped to top of pallet

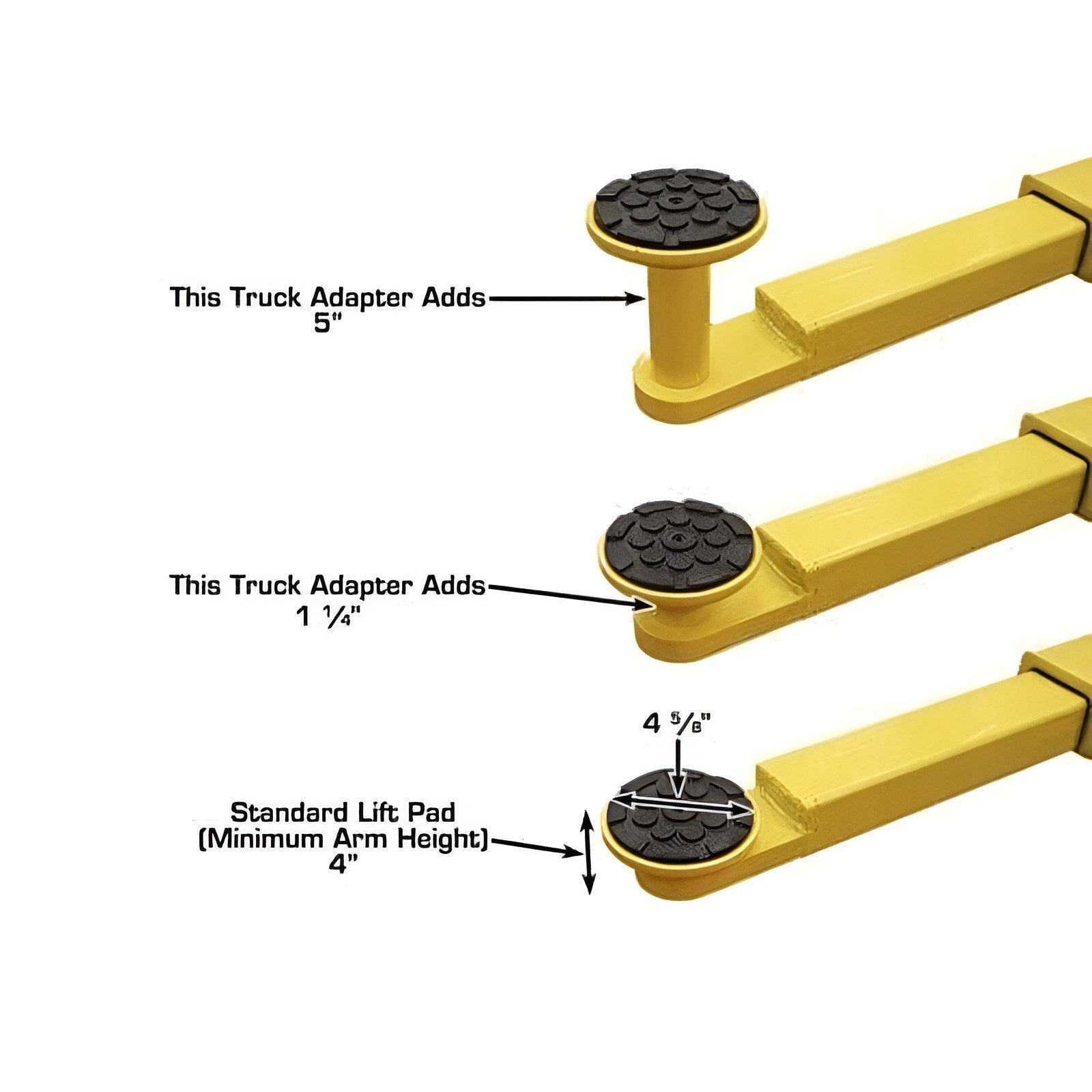

  • Adapter Heights 4 Each 1.5”, 5”
  • Arm Hole/Adapter Peg Size 1.5”
  • Requires a minimum of 4" of concrete with a 3000 psi. rating

Atlas 9KOHX 9,000 lb 2 Post Lift Special Features:

  • Capacity Overhead, Open Floor Design

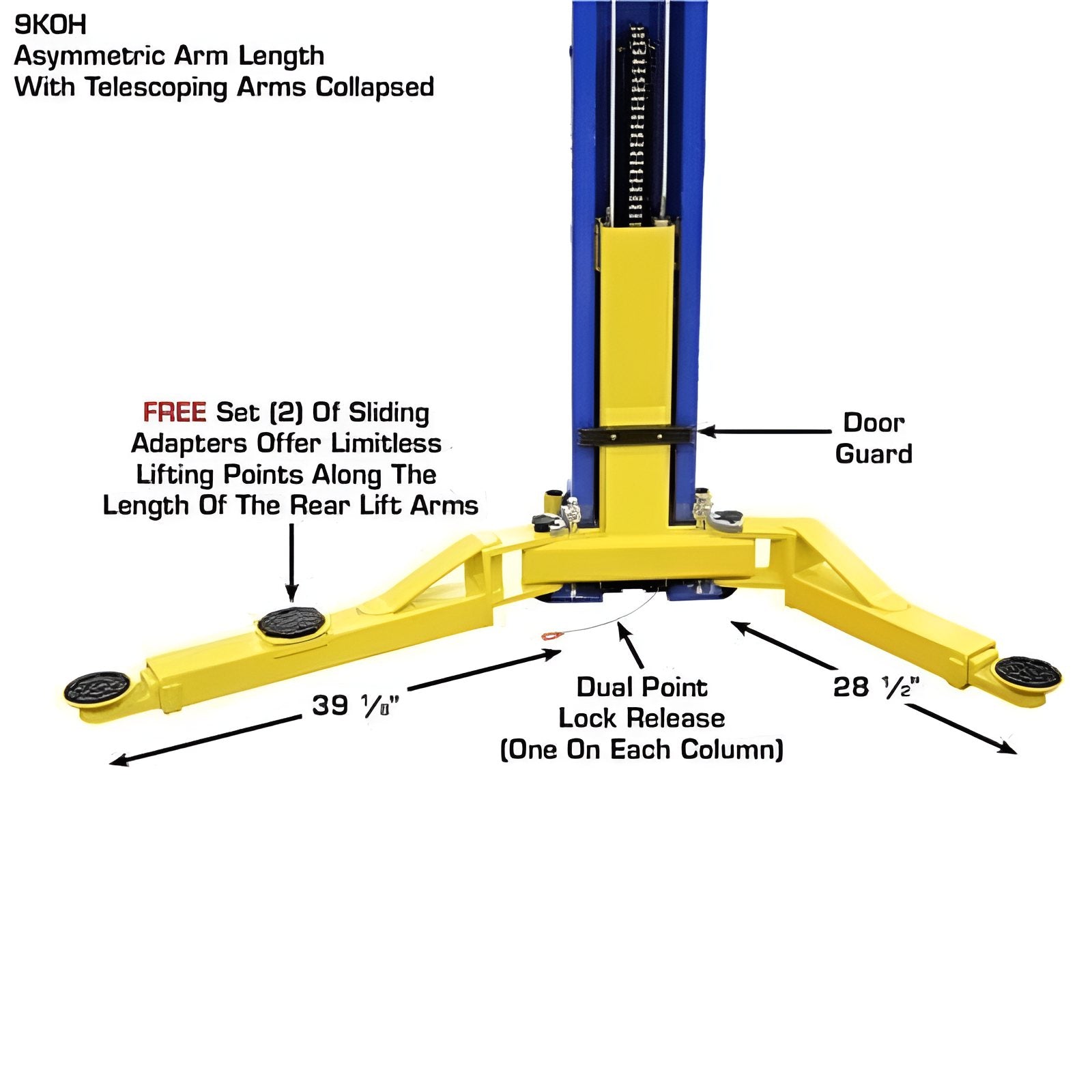

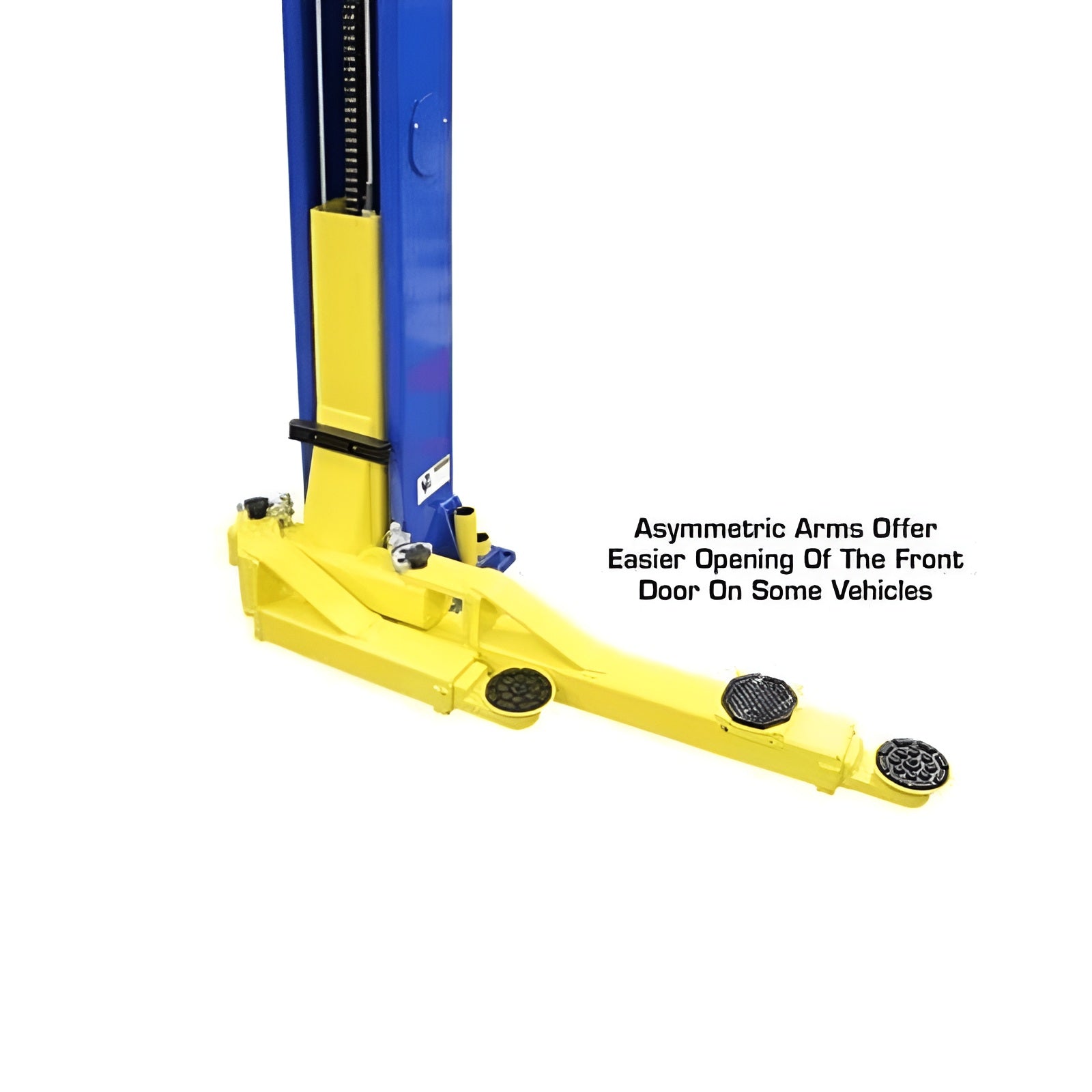

  • Asymmetric & Symmetric Lift Arms

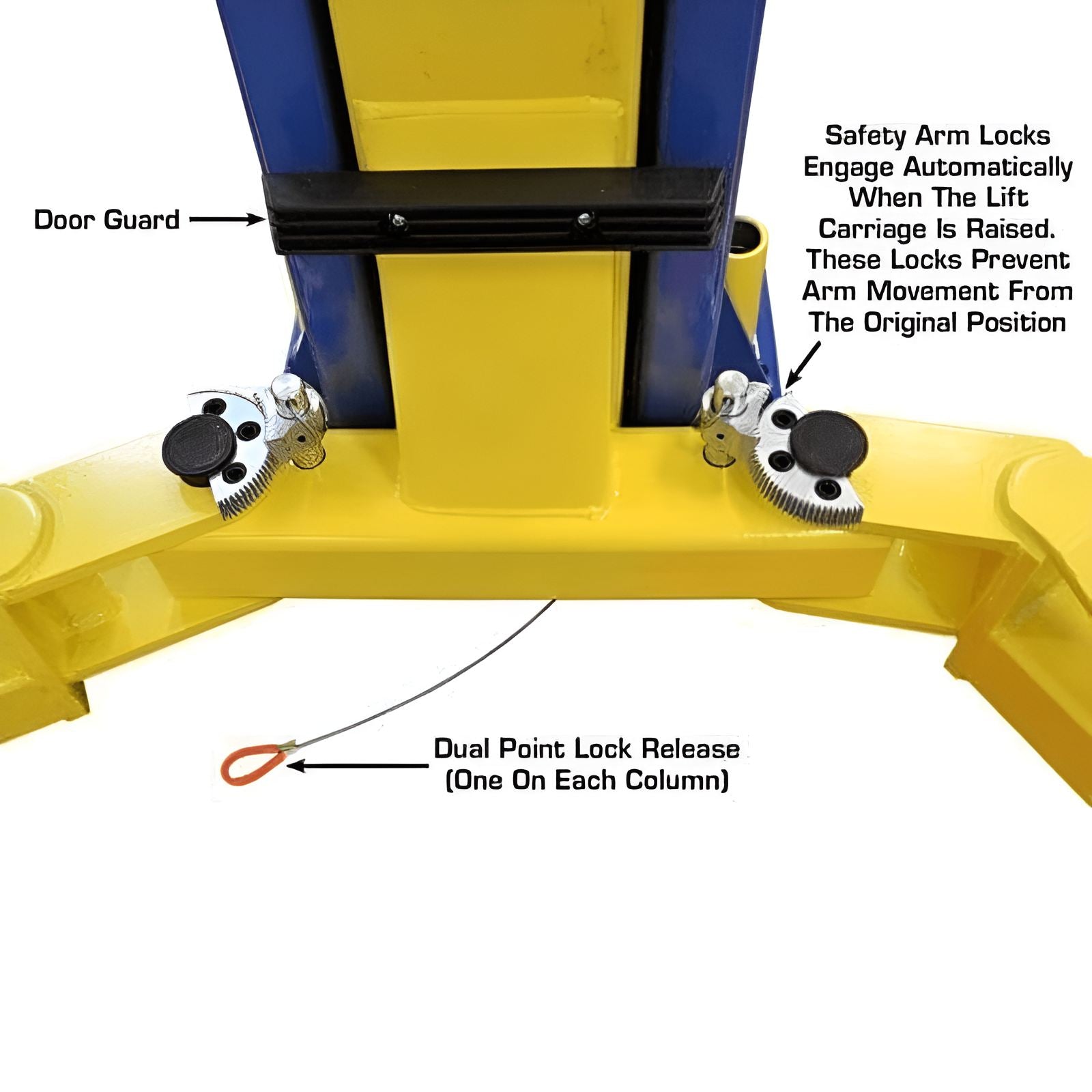

  • Automatic Arm Restraints
  • Dual Point Lock Release
  • Rubber Guards on the Carriage

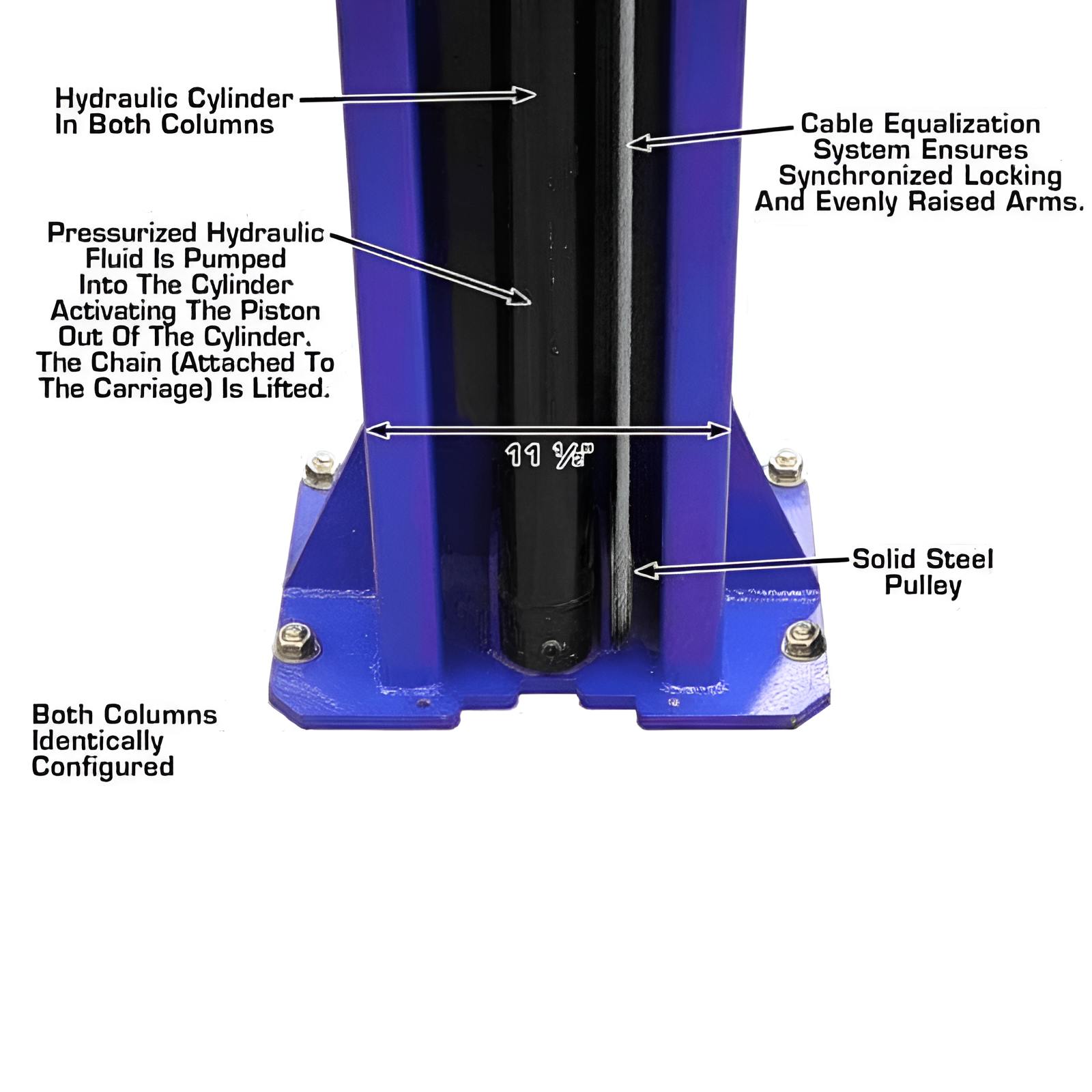

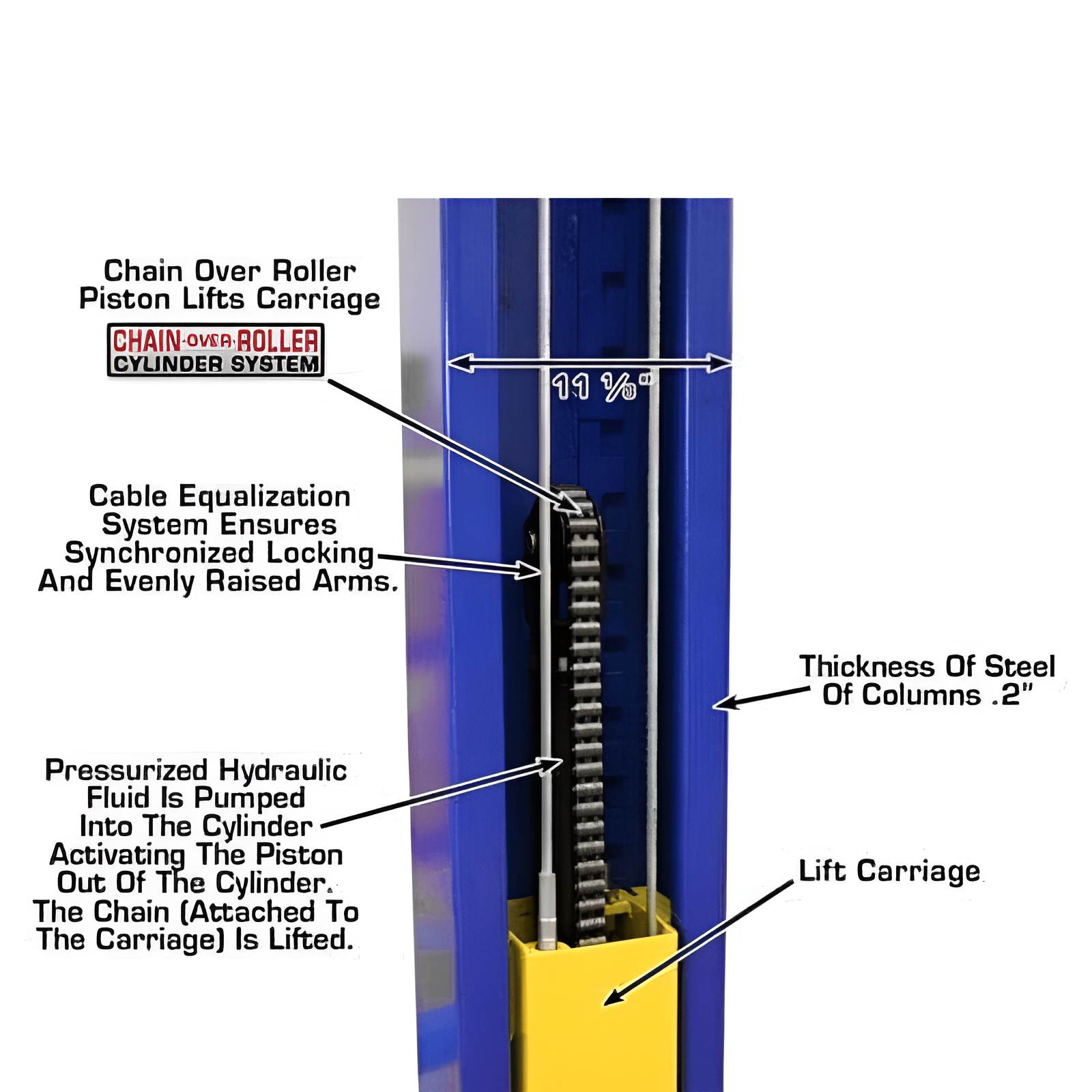

  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System
  • Warranty: 2-year Structural; 1 year Hydraulic ‐ Parts Only
  • Unit Includes:

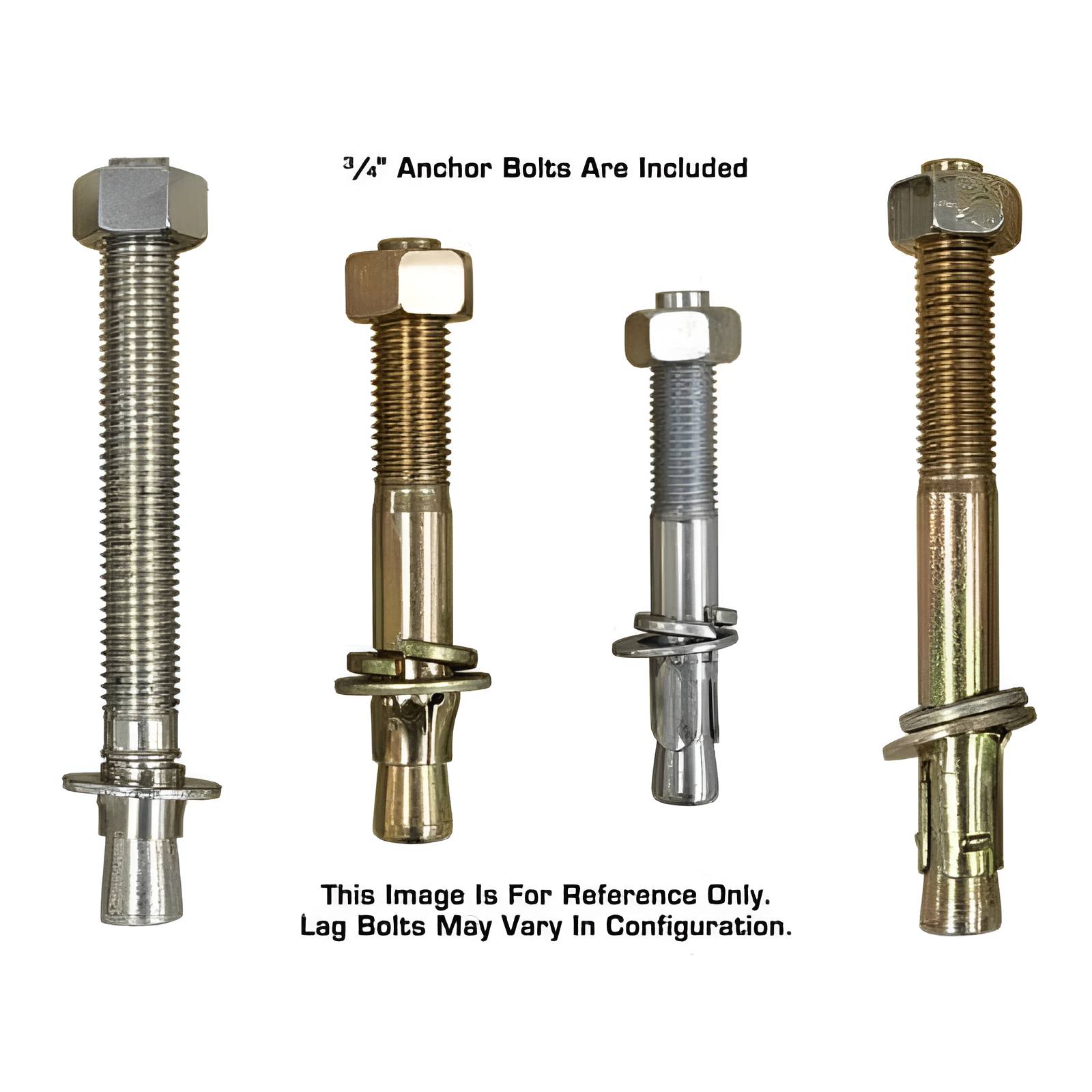

    • Mounting Hardware

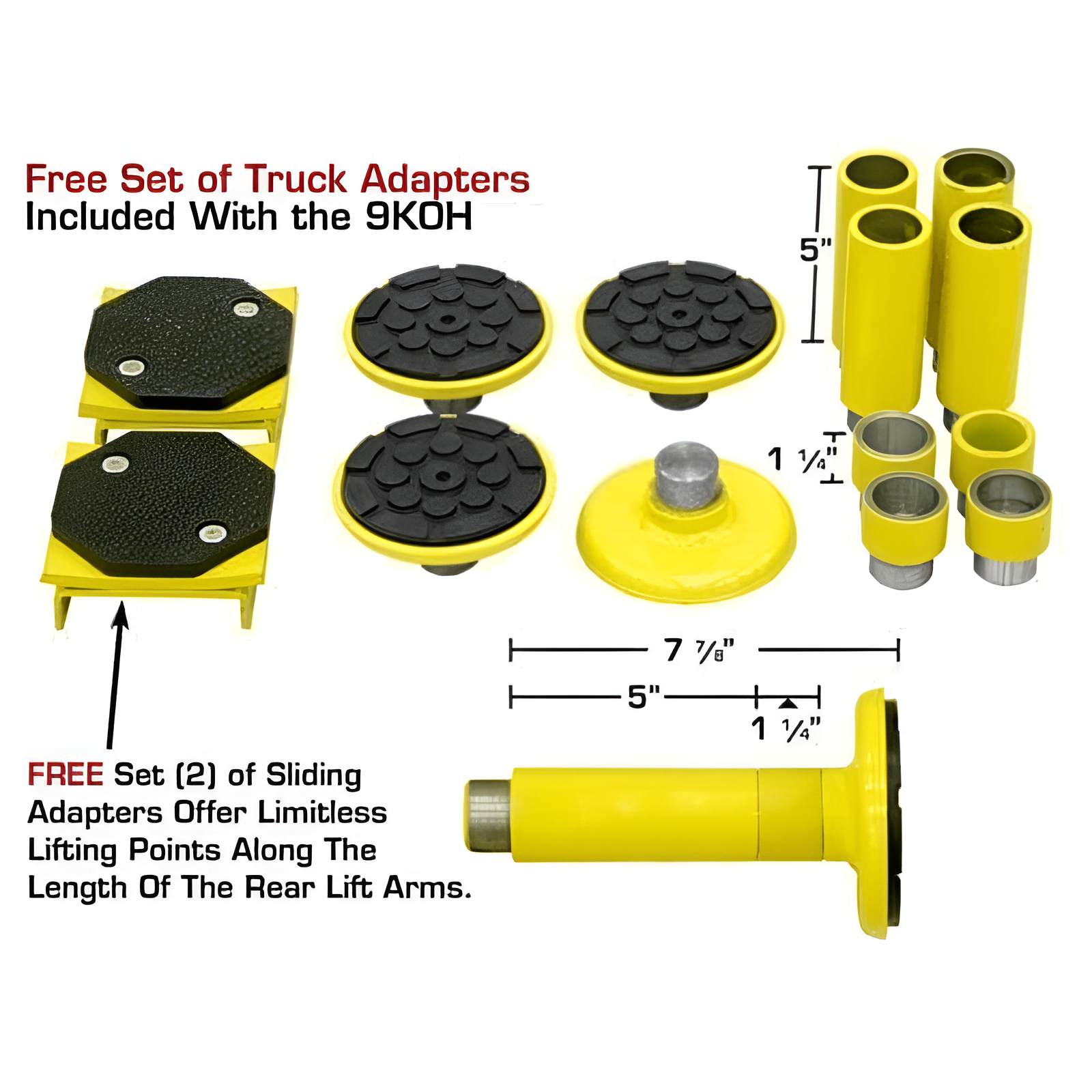

    • 8-piece Truck Adapter Set
    • Sliding Arm Adapters

Atlas 9KOH Car Lift Manual:

Atlas 9KOH Lift Manual

 Warehouse Pickup locations (No shipping charge):

  • Atlanta, GA
  • Dallas, TX
  • Fresno, CA
  • Indianapolis, IN
  • Phoenix, AZ
  • Somerset, NJ
