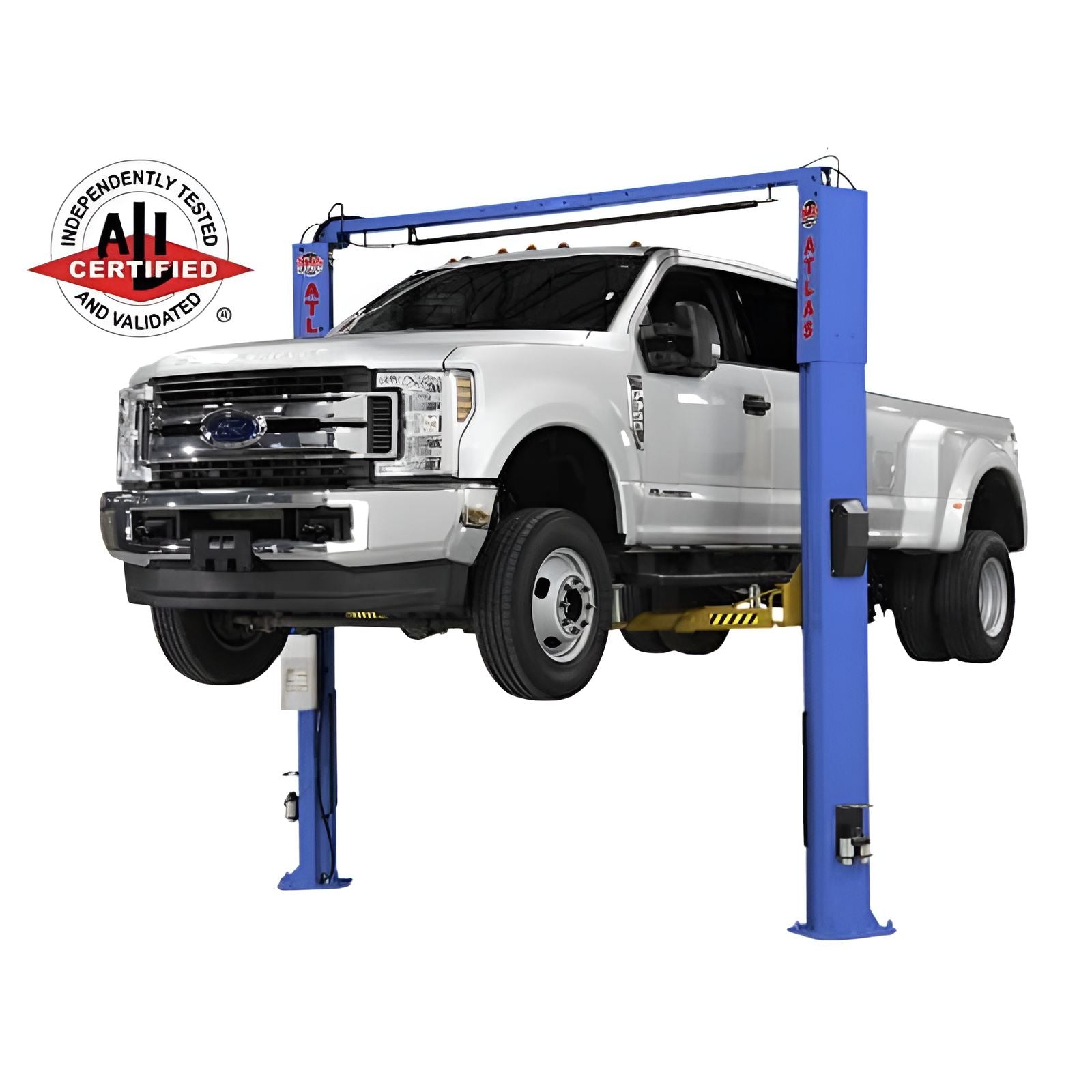

Atlas PVL10, 10,000 lb 2 Post Lift - ALI Certified

How much business are you losing because you can't service heavier vehicles? What if a lift failure led to injury or damage? Every day you continue with subpar equipment, you're leaving money on the table and risking your reputation. The Atlas® Platinum PVL10 2-post lift is your answer to these challenges.

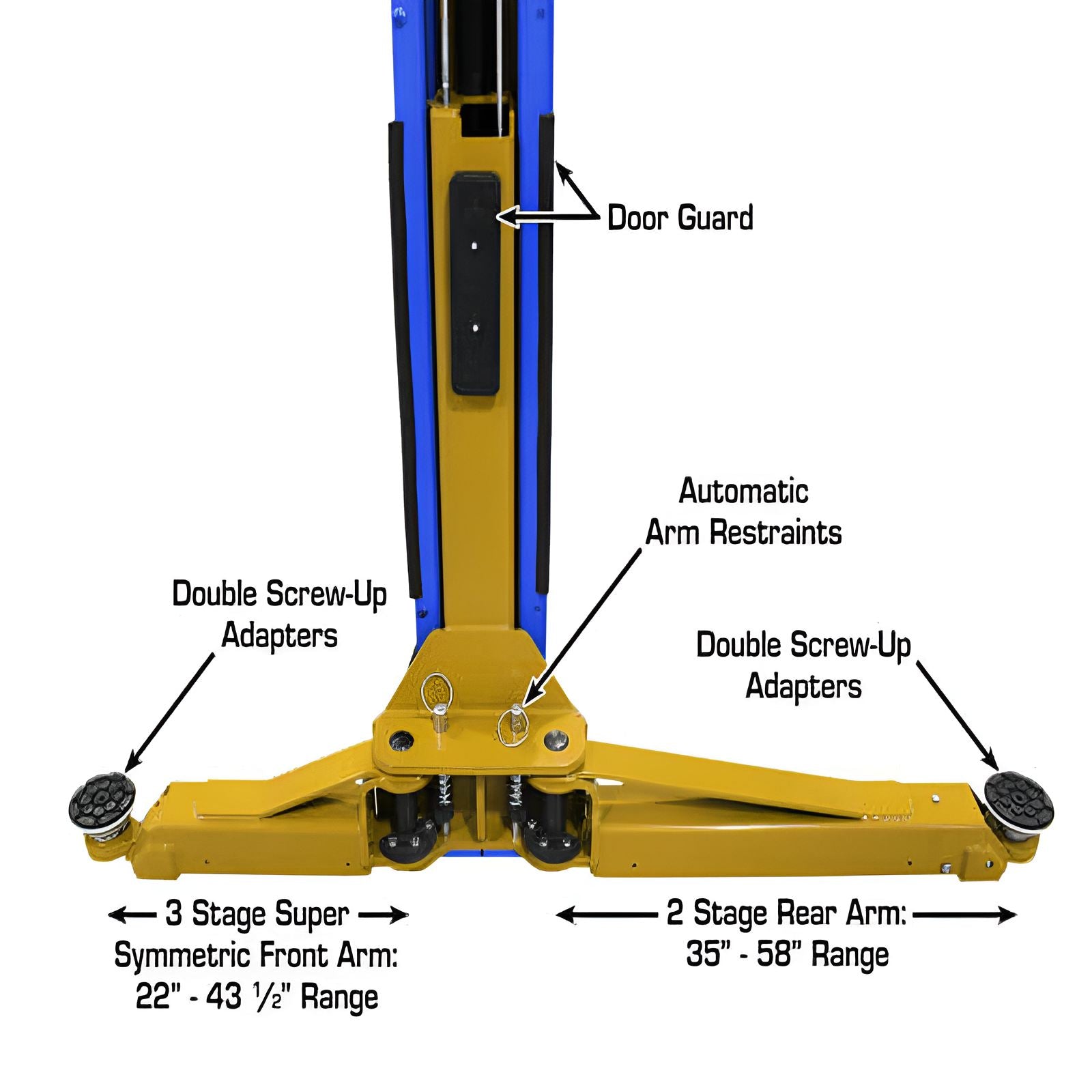

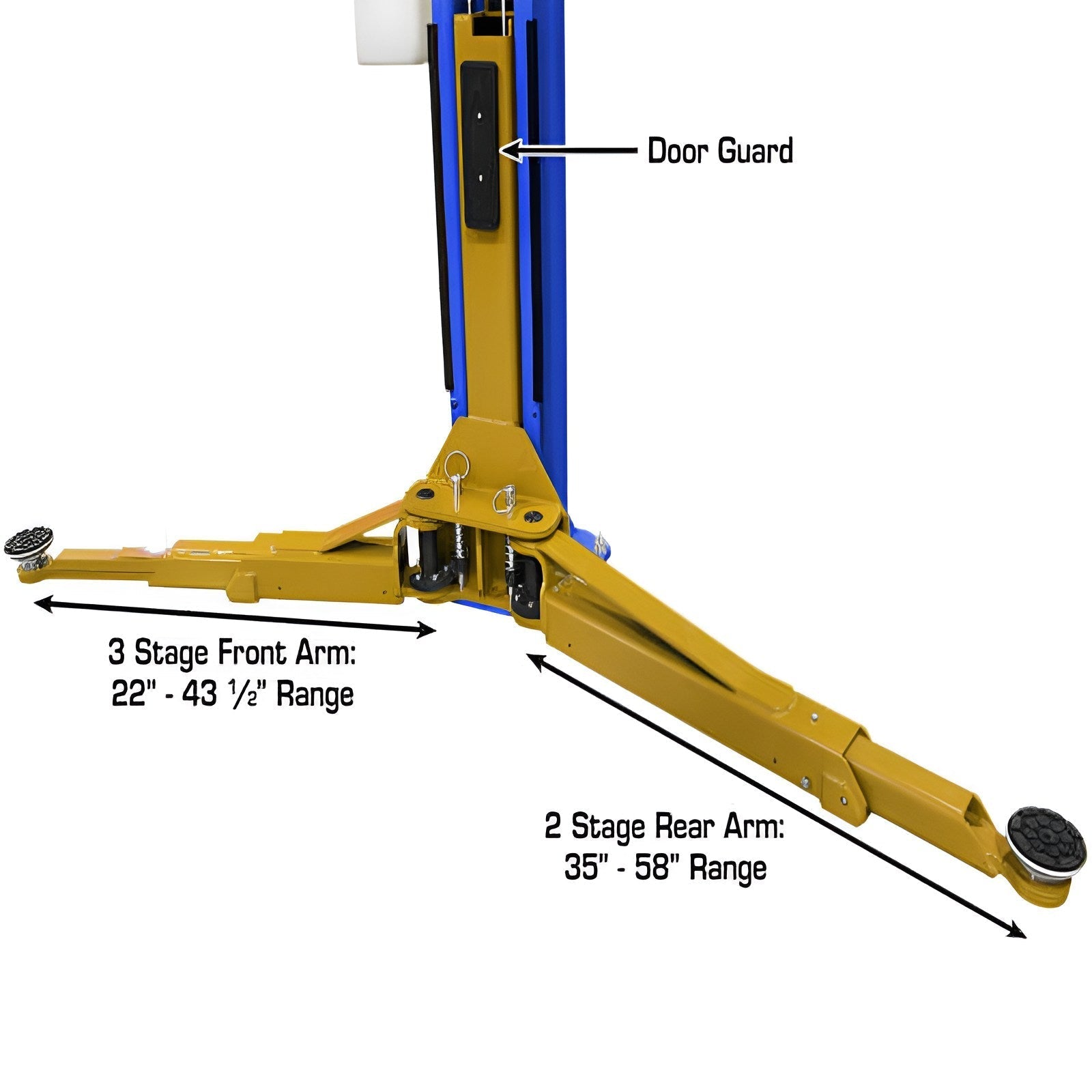

ALI Certified and boasting a 10,000 lb. capacity, it's designed for professional shops that demand the best. Its patented Double S-column design provides unmatched strength and reliability. Install it symmetrically or asymmetrically to fit your shop's layout perfectly. The three-stage front arm design ensures easy vehicle access and support for any vehicle type. Powered by the premium ALLY Hydraulic AL2850 Power Unit, certified for both US and Canada, it offers superior performance and durability. With a 5-year structural warranty, 2-year hydraulic warranty, and included accessories like the 8-piece truck adapter set, it's a complete solution for your lifting needs.

PVL10 Atlas Specifications:

• Capacity 10,000 LB.

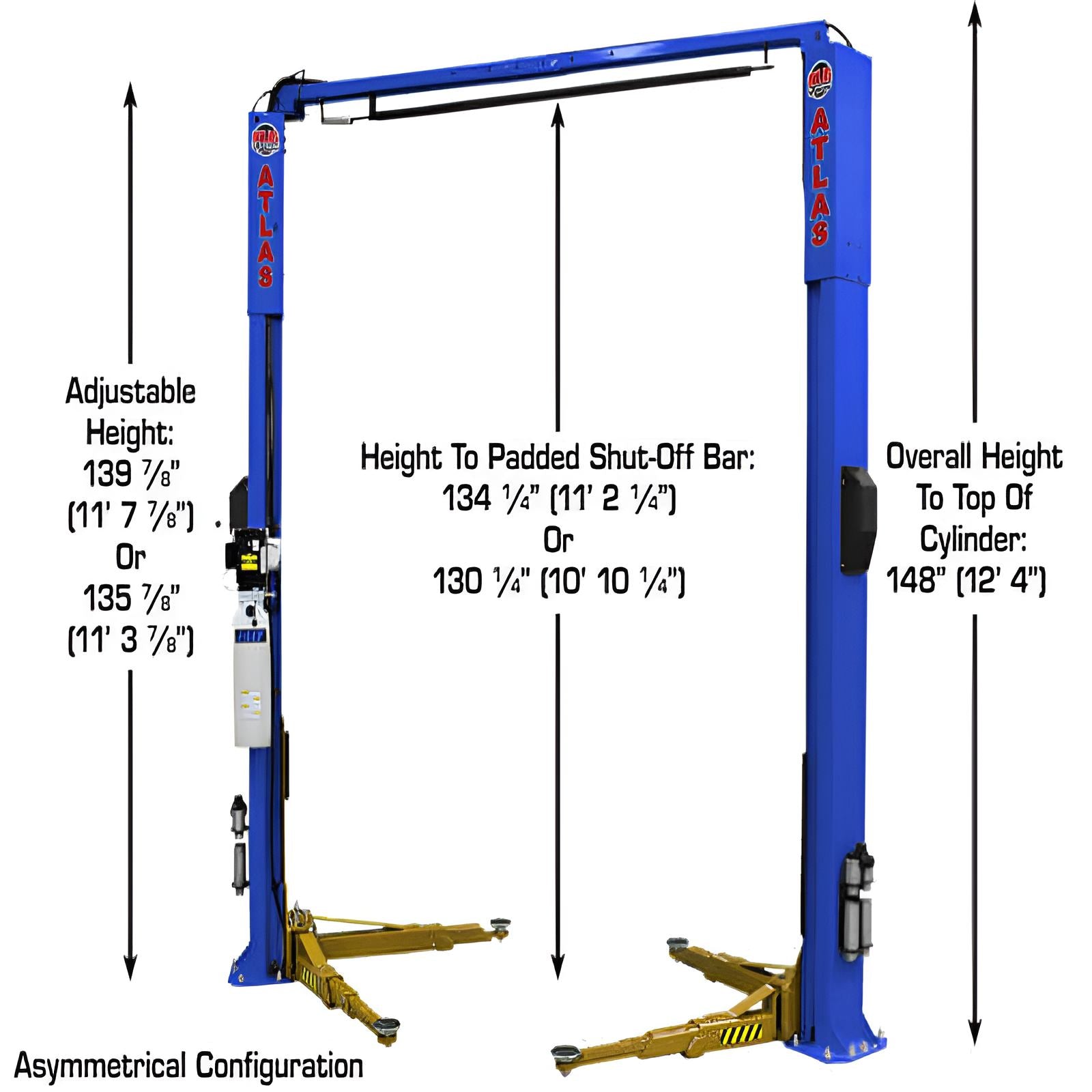

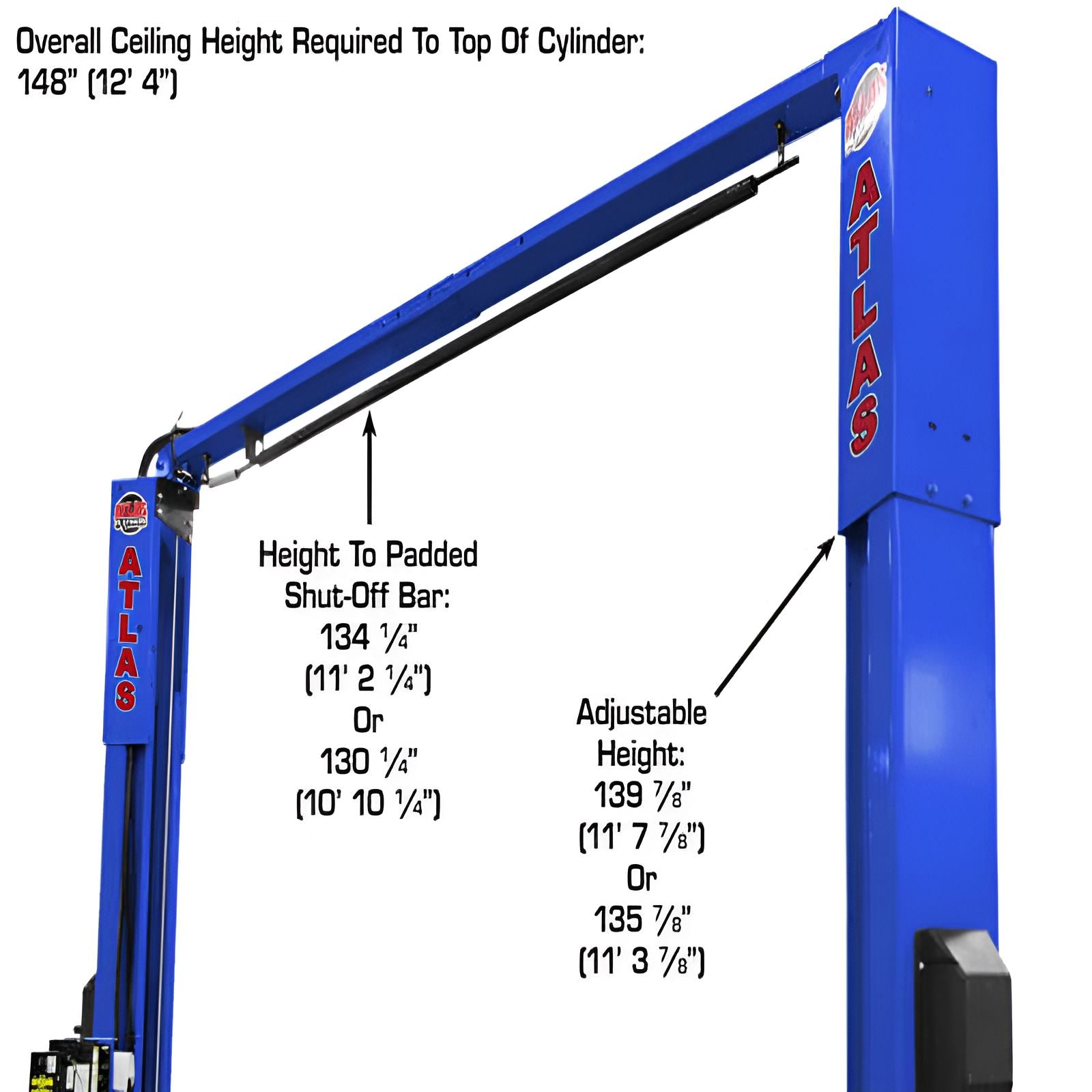

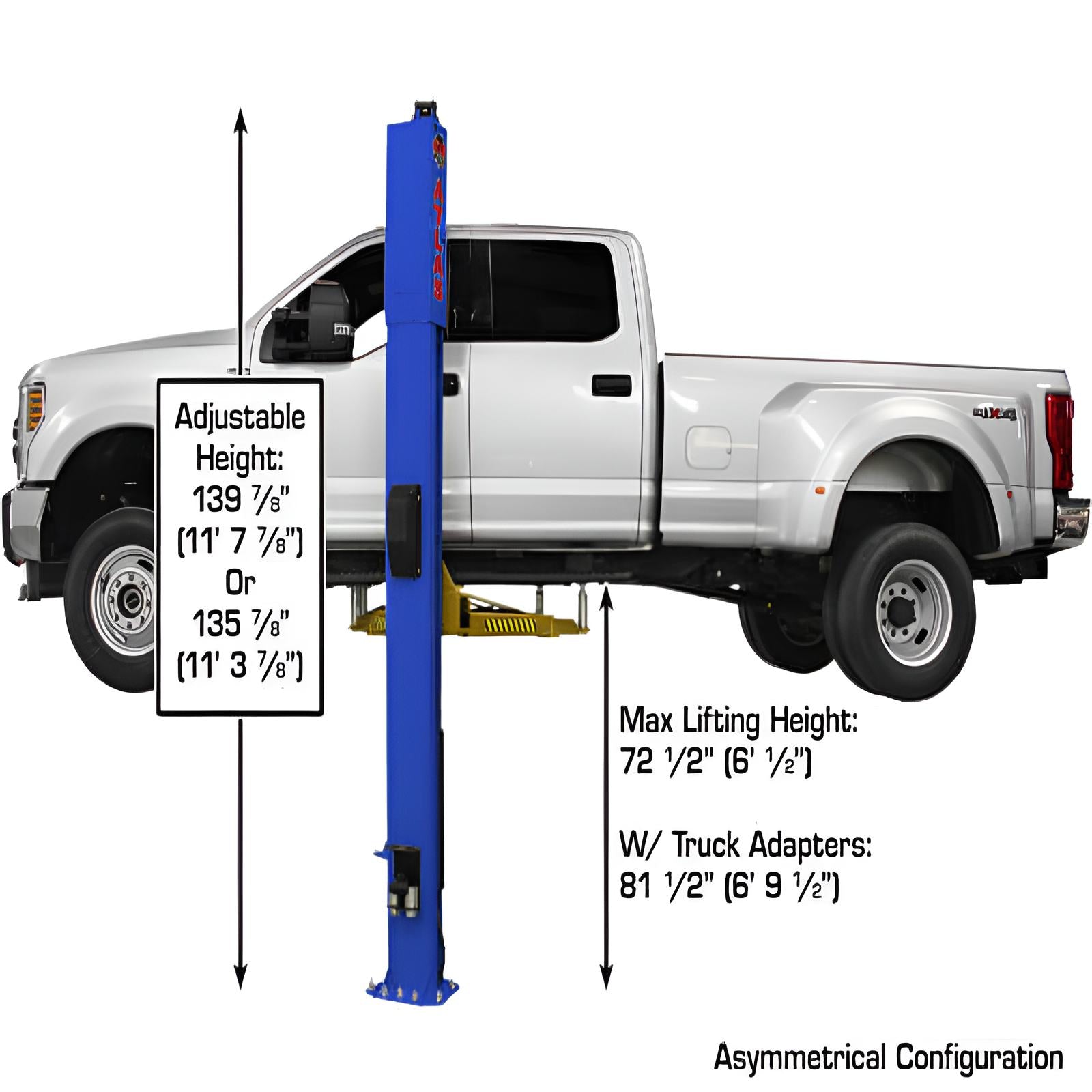

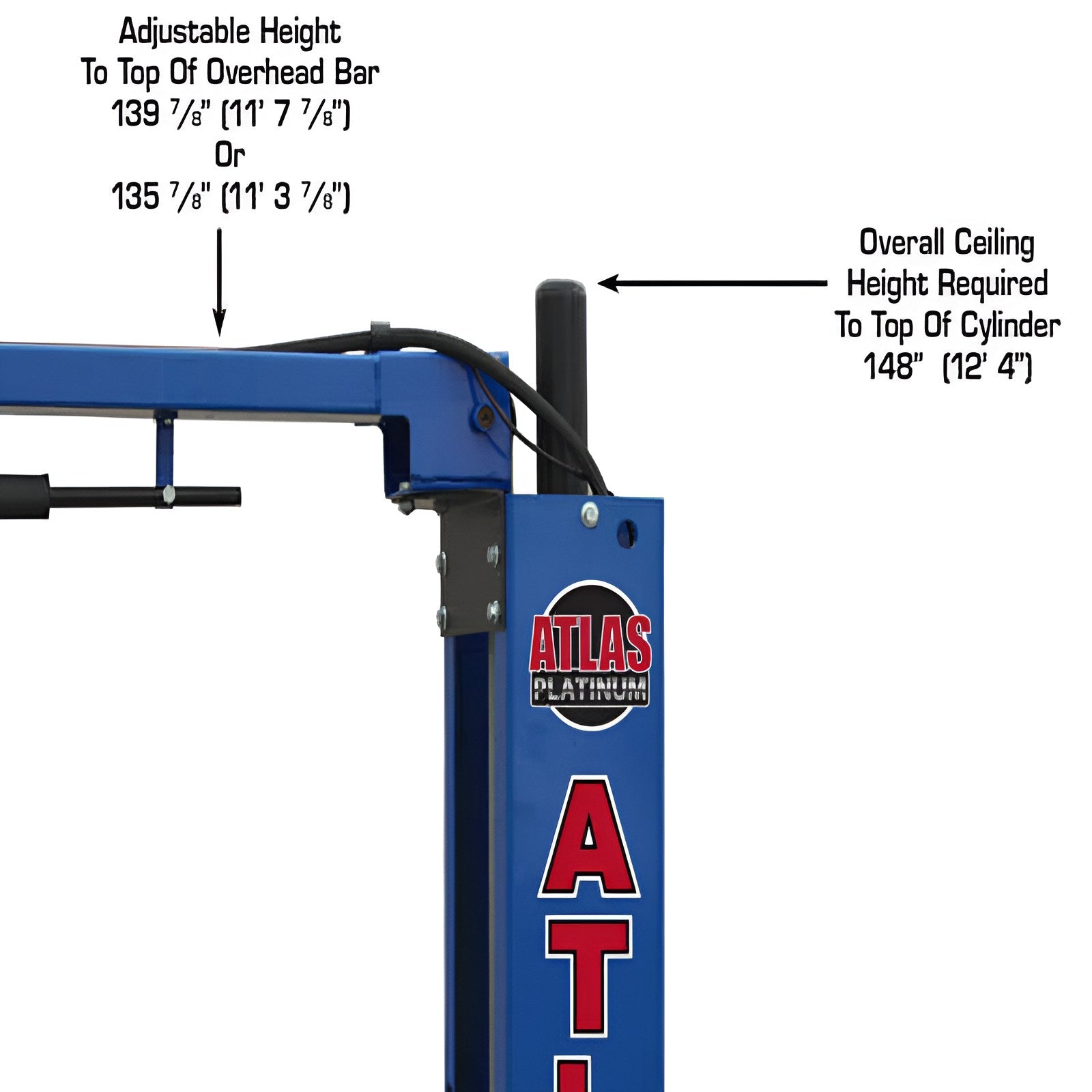

• Overall Height
  • Standard Version: 135 7/8" (11' 3 7/8”)

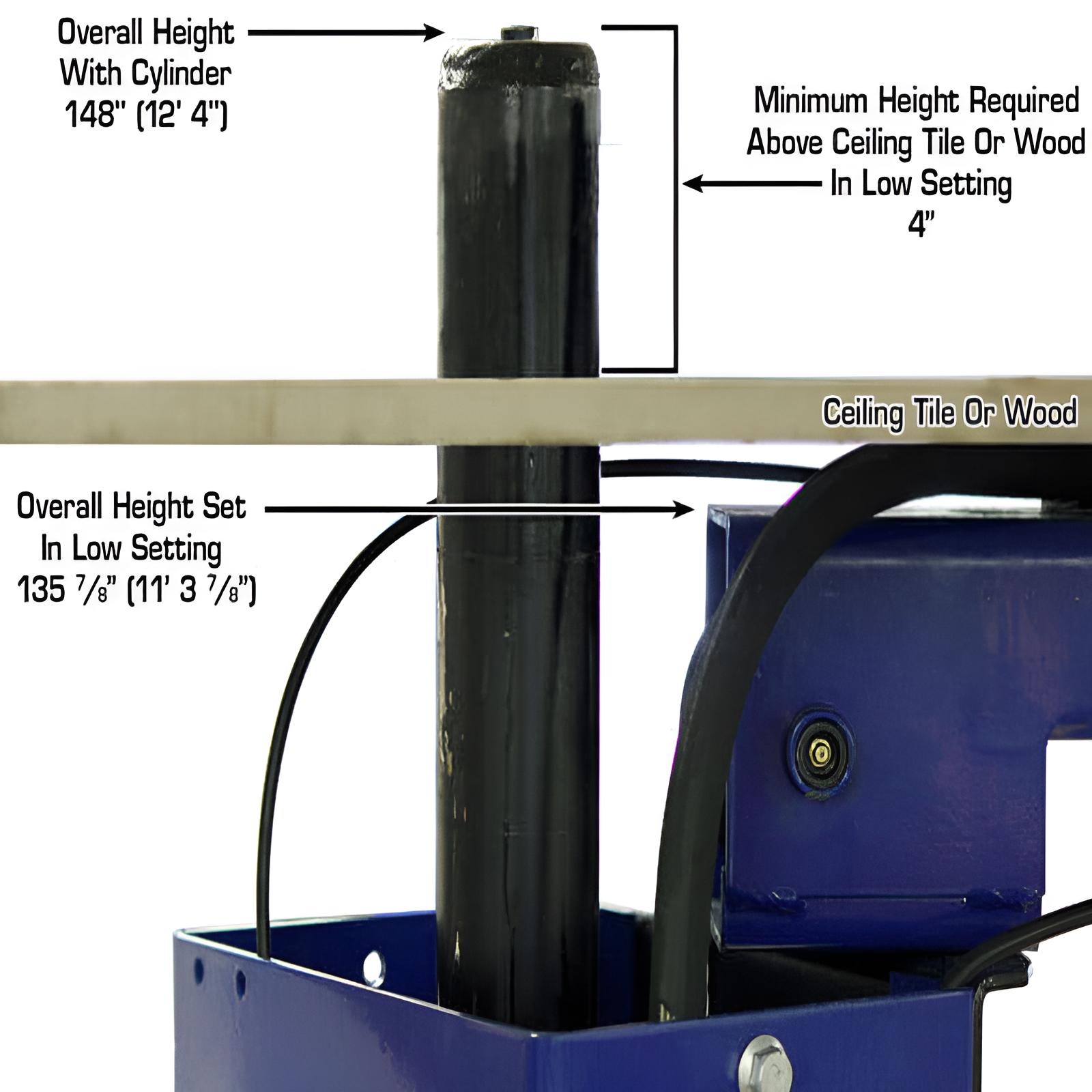

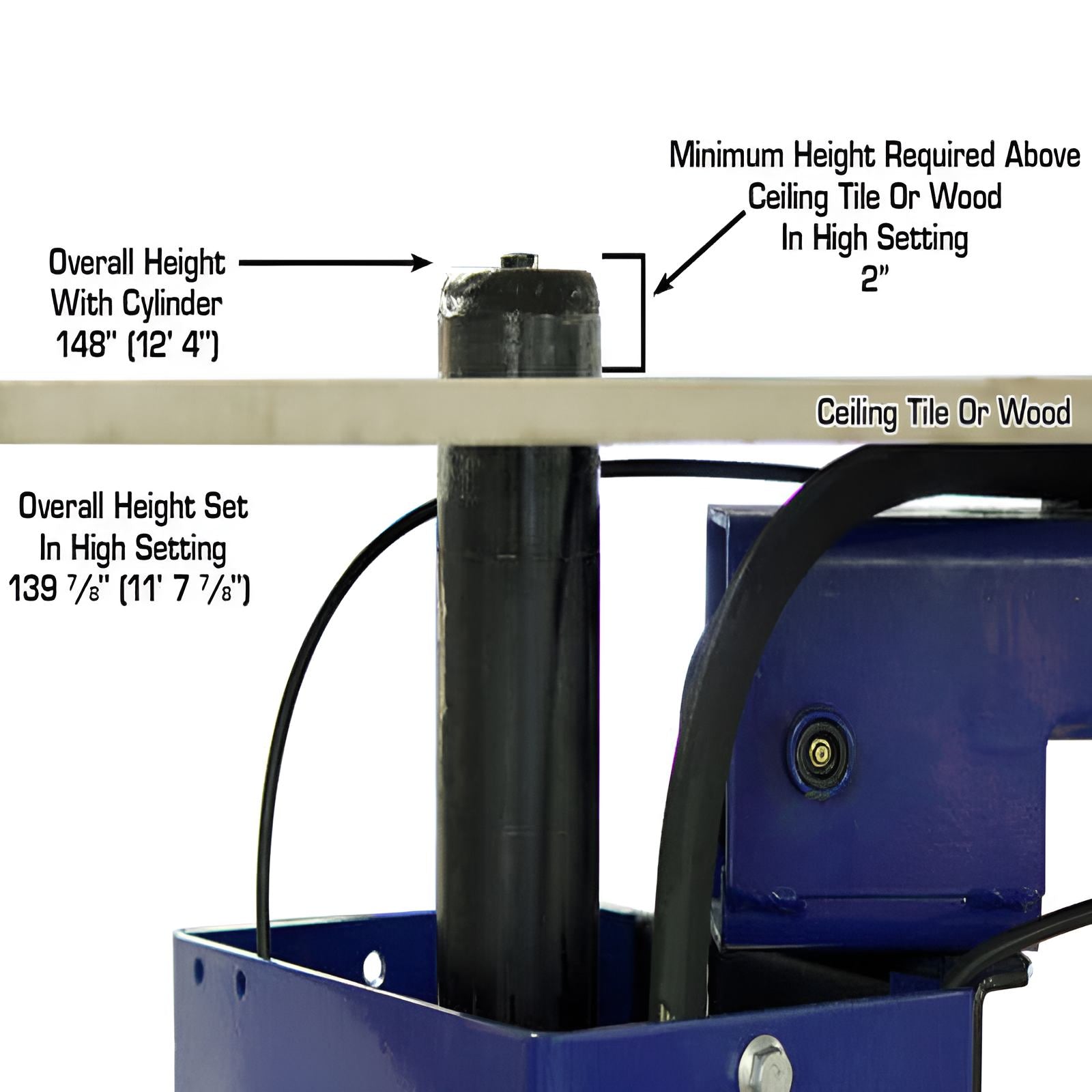

  • Extended Version 139 7/8” (11' 7 7/8”) ‐ (CYLINDER EXTENDS TO 12' 4”)
• Overall Floor Width:

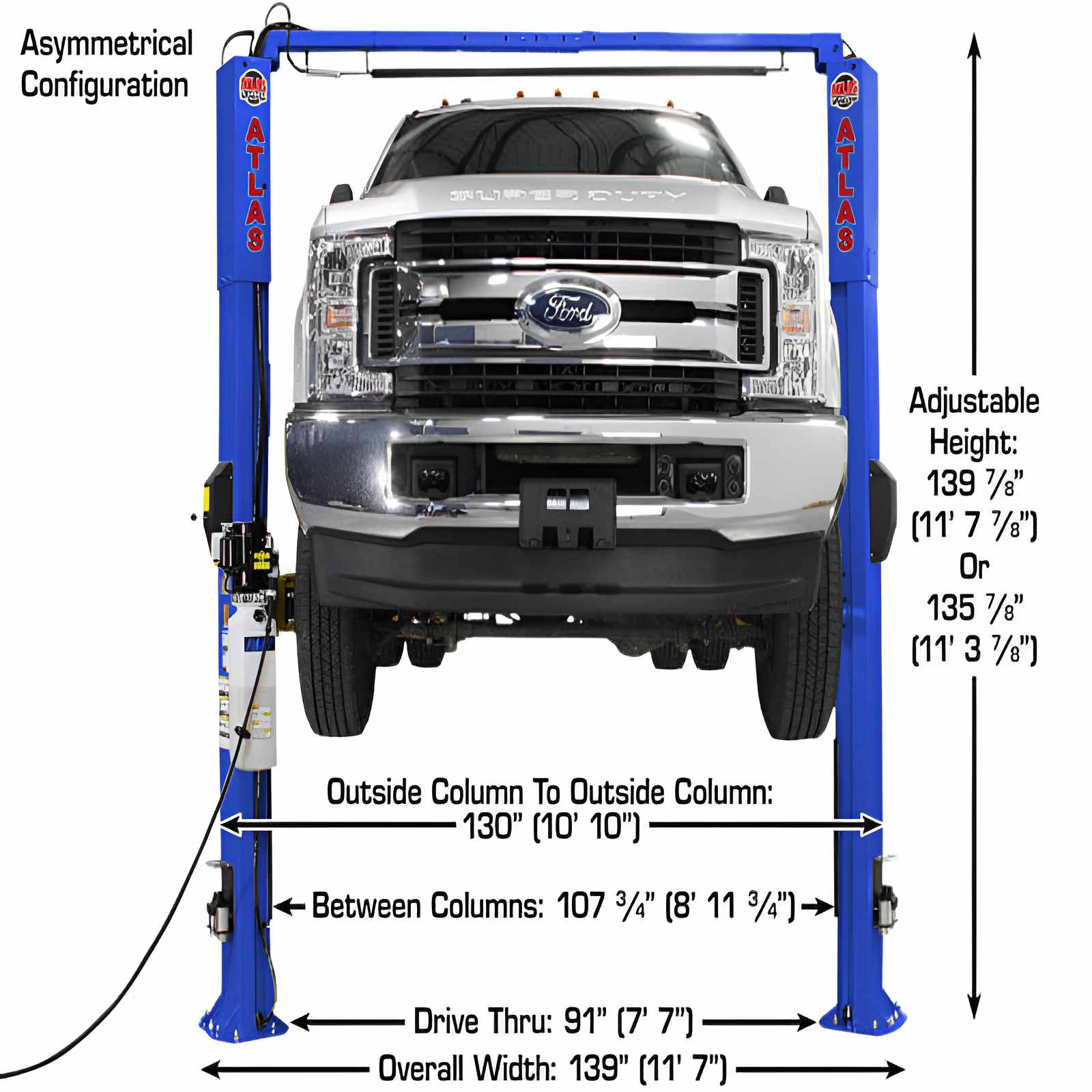

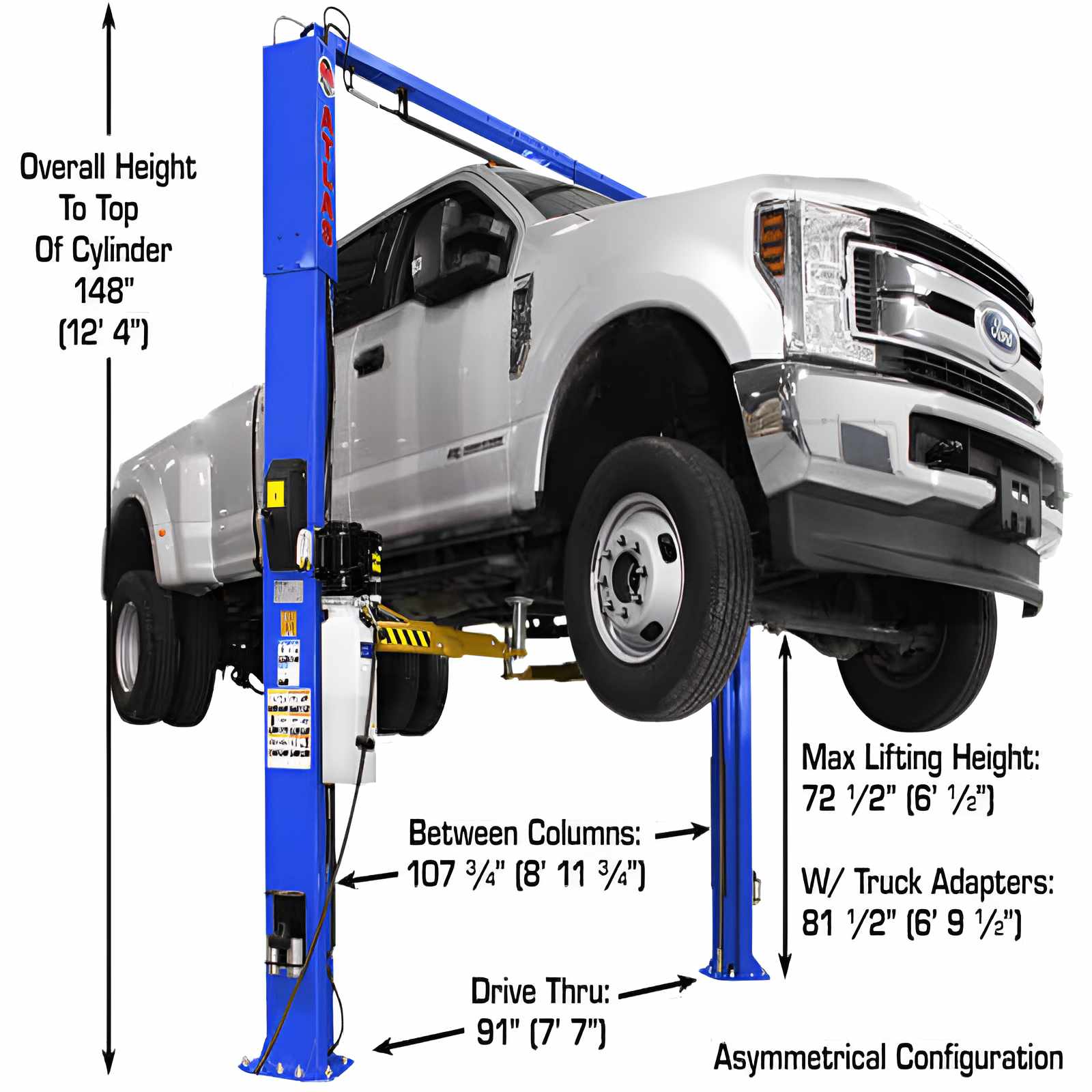

  • Asymmetric Layout: 139" (11' 7”) - See Image Below

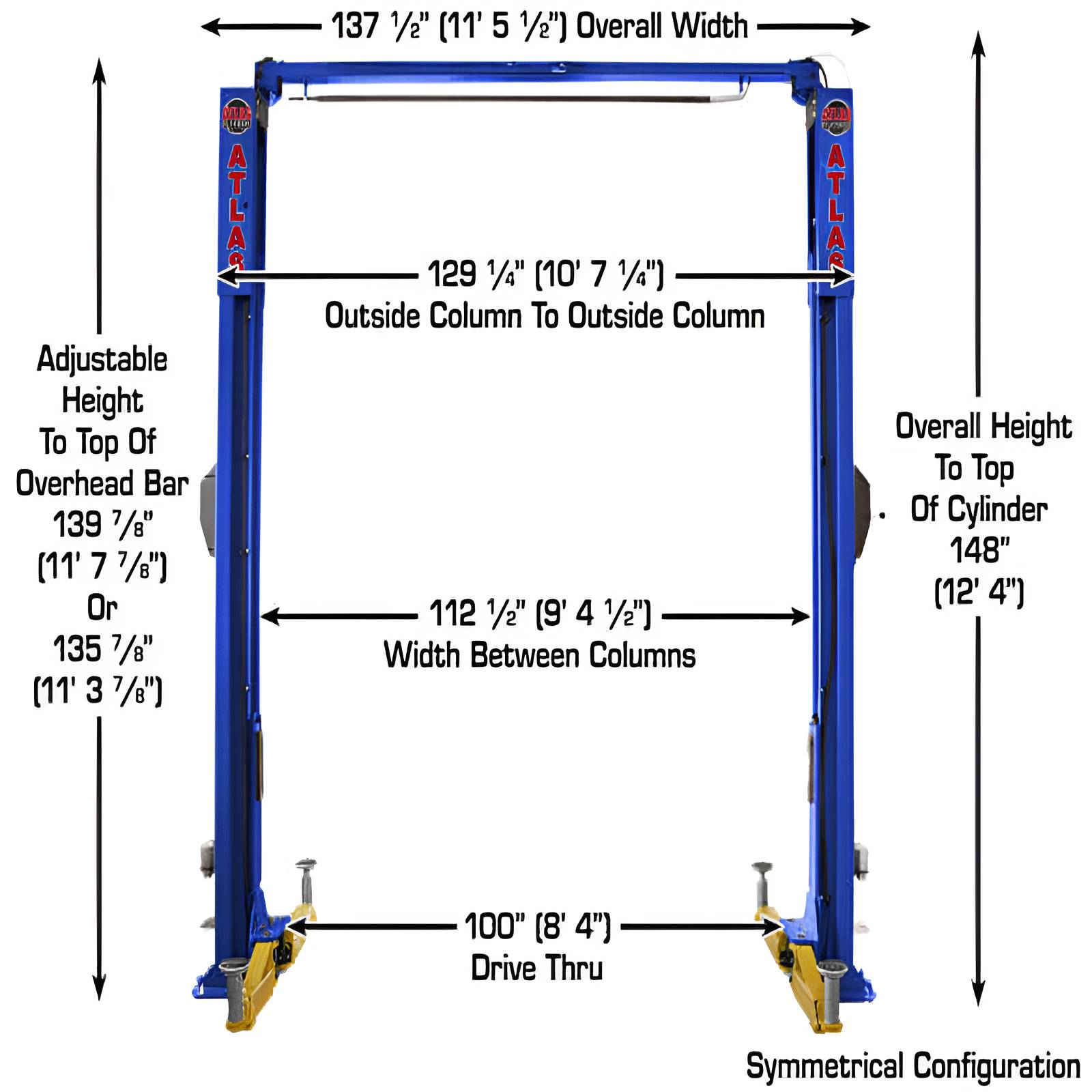

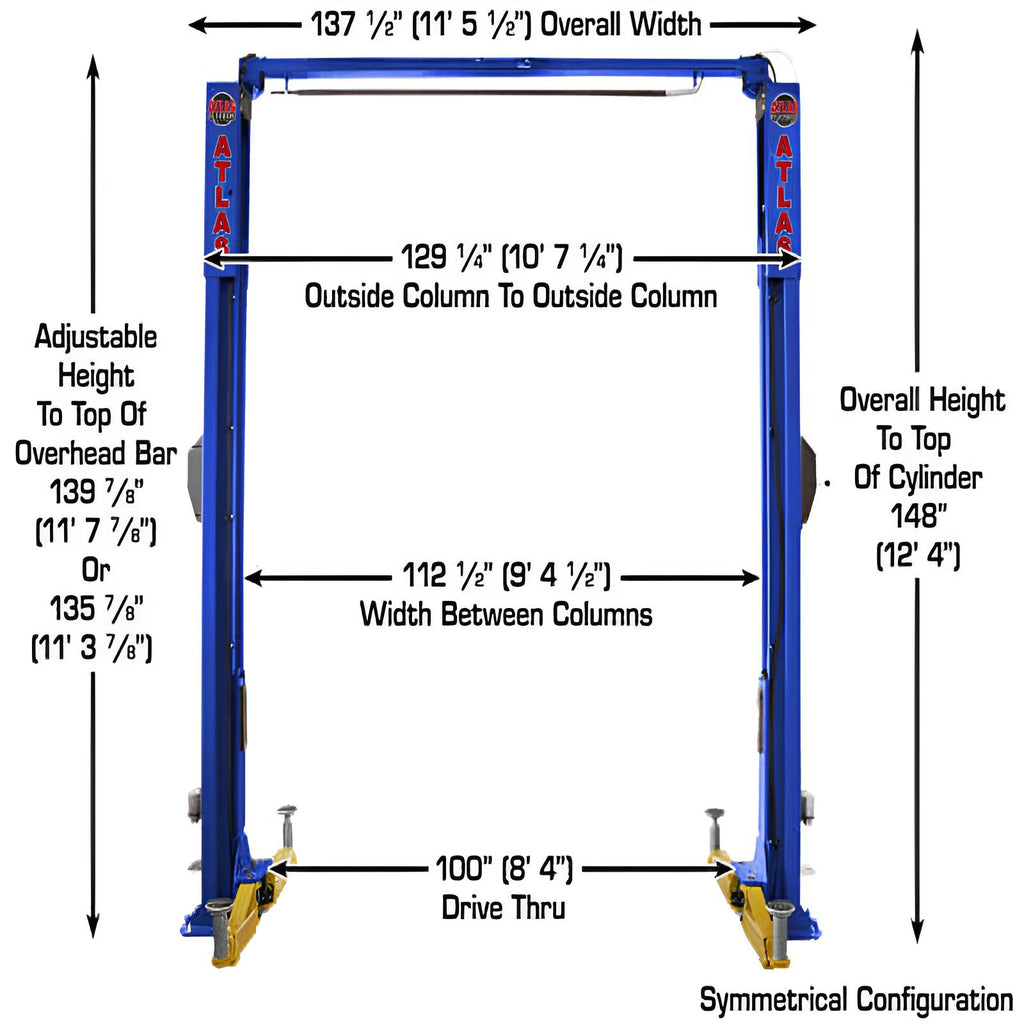

  • Symmetric Layout: 137 1/2” (11' 5 1/2”)  - See Image Below
• Outside Column to Outside Column
  • Asymmetric: 130" (10' 10") - See Image Below
  • Symmetric: 129 1/4” (10' 9 1/4") - See Image Below
• Maximum Lift Height (Without Adapters) 72 1/2"
• Maximum Lift Height (With Adapters) 81 1/2"
• Minimum Arm Height 4"
• Inside Column:
  • Asymmetric: 107 3/4” (8' 11 3/4”) - See Image Below
  • Symmetric:  112 1/2" (9' 4 1/2") - See Image Below
• Drive Thru
  • Asymmetric: 91” - See Image Below
  • Symmetric: 99 1/2” - See Image Below
• Column Size 7" x 10 1/4"
• Column Thickness of Steel 6mm
• Base Of Lift 15" x 18"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)

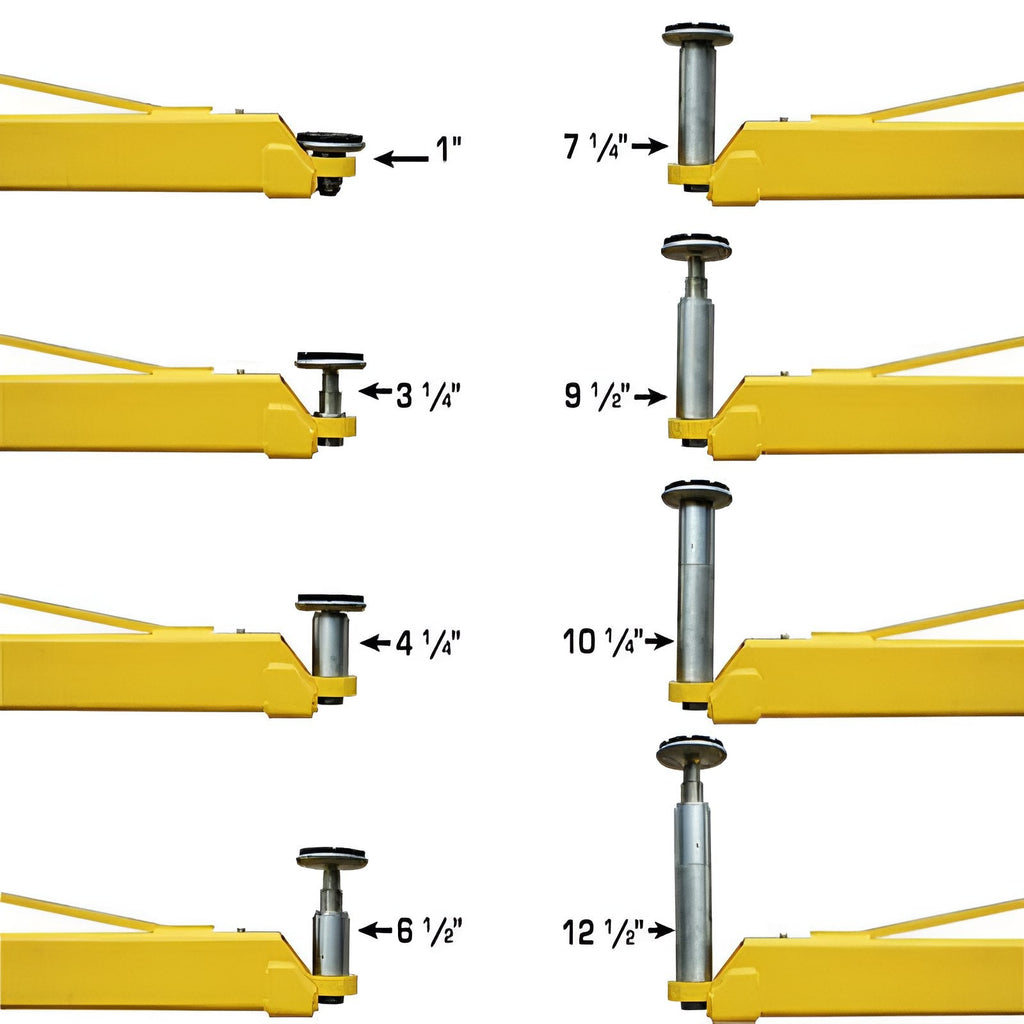

• Adapter Heights 4 Each 3”, 6”
• Arm Hole/Adapter Peg Size 2”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
• Shipping Dimension: 115" Long x 22-1/2" Tall x 38" Wide - 1,850lbs

Atlas 10,000 lb 2 Post Lift Special Features:

• ALI Certified
• Extra Column Strength with Double "S" Column Design
• Overhead, Open Floor Design

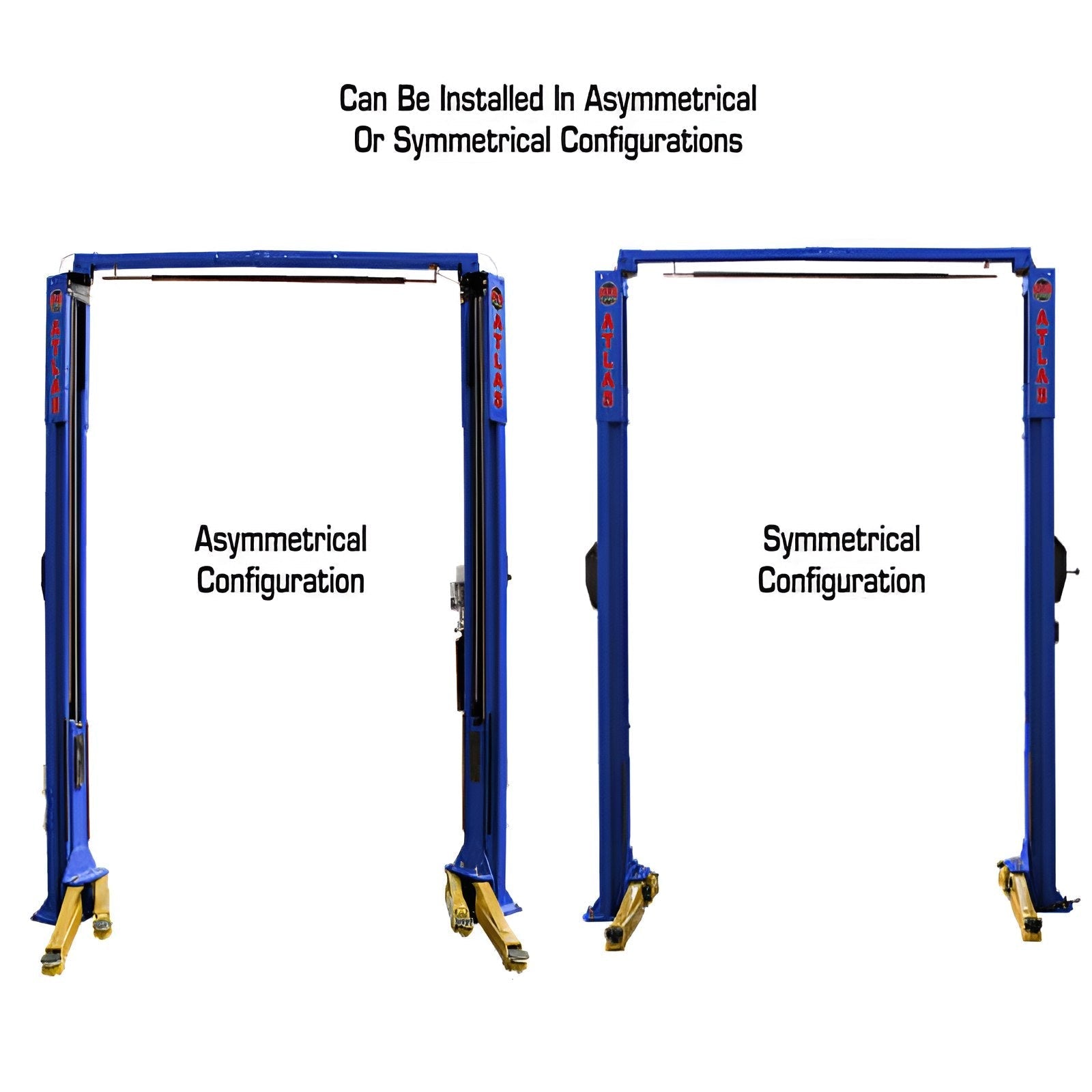

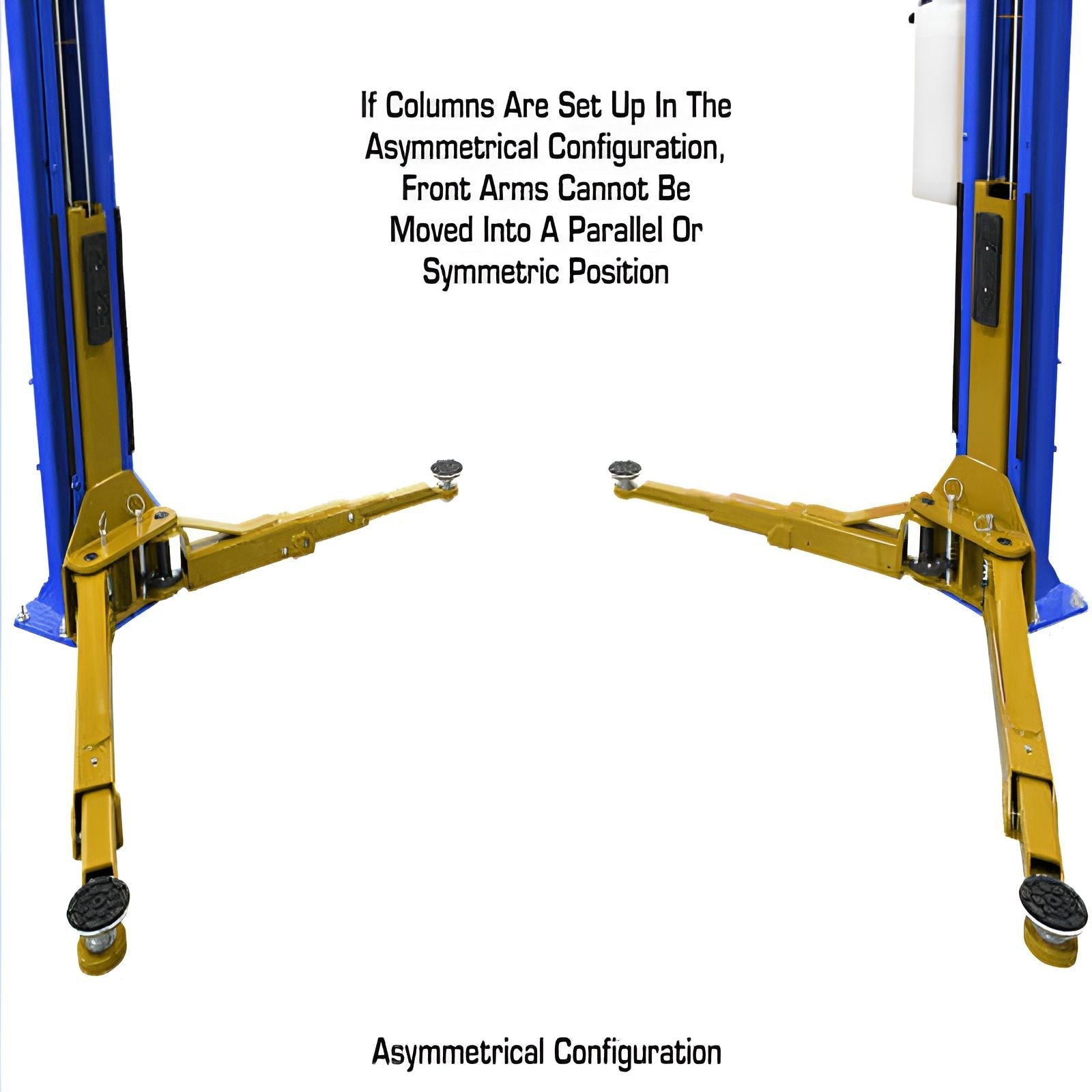

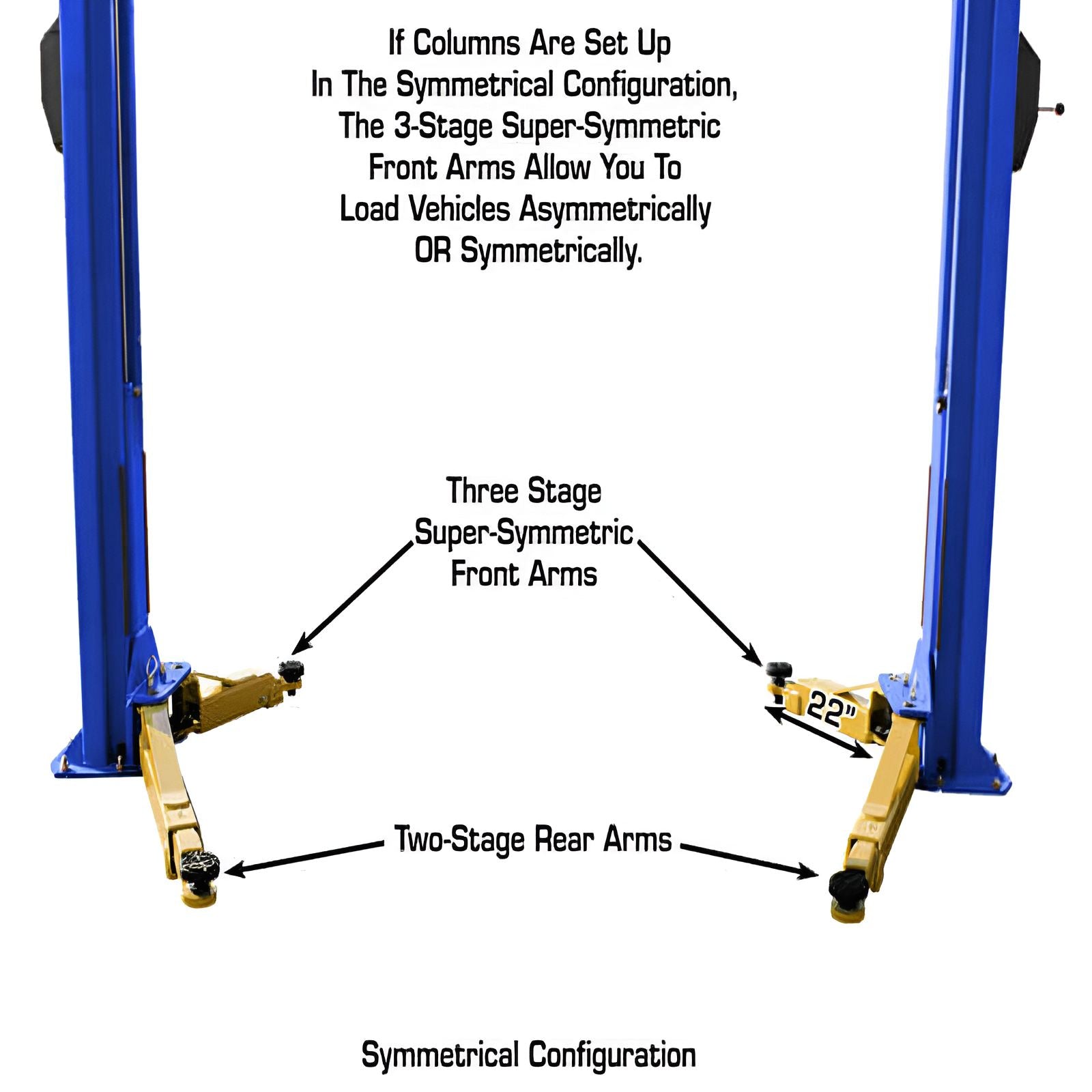

• Can be installed as Asymmetric or Symmetric

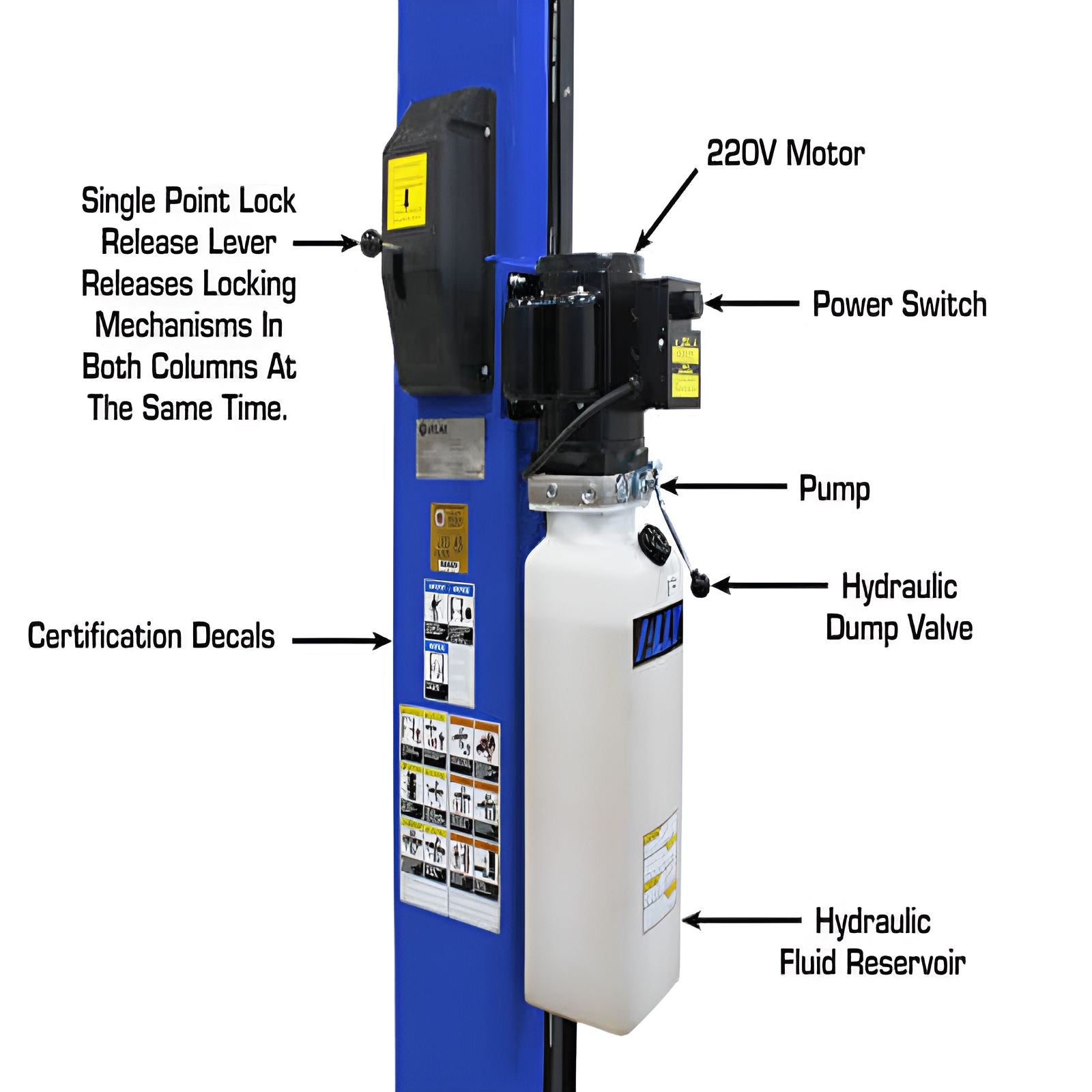

• Lock Release: Single Point
• Pads on Carriage
• Powder Coat Finish
• Secondary Lock System
• Warranty: 5 year Structural; 2 year Hydraulic; 2 year Power Unit ‐ Parts Only

• Unit Includes:
  • Mounting Hardware

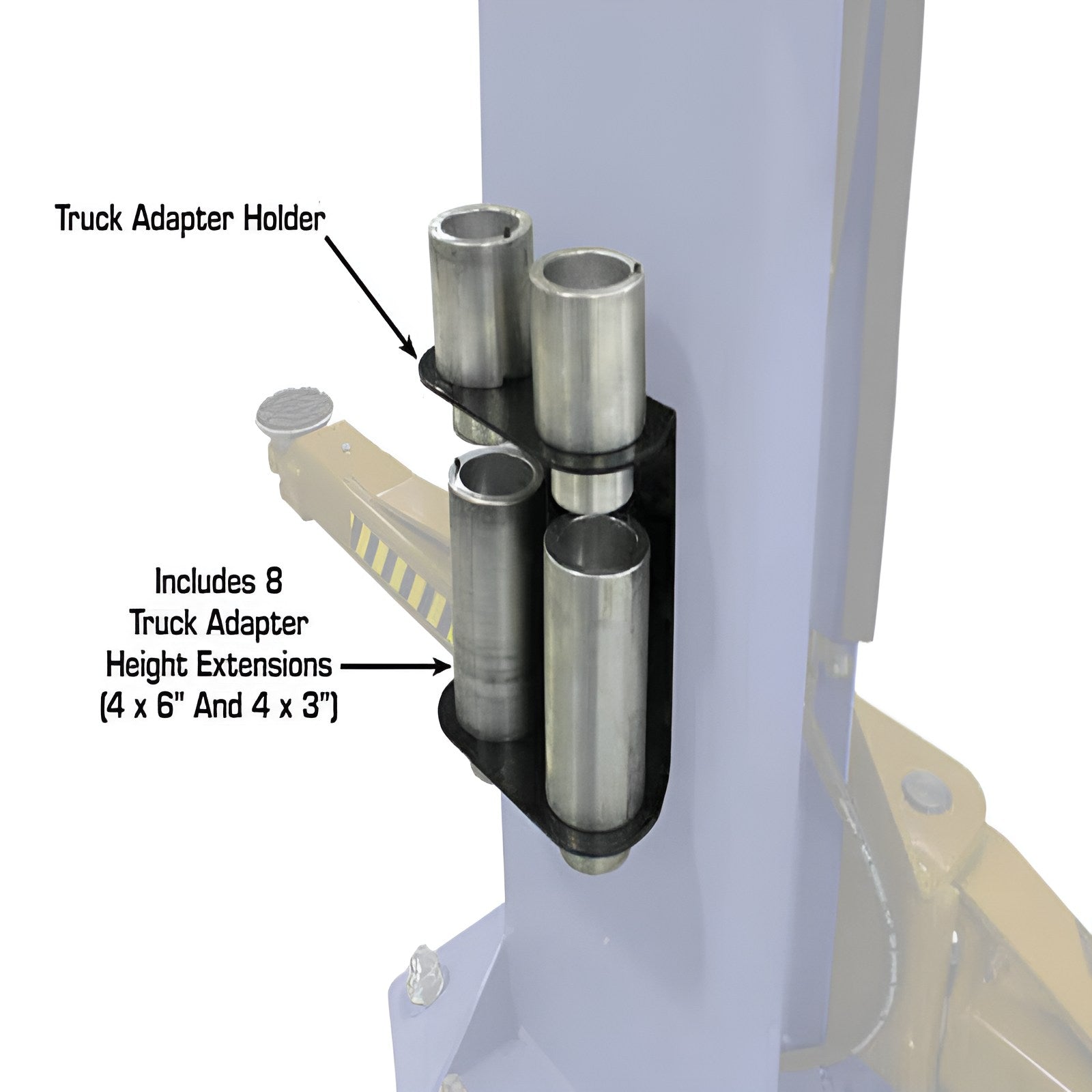

  • 8-piece Truck Adapter Set

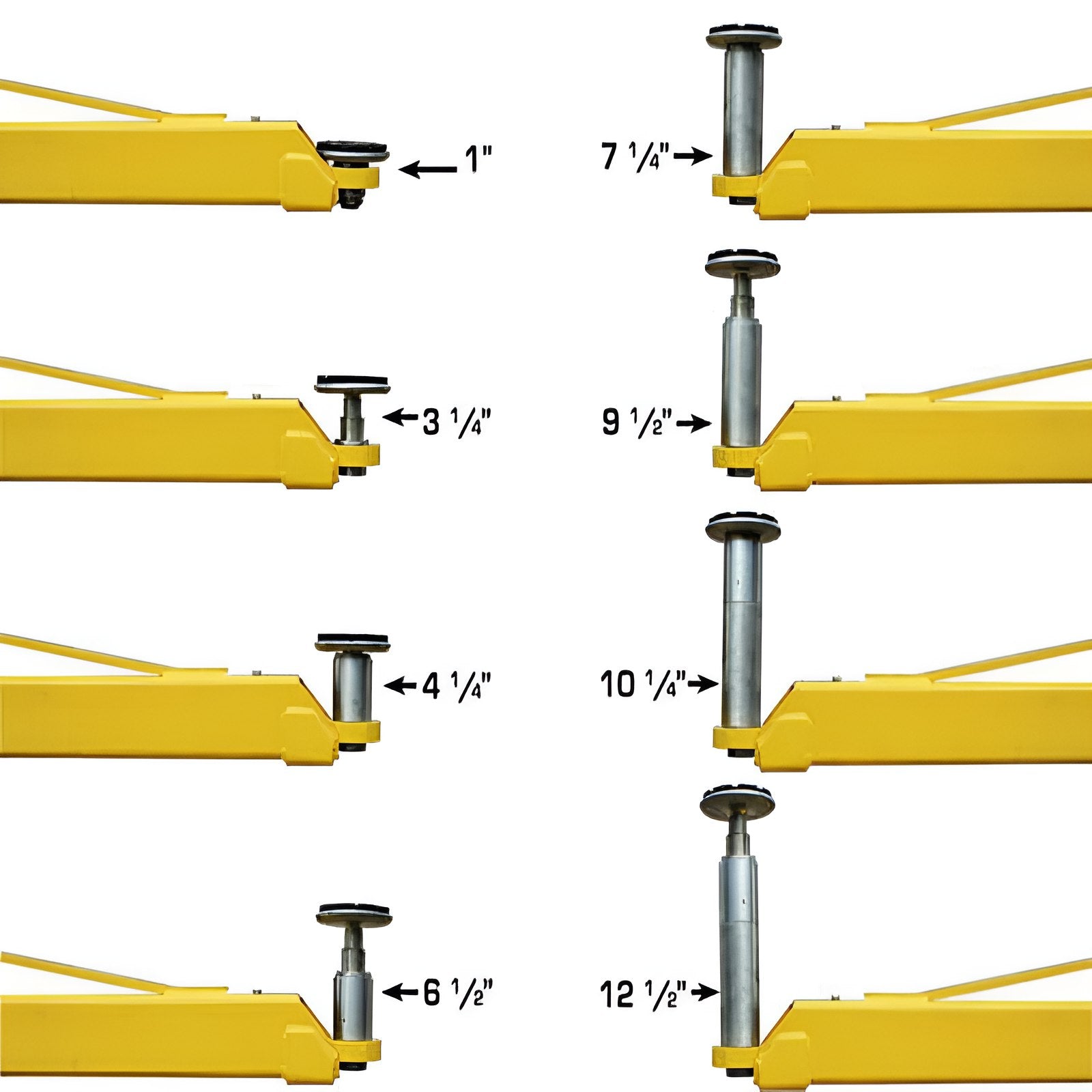

  • Double Screw-up Adapters
• Optional Item (Sold Separately)
  • Height Extension Kit for PVL-10 Lift - ATEAP-Z23A-00H1 (Adds 24")
  • Frame Adapters - Great for SUV's & Trucks: Part No. ATEATTDP-XSZ-7-6100
