10APX 10,000lb 2 Post Lift by BendPak

Is your current lift struggling to keep up with the heavier loads of modern vehicles? Are you tired of lifts that lack the flexibility to handle everything from high-roof cargo vans to electric vehicles (EVs)? When your shop’s lifting equipment can’t keep up with the demands of bigger, bulkier, and more tech-heavy vehicles, productivity plummets. Vehicles that are too heavy or hard to lift mean longer service times, frustration, and potentially even damage to your equipment.

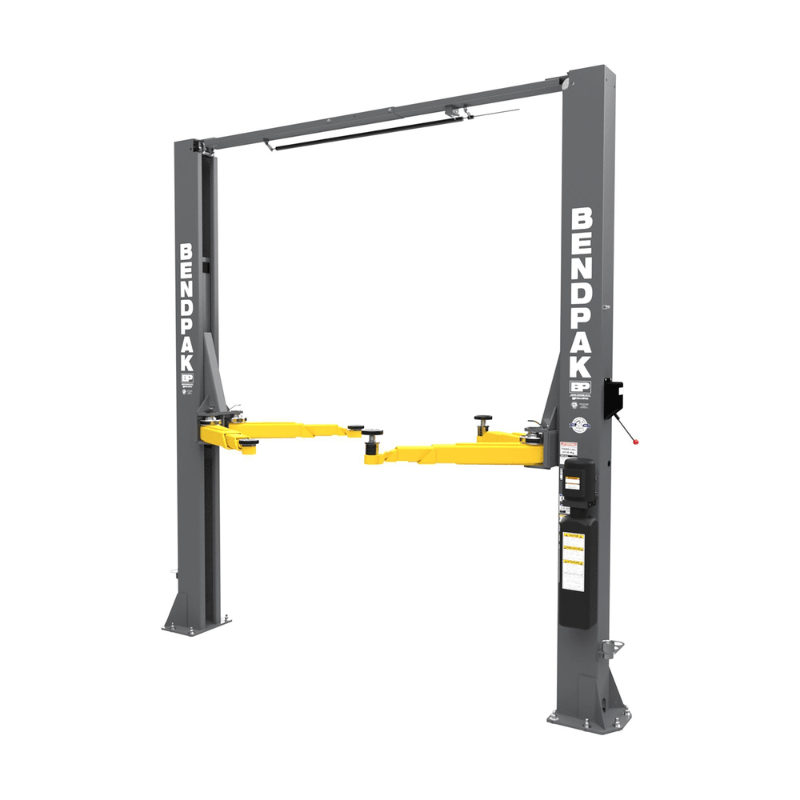

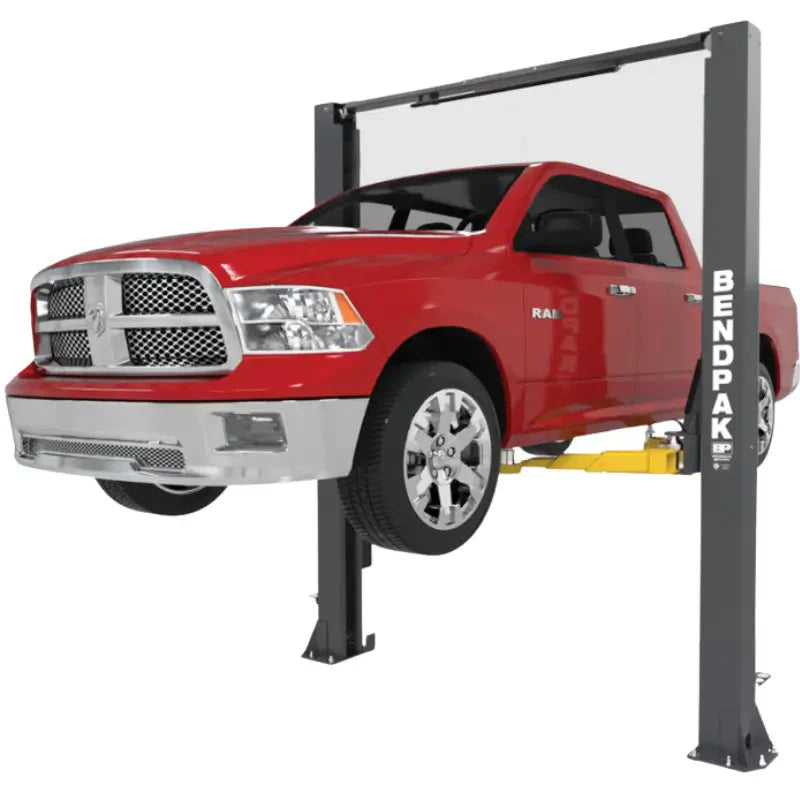

Enter the BendPak 10APX 10,000-lb. Two-Post Lift. Designed to handle everything from EVs to high-roof cargo vans, this beast comes with a 79.5-inch lifting height and a solid 10,000-lb. capacity. With features like Low-Pro arms, Bi-Metric swing arms, and an automatic swing arm restraint system, the 10APX combines precision and safety, giving you all the power you need without the stress. Say goodbye to lift limitations and hello to a smoother, more efficient repair shop. Ready to lift your shop’s capabilities? The 10APX is waiting.

10APX BendPak Specification

  • Lifting Capacity: 10,000 lbs

  • Max Capacity / Front Axle: 5,000 lbs

  • Max Capacity / Rear Axle: 5,000 lbs

  • Rise: 75.5"

  • Rise + Pad Only: 79.5"

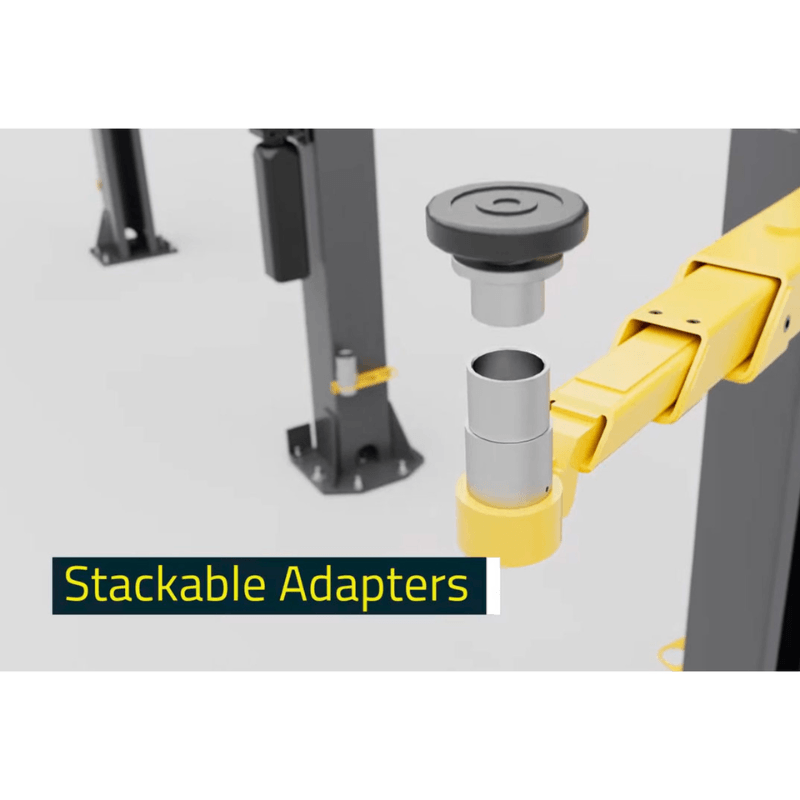

  • Rise + Pad + 63 mm Adapter: 89"

  • Min. Height + Pad: 4"

  • Time to Full Rise: 45 seconds

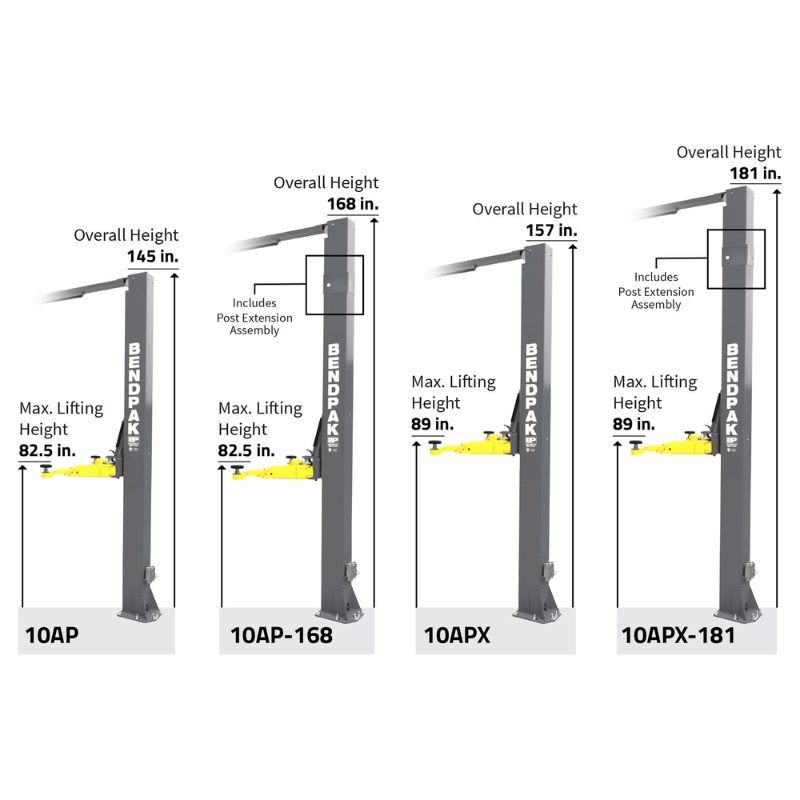

  • Overall Height: 157"

  • Overall Width: 135" or 145"

  • Outside Columns: 127.5" or 137.5"

  • Inside Columns: 108.5" or 118.5"

  • Drive-Thru Clearance: 92" or 102"

  • Front Arm Reach: 24.5" – 50"

  • Rear Arm Reach: 32" – 59.25"

  • Screw Pad Adjustment: 2"

  • Max Load Per Arm: 2,500 lbs

  • Motor: 220 VAC, 60 Hz, 1 Phase

  • Noise: <70 dB

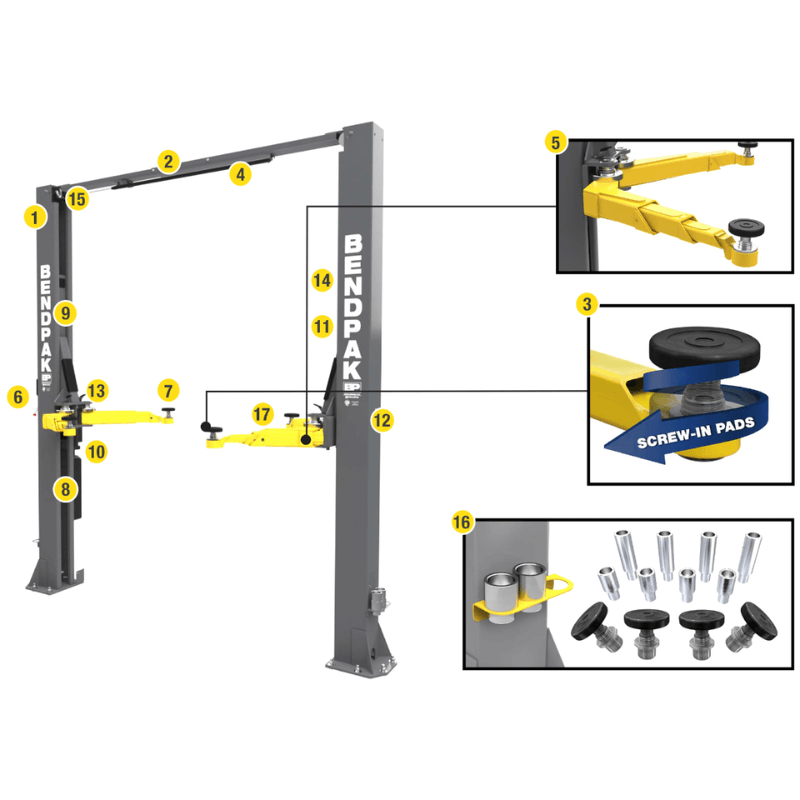

BendPak 2 Post Lift 10000 2 Post Lift Special Features

  • Durable powder coat finish

  • Expandable top beam accommodates wide or narrow drive-thru configurations

  • Double-telescoping screw pads offer increased versatility

  • Padded overhead safety shutoff bar

  • Exclusive Bi-Metric™ arm design for versatile arm positioning

  • Single-point safety release

  • Drop-end arms provide a lower pad height

  • Dual hydraulic direct-drive cylinders

  • Oversized 53" & 59" tall carriages for superior strength and durability

  • Electric / hydraulic HVLP power system

  • Self-lubricating dura-glide UHMW polyethylene bearing system

  • Safety locks in each column spaced every 3"

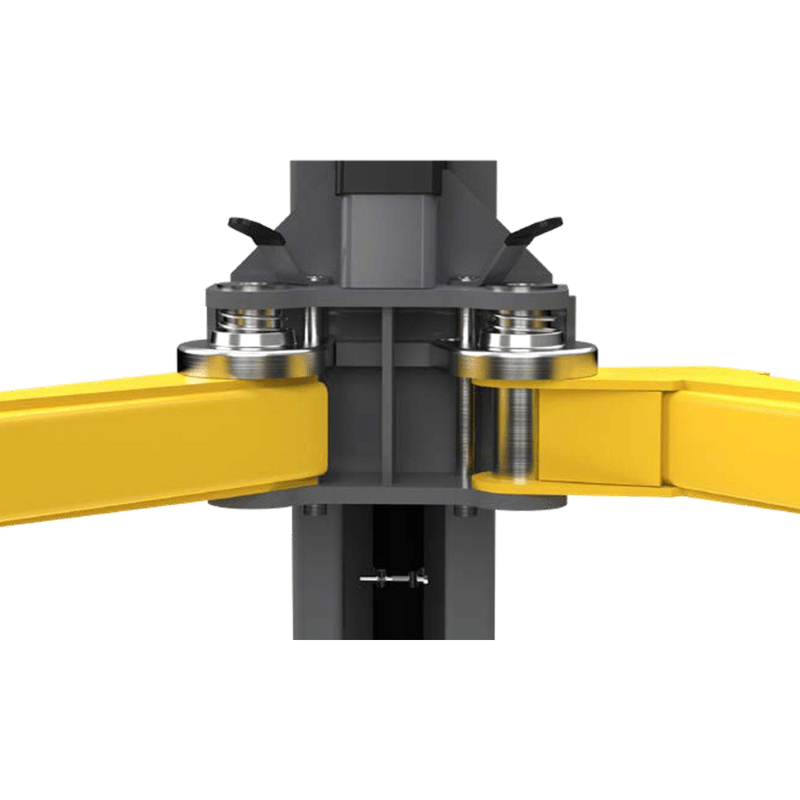

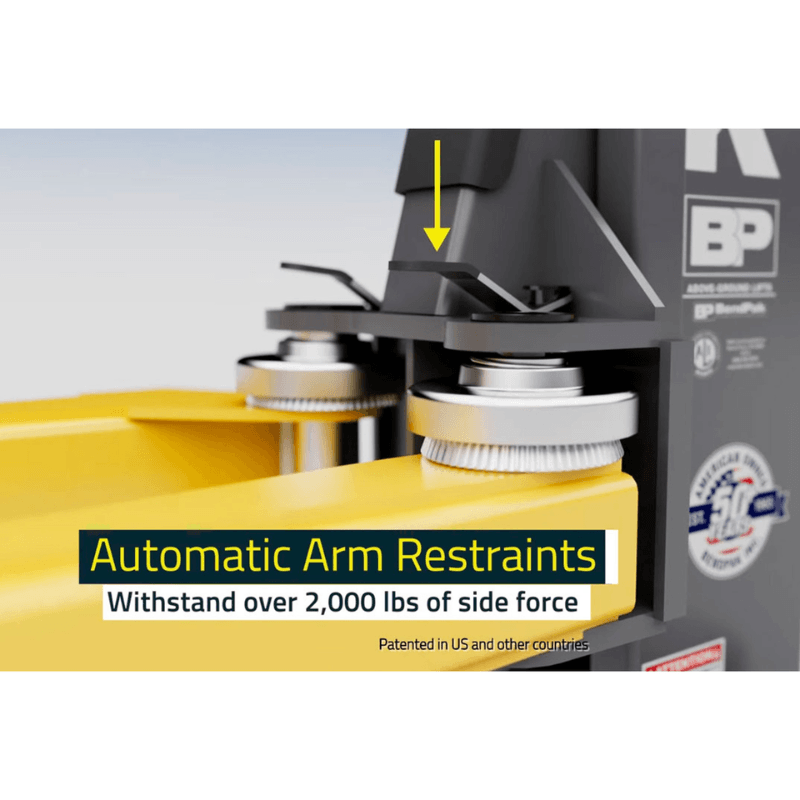

  • Automatic arm restraints withstand over 2,000 lbs of side force

  • 3/8" high-strength multi-strand galvanized steel equalizing cable

  • Oversized cable sheave diameter reduces cable fatigue

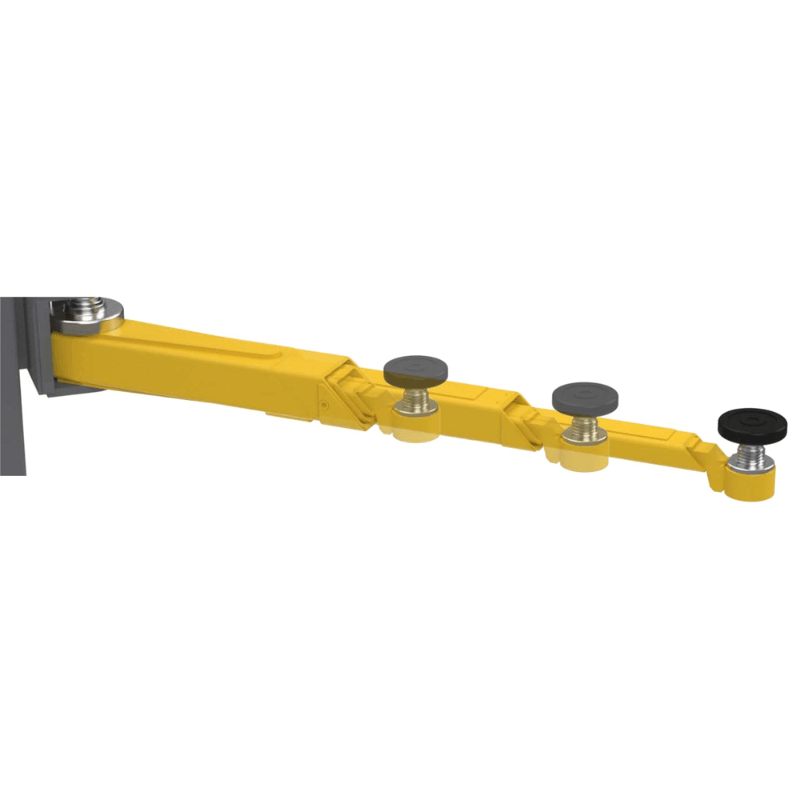

  • Four triple-telescoping arms

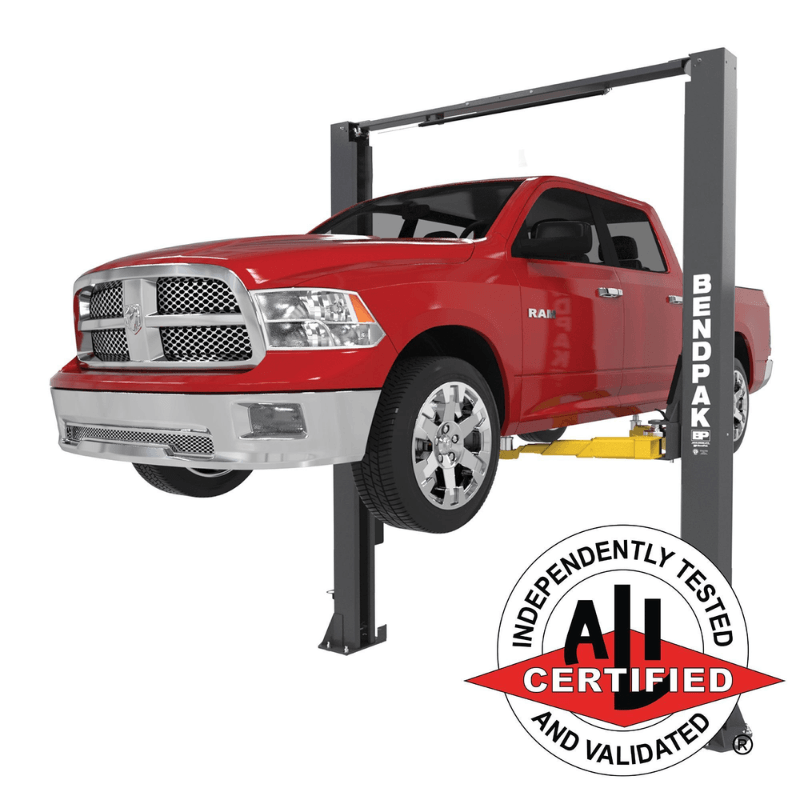

  • ALI certified

  • Warranty
    • 5 Year - Lift Structure
    • 2 year - Hydraulic Unit & Power Unit
    • 1 Year - Electrical and Operating Components
    • Reasonable labor costs covered for first 12 months

BendPak 10APX Manual



Warehouse Pickup Locations: $400 Pickup Discount Available - Contact us for more information!

  • Santa Paula, CA 93060
  • Theodore, AL 36582
