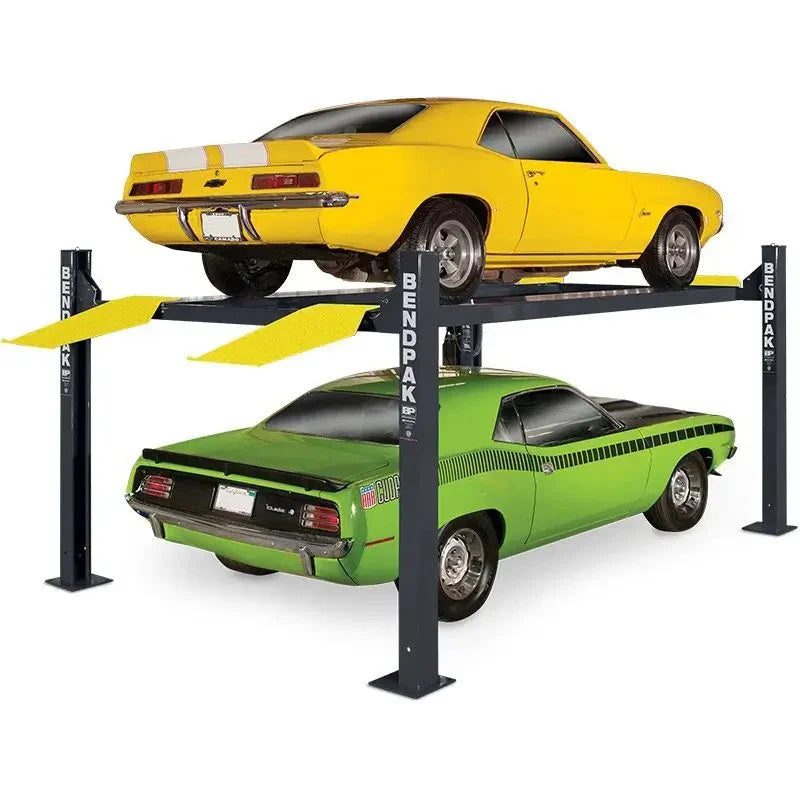

HD-9XL 9,000lb 4 Post Lift by BendPak
Got a garage full of dreams but nowhere to lift them? Meet the BendPak HD-9XL, the four-post lift that’s as bold as your automotive ambitions. With a 9,000-lb. lifting capacity and extended runways measuring a massive 182.25 inches, this lift is perfect for your long-wheelbase classics, rugged trucks, or oversized SUVs. It’s like giving your garage a stretch limo—it makes room for the big ones without cramping your style.
Built tougher than your last coffee-fueled wrenching session, the HD-9XL features aircraft-grade cables that could hold up a superhero (640% of the lift's capacity, to be exact) and smooth-operating, self-lubricating rollers. The low-profile design keeps things sleek, while safety locks and a pneumatic release add a layer of worry-free operation. Whether you're storing, servicing, or showing off your ride, the HD-9XL transforms your space into a haven for heavy metal.
HD 9XL Specification
-
Total Lifting Capacity: 9,000 lbs
-
Max Capacity / Front Axle: 4,500 lbs
-
Max Capacity / Rear Axle: 4,500 lbs
-
Min. Runway Height: 5"
-
Max. Rise: 70"
-
Max. Lifting Height: 75"
-
Time to Full Rise: 50 seconds
-
Overall Width: 110.25"
-
Outside Length: 198"
-
Overall Length: 224.5"
-
Height of Columns: 88"
-
Width Between Columns: 100.25"
-
Drive-Thru Clearance: 86.65"
-
Runway Width: 19"
-
Runway Length: 182.25"
-
Width Between Runways: 35" or 41"
-
Runway Centerline: 56.75" or 63"
-
Outside Edge of Runways: 75.75" or 82"
-
Minimum Wheelbase – Rated Capacity: 135"
-
Minimum Wheelbase – 75% Capacity: 115"
-
Minimum Wheelbase – 50% Capacity: 95"
-
Minimum Wheelbase – 25% Capacity: 80"
-
Locking Positions: 14
-
Lock Spacing: Every 4"
-
Motor: 220 VAC / 60 Hz / 1 Ph
-
Noise Level: 45 dB
-
Shipping Weight: 1,696 lbs
-
Shipping Dimensions: 192" x 22" x 28"
HD 9XL 9,000lb 4 Post Lift Special Features
-
9,000-lb. maximum lifting capacity
-
CE Approved and Certified (meets or exceeds EN-1493 standards)
-
Wide drive-thru with standard lift height and long runways
-
Electric / hydraulic power system
-
Internal “Anti-Sway” slider blocks in each column
-
Heavy-duty 3/8" aircraft cable
-
Multi-position safety locks in each column
-
Ramps feature non-skid surface
-
Runways include rail-kit for optional accessories
-
Single hydraulic cylinder mounted underneath runway
-
Oversized self-lubricating cable rollers
-
Rugged 1.25" roller axles
-
Adjustable lock ladders
-
Push-button pneumatic safety release
-
Warranty
- 5 Year - Lift Structure
- 2 year - Hydraulic Unit & Power Unit
- 1 Year - Electrical and Operating Components
- *Reasonable labor costs covered for first 12 months
BendPak HD-9XL Manual
HD-9XL BendPak Optional Items (Sold Separately)
- Caster Kit
- Drip Trays
- Telescoping Jack Tray (JP45)
- Aluminum Deck
Warehouse Pickup Locations: $400 Pickup Discount Available - Contact us for more information!
- Santa Paula, CA 93060
- Theodore, AL 36582
A - Min. Runway Height: 4.5" (114 mm)
B - Max. Rise: 70" (1,778 mm)
C - Max. Lifting Height: 74.5" (1,892 mm)
D - Overall Width: 110.25" (2,800 mm)
E - Outside Length: 198" (5,029 mm)
F - Overall Length: 224" (5,690 mm)
G - Height of Columns: 88" (2,235 mm)
H - Width Between Columns: 100.25" (2,555 mm)
I - Drive-Thru Clearance: 86.5" (2,197 mm)
J - Runway Width: 19" (483 mm)
K - Length of Runways: 188" (4,775 mm)
L - Width Between Runways: 37.5" (952 mm) - 44.375" (1,127 mm)
M - Runway Centerline: 56.5" (1,435 mm) - 63.375" (1,610 mm)
N - Outside Edge of Runways: 75.5" (1,918 mm) - 82.375" (2,092 mm)
