BendPak 12APX Lift

Dealing with a lift that can’t handle the heavy stuff or struggles with low-profile vehicles? It’s frustrating to waste time and energy on outdated tools that make every job harder than it needs to be. Worse yet, flimsy construction and poor safety features could leave you regretting your equipment choice.

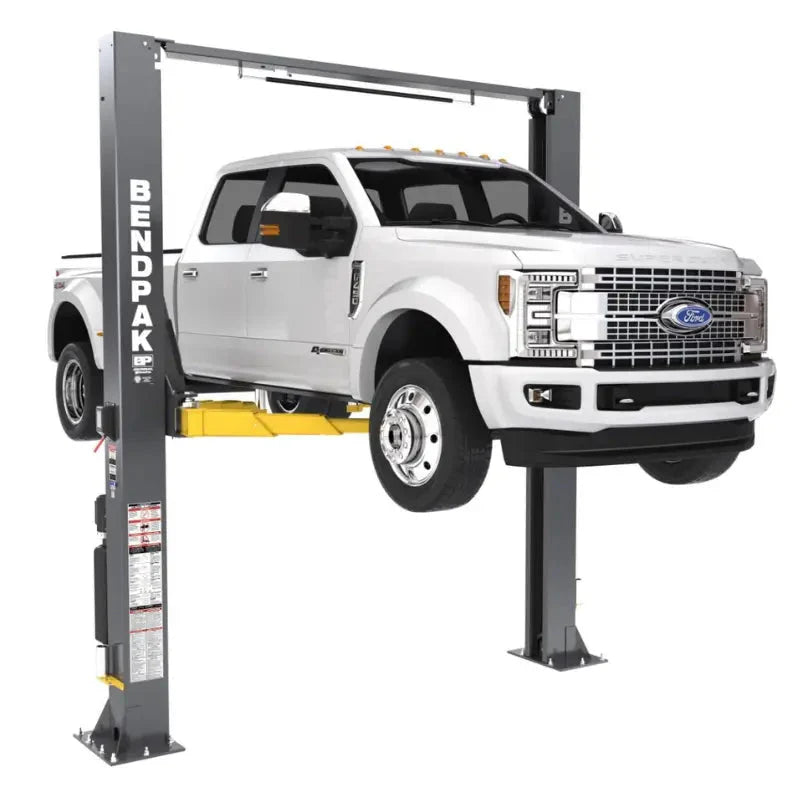

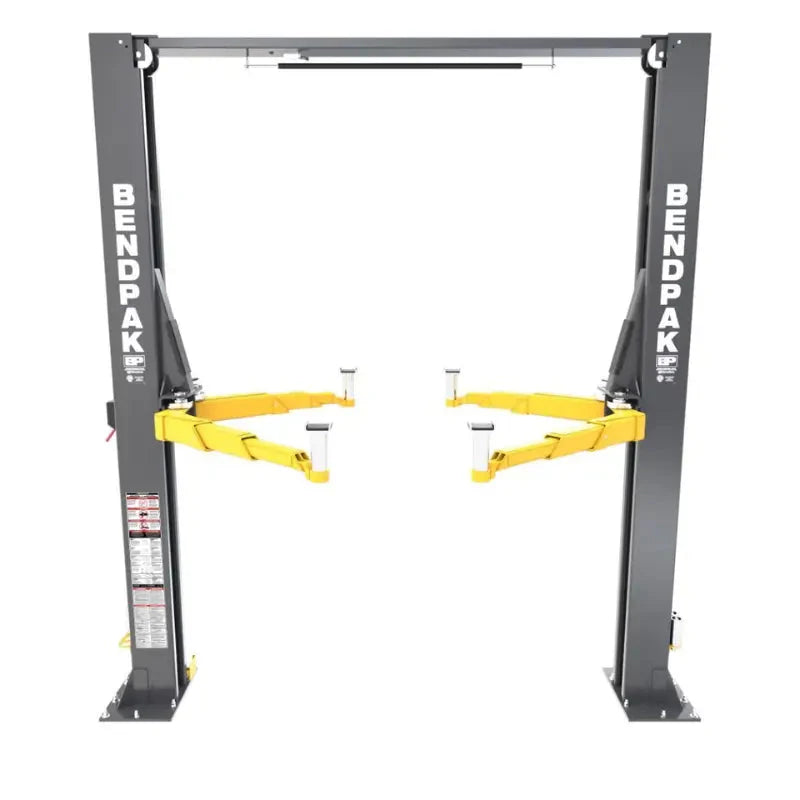

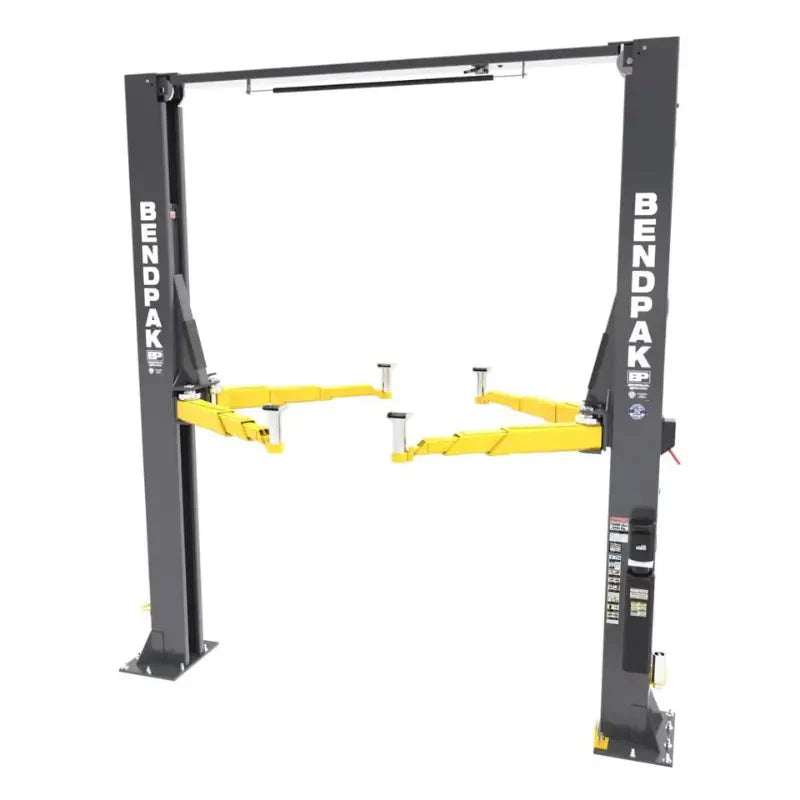

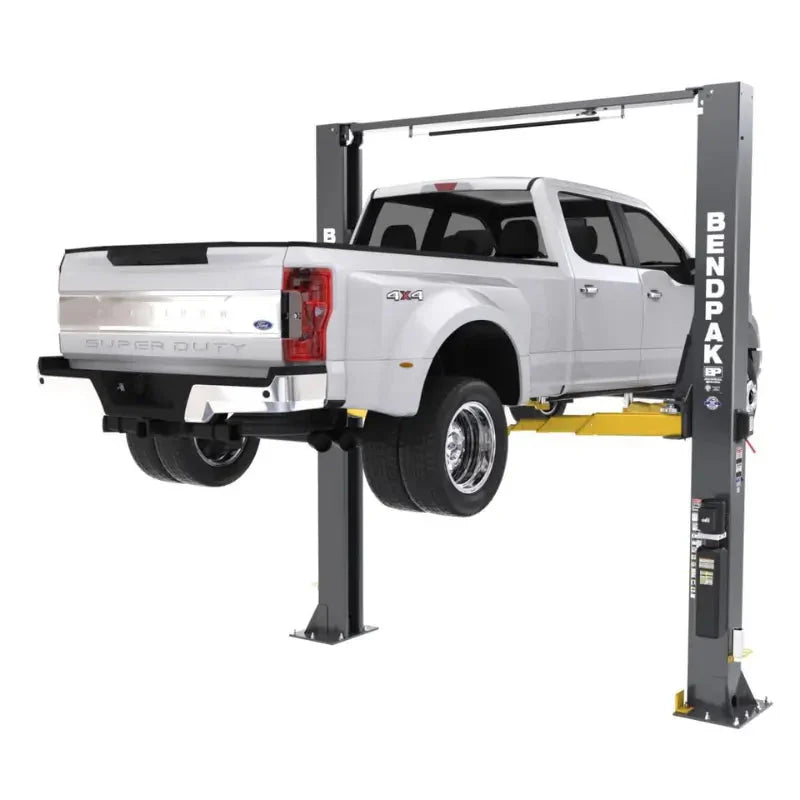

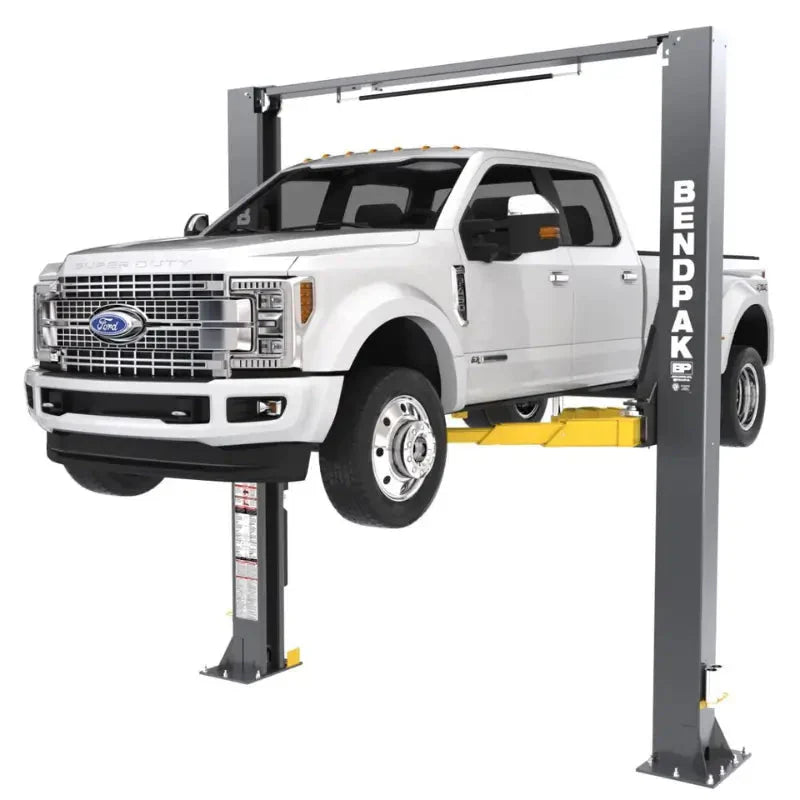

The BendPak 12APX is here to save your sanity. Built to lift a staggering 12,000 lbs, this powerhouse combines Low-Pro triple-telescoping arms with Bi-Metric swing arms to handle anything from sleek sports cars to oversized EVs with ease. Add in safety-critical features like the Automatic Swing Arm Restraint System (ASARS) and a patented lock system, and you’ve got the perfect blend of power, precision, an 82.5-inch lift height and peace of mind. Why struggle with mediocrity when the BendPak 12APX is ready to elevate your garage to the next level?

12APX Specification

• Max. Lifting Capacity: 12,000 lbs

• Max Load per Lift Arm: 3,000 lbs

• Max Rise: 75.75"

• Lifting Height w/ Pad down: 78.50"

• Max. Lifting Height w/ Pad up: 82.5"

• Minimum Height w/ Pad: 4"

• Overall Height: 169"

• Overall Width: 156"

• Width, Outside Posts: 143"

• Width, Inside Posts: 120"

• Drive-Thru Width: 103"

• Floor to Top Switch: 162.50"

• Front Arm Reach (min): 26"

• Rear Arm Reach (min): 29.5"

• Pad Adapters Total Height: 7.5"

• Time to Full Rise: ≈45 seconds

• Motor: 220 VAC, 60 Hz, 1 Phase

• Sound: <70 dB

12APX 12,000lb 2 Post Lift Special Features

• Durable powder coat finish

• Bi-Metric™ lifting

• Low-Pro™ triple-telescoping arms

• Adaptable design: symmetric or asymmetric

• Automatic Swing Arm Restraint System (ASARS)

• Double-telescoping screw pads

• Padded overhead safety shutoff bar

• Exclusive Bi-Metric™ arm design

• Single-point safety release

• Drop-end arms

• Dual hydraulic direct-drive cylinders

• Electric/hydraulic HVLP power system

• Self-lubricating dura-glide UHMW polyethylene bearing system

• Safety locks in each column

• Heavy-duty aircraft-quality equalizer cables

• Oversized cable sheave diameter

• Four triple-telescoping arms

• Accessories included:

  • 2.5" Medium Adapters (Set of 4)

  • 5" Tall Adapters (Set of 4)

  • Adapter Holders (Set of 2)

  • Drop-In Cradle Pads (Set of 4)

• Optional Accessories:

  • Quick-Fit Pinch-Weld Pucks (Set of 4)

  • Quick-Fit Pinch-Weld Pads (Set of 4)

  • Wide Frame Cradle Adapters (Set of 2)

  • 2" Low Adapter (Set of 4)

  • Steel Lift Pads (Set of 4)

  • Replacement Urethane Pads (Set of 4)

  • Screw Pads (Set of 4)

• Warranty
  • 5 Year - Lift Structure
  • 2 year - Hydraulic Unit & Power Unit
  • 1 Year - Electrical and Operating Components
  • Reasonable labor costs covered for first 12 months

BendPak 12APX Manual

  BendPak 12APX Installation and Operations Manual

  BendPak 12APX Product Brochure
