Forward DP18PRO 18,000lb 2 Post Lift - Heavy Duty

DP18 PRO Heavy-Duty Two-Post Lift – 18,000 lb Capacity Truck Service Solution

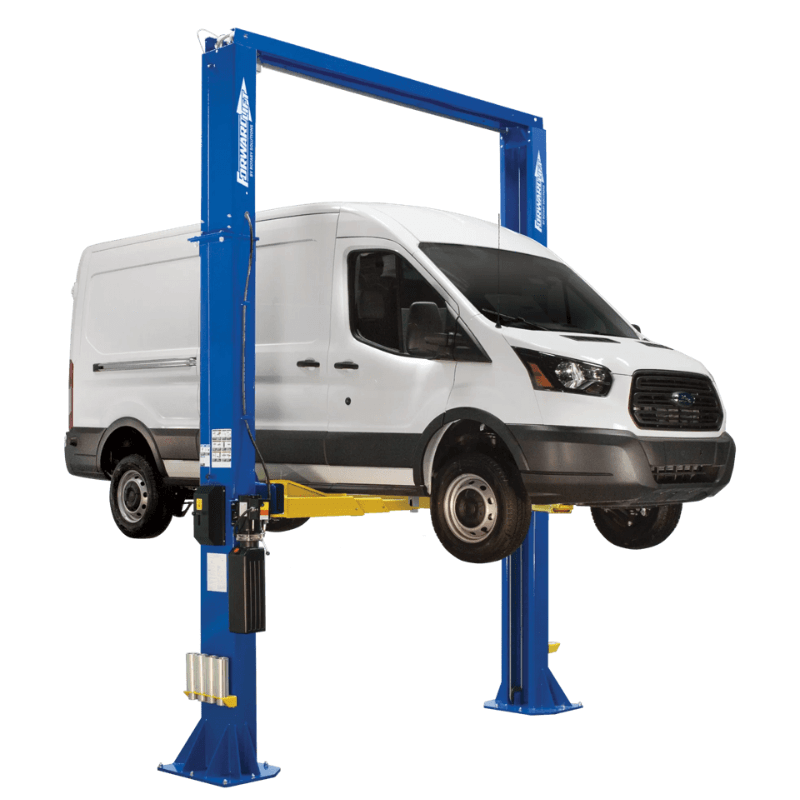

The Rotary DP18Pro is a heavy-duty two-post lift engineered for professional shops that regularly service work trucks, vans, and commercial vehicles. With an impressive 18,000 lb lifting capacity, this lift delivers the strength, stability, and reliability required for demanding vehicle service environments. Its robust construction makes it a dependable choice for facilities handling heavier loads on a daily basis.

Built with high-strength, heavy-gauge steel columns and reinforced gusseting, the DP18Pro is designed to provide exceptional structural integrity and long-term durability. A substantial base plate foundation enhances stability during lifting, while the three-stage arm design ensures secure vehicle contact across a wide range of wheelbases. Consistent rise height and generous drive-through clearance support efficient workflow and safe vehicle positioning.

Ideal for fleet service centers, commercial repair shops, municipal garages, and light-duty bus maintenance facilities, the DP18Pro is a practical investment for operations that demand dependable lifting performance. Multiple height configurations allow the lift to adapt to different ceiling clearances, making it suitable for both standard and taller shop installations.

DP18-Pro Specifications

• Lifting Capacity: 18,000 lbs

• Rise Height: 83 1/4"

• Overall Height Options:

  • No Extensions: 154 3/4"

  • Standard Height: 175"

  • Extended Height: 199"

• Height to Shut-Off:

  • No Extensions: 147 1/4"

  • Standard Height: 167 1/4"

  • Extended Height: 191 1/4"

• Minimum Ceiling Height Required:

  • No Extensions: 155 3/4"

  • Standard Height: 176"

  • Extended Height: 200"

• Overall Floor Width: 154 3/8"

• Inside Column Width: 119 5/8"

• Drive-Through Width: 108 1/4"

• Arm Reach (Min / Max): 30" – 61"

• Arm Type: 3-Stage Arms

• Minimum Adapter Height: 5 1/2"

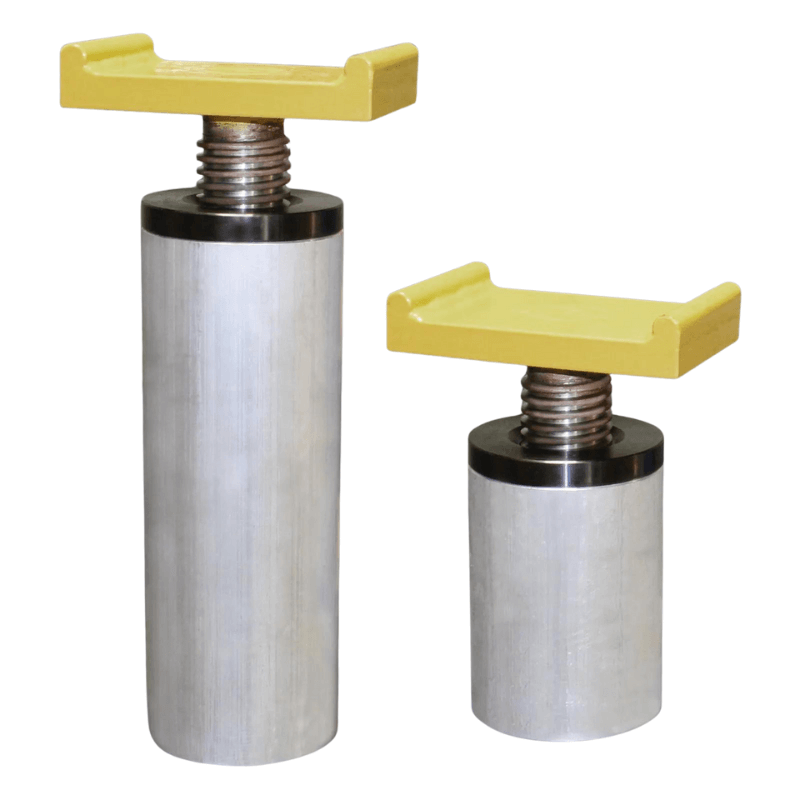

• Stackable Adapter Height (Low Extension): 10 1/2"

• Stackable Adapter Height (High Extension): 15 1/2"

• Motor: 2 HP, Single Phase

• Voltage: 208 / 230V

• Amperage: 20 Amps

DP18Pro 18,000 Lbs. Heavy-Duty Two-Post Lift Special Features

• 18,000 lb lifting capacity for heavy-duty trucks and commercial vehicles

• Heavy-gauge steel columns for superior strength and longevity

• Reinforced base plate with large gusseting for added stability

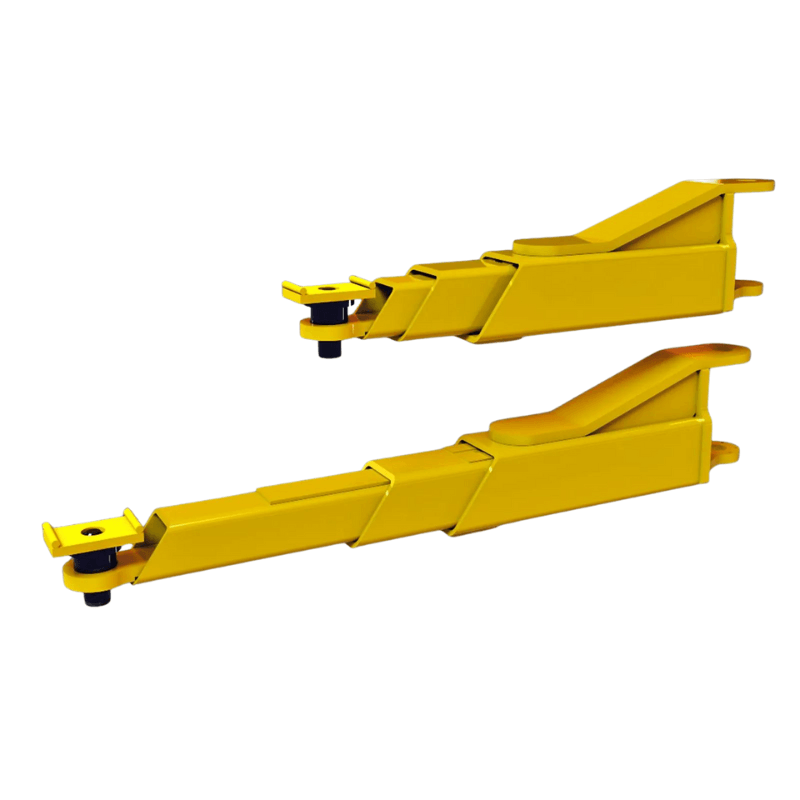

• Three-stage arms provide wide reach and secure vehicle positioning

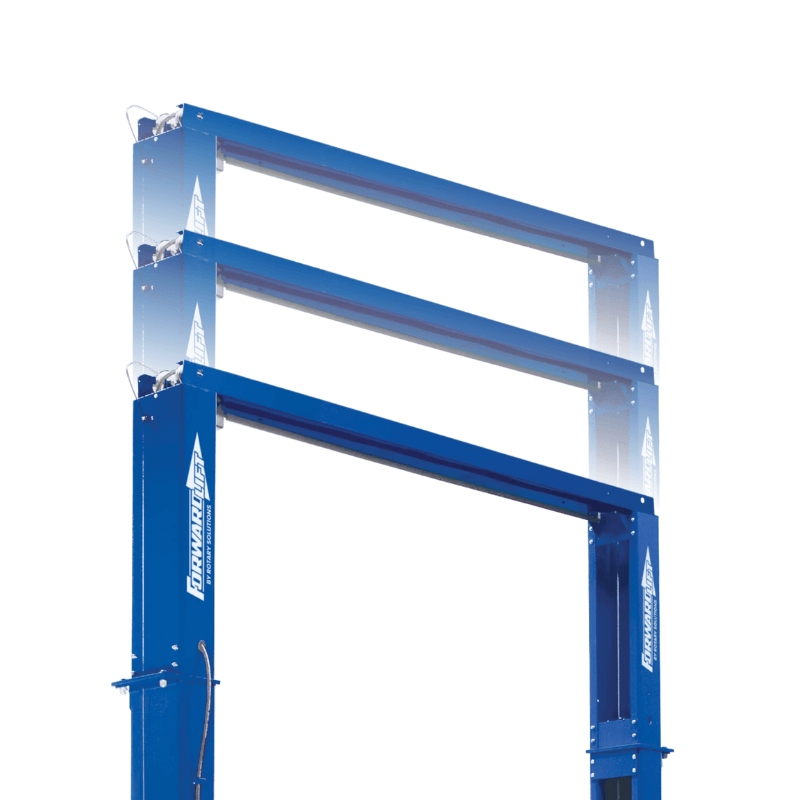

• Multiple column height configurations to fit various shop ceilings

• Excellent drive-through clearance for efficient vehicle access

• Designed for professional, high-demand service environments

• Compatible with truck adapter extensions for added versatility

• Warranty
  • 5 Years Structural
  • 1 Year Labor
  • 1 year Functional Parts (power, cylinders, cables, etc)

Rotary DP18Pro Manual

  Rotary DP18Pro Spec Sheet
