Forward F12 12,000lb 2 Post Lift - ALI Certified

F12 12,000lb 2 Post

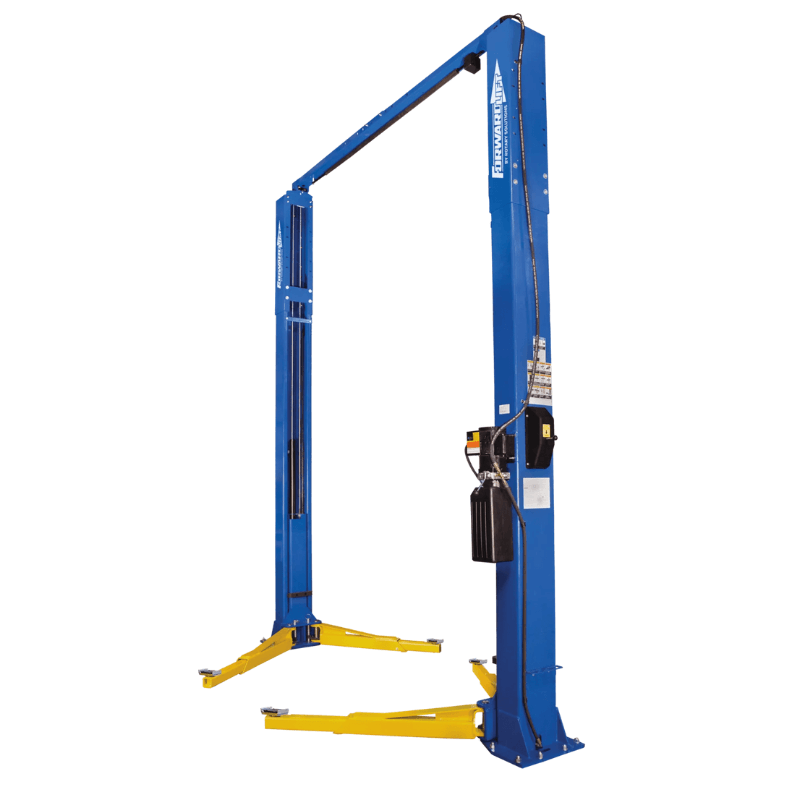

The Rotary F12 two-post lift is a high-capacity, versatile lift engineered to raise and service passenger cars, trucks, and vans up to 12,000 lbs. Its symmetric lift design and durable construction ensure smooth and reliable operation while accommodating a wide range of vehicles. The F12 is designed with multiple height configurations and adjustable width options, making it adaptable for shops of all sizes.

Equipped with heavy-duty push hydraulic cylinders, spring-operated arm restraints, and low-profile padded drop-in adapters, the F12 provides superior lifting performance while protecting vehicles and minimizing downtime. ALI Gold Certification guarantees that the lift meets stringent safety and performance standards, giving technicians confidence in every lift. Its robust powder coat finish ensures long-lasting durability in commercial environments.

Ideal for commercial repair shops, dealerships, and service facilities, the F12 combines efficiency, versatility, and safety. Its wide stance and adjustable arm reach make servicing wider trucks and vans easier, while optional accessories such as tire arms, LED tech lights, and air/electric workstations enhance workflow and productivity in busy automotive environments.

F12 Specifications

• Lifting Capacity: 12,000 lbs

• Maximum Rise with 5" Adapter Extensions: 77 1/2"

• Adjustable Overall Height Options:

  • F12N300: 166" (Standard)

  • F12N301: 178" (Max Height)

  • F12N302: 154"

  • F12N303: 143"

• Overhead Switch Height Options:

  • F12N300: 160 1/8"

  • F12N301: 172 1/8"

  • F12N302: 148 1/8"

  • F12N303: 137 1/8"

• Width Inside Columns: 114 7/8" (Optional: 120 7/8")

• Overall Floor Width: 140" (Optional: 146")

• Drive-Thru Width: 102 3/4" (Optional: 108 3/4")

• Arm Reach (Min / Max): 35" – 54"

• Minimum Adapter Height: 4 3/4"

• Voltage / Amps: 208–230V / 17A

• Motor / Phase: 2 HP / Single Phase

F12 12,000 Lbs. Capacity Two-Post Lift Special Features

• Symmetric two-post design for stable and smooth lifting

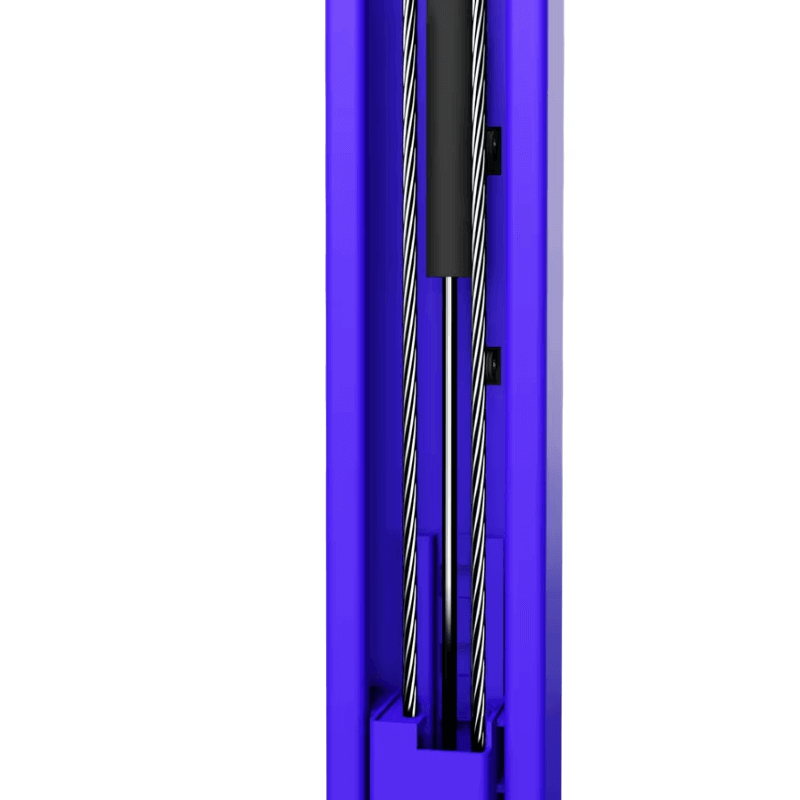

• Heavy-duty push hydraulic cylinders for consistent performance

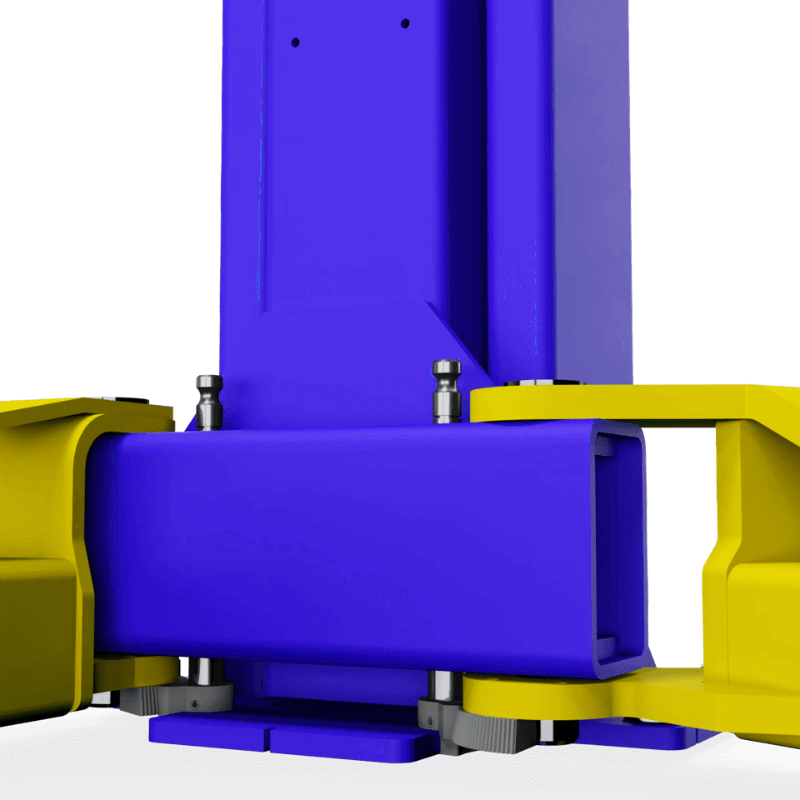

• Spring-operated arm restraints disengage at floor level

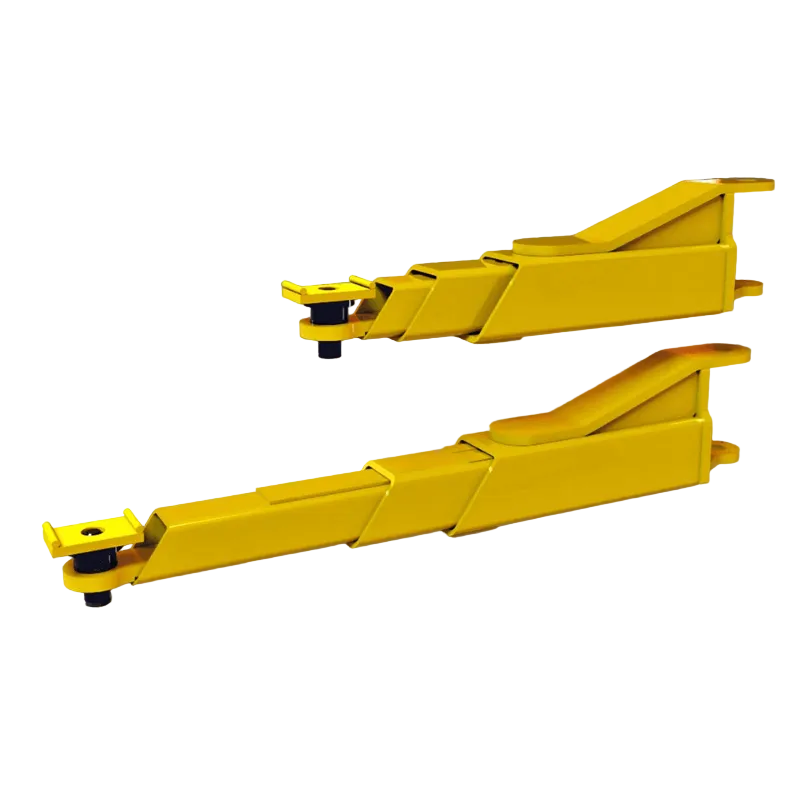

• 3 Stage Arm Design

• Low-profile padded drop-in adapters with four adapter extensions

• Multiple height and width configurations to accommodate diverse vehicles

• ALI Gold Certified for verified safety and performance

• Durable powder coat finish for long-term shop use

• Optional accessories include tire arms, LED tech lights, and air/electric workstations

• Wide stance facilitates easier service of larger trucks and vans
