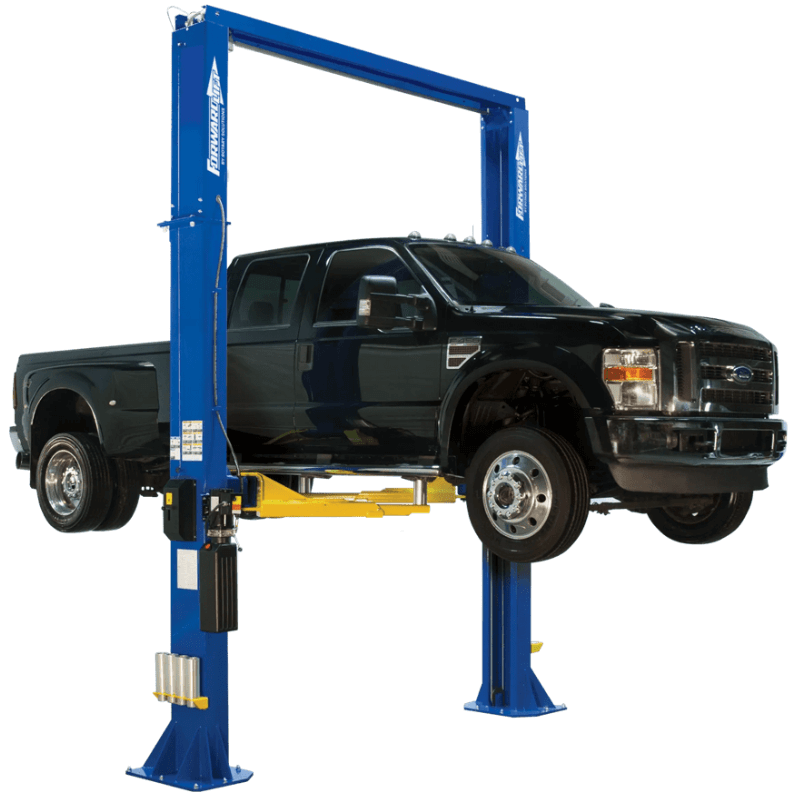

DP15 15,000 lb Two-Post Lift – Heavy-Duty Lift with Truck Adapter Extensions
The DP15 two-post lift is a heavy-duty, high-capacity lift designed for shops servicing work trucks, vans, small buses, and other large vehicles. With a 15,000 lb lifting capacity and robust steel construction, it delivers stability and support for demanding commercial automotive environments. Its substantial base plate and gusseted columns ensure safe and reliable lifting for a wide range of vehicle types.
This lift comes equipped with eight aircraft-grade aluminum truck adapter extensions—four 5” and four 10”—designed to reduce technician strain while lifting framed vehicles. The heavy-duty hydraulic system provides smooth, dependable operation, while the column bracket conveniently stores adapters when not in use. Multiple column height options (standard and extended) allow the lift to accommodate various shop ceiling heights.
Ideal for commercial shops, dealerships, and fleet service facilities, the DP15 provides technicians with the space, power, and versatility needed to handle larger vehicles efficiently. Its durable construction, high-capacity design, and adaptable arm reach make it perfect for heavy-duty maintenance, repair, and service operations.
2 Post Lift DP15 Specifications
-
Lifting Capacity: 15,000 lbs
-
Rise Height: 83-1/4”
-
Overall Height: No Extension: 154-3/4” | Standard Height: 175” | Extended Height: 199”
-
Height to Shut-Off: No Extension: 147-1/4” | Standard: 167-1/4” | Extended: 191-1/4”
-
Minimum Ceiling Height: No Extension: 155-3/4” | Standard: 176” | Extended: 200”
-
Overall Floor Width: 154-3/8”
-
Inside Column Width: 119-5/8”
-
Drive-Through Width: 108-1/4”
-
Arm Reach (Min/Max): 38” – 61”
-
Minimum Adapter Height: 5-1/2”
-
Stackable Adapter Height: Low Extension: 10-1/2” | High Extension: 15-1/2”
-
Motor / Voltage: 2 HP, 208–230V, Single Phase
-
Amps: 20
DP15 15,000 Lbs. Capacity Two-Post Lift Special Features
-
Heavy-duty two-post lift with 15,000 lb capacity for large vehicles
-
High-strength steel columns with large gusseted base plate for stability
-
Certification: ALI Certified
-
Includes eight aircraft-grade aluminum truck adapter extensions (4 × 5” & 4 × 10”)
-
Smooth hydraulic lifting system ensures safe and reliable operation
-
Multiple height options accommodate standard and tall shop ceilings
-
Drive-through and arm reach dimensions suitable for vans, small buses, and work trucks
-
Adapter storage brackets keep shop organized and reduce technician strain
-
Warranty
- 5 Years Structural
- 1 Year Labor
- 1 year Functional Parts (power, cylinders, cables, etc)
