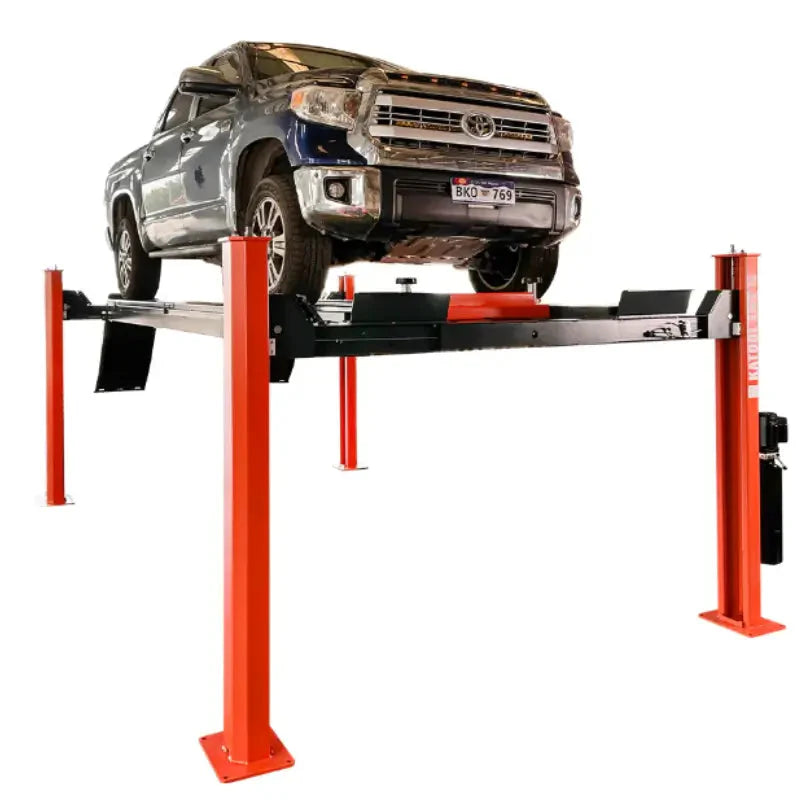

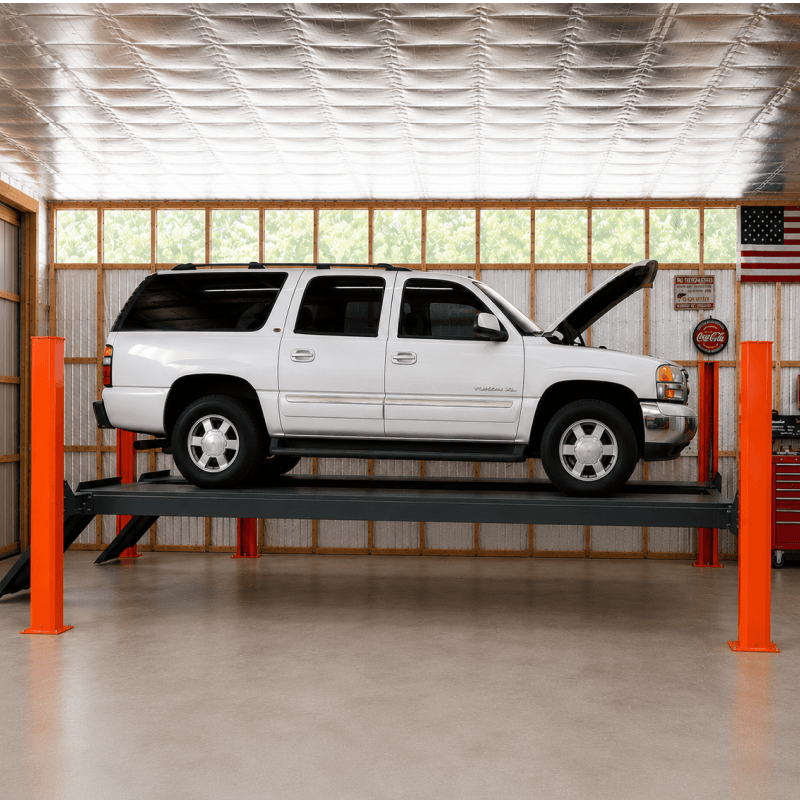

Katool KT-4H150, 4 Post Alignment Lift 15,000 lb - Rolling Jack Included

KT-4H150, 4 Post Lift

Juggling jacks and stands for complex car projects is inefficient and potentially unsafe. The Katool KT-4H150 Parking Lift is here to revolutionize your car care routine. With a staggering 15,000-lb lifting capacity and CE-certified design, the KT-4H150 tackles even the toughest jobs with ease. Safety is prioritized with multiple locking points, a single-point safety release, and a non-slip platform which is good for conducting repairs on rainy days.

Convenience is built-in with a reversible motor column, and an included Rolling Jack. This all-in-one solution streamlines your workflow and maximizes your productivity. Stop struggling with makeshift solutions. Invest in the KT-4H150 today and experience the difference! Enjoy a complete car care solution with unmatched safety, strength, and convenience.

Katool 15,000lb Lift Specifications:

• Lifting Capacity: 15,000 lbs

• Maximum Lifting Height: 75"

• Height of Posts: 86"

• Drive-Thru Clearance: 99.5"

• Overall Width: 136"

• Overall Length (with ramps): 245"

• Overall Length (without ramps): 208"

• Width Inside Columns: 118"

• Width Between Runways: 43"

• Minimum Runway Height: 9"

• Pad Size: 14.56" x 17.12"

• Lock Positions: Every 4.7" (12 total)

• Power: 220V / 60Hz / Single Phase

• Oil Type: AW-46 or AW-32 (cold climates)

Pallet Dimensions

• Lift: 4,057 lbs — 200" x 27" x 33"

• Pump: 441 lbs — 40" x 24" x 15"

• Ramps (2): 66 lbs — 47" x 20" x 12"

• Rolling Jack: 330 lbs — 46" x 25" x 13"

4H150 Special Features:

• CE Approved and Certified

• 115% dynamic loading capacity standard

• 150% static loading capacity tested

• Rolling jack included (pneumatic-over-hydraulic, external air source required)

• Single-point manual safety lock release

• Redundant primary and secondary safety lock systems

• Flexible power-side column placement (front, rear, left, or right)

• Non-skid diamond plate runways

• Heavy-duty 7/16" cables and steel pulleys

• Permanent installation design (no caster kit support)

• Updated orange and gray finish

• Optional turntables available (sold separately)

Warranty

• One-year (12 months) warranty on all parts against manufacturing defects

• Additional three-year (36 months) warranty on structural components

Katool KT-4H150 Manual:

  Katool 4H150 Installation and Operations Manual

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this 4 post lift with jack and avoid potential injury or death.
