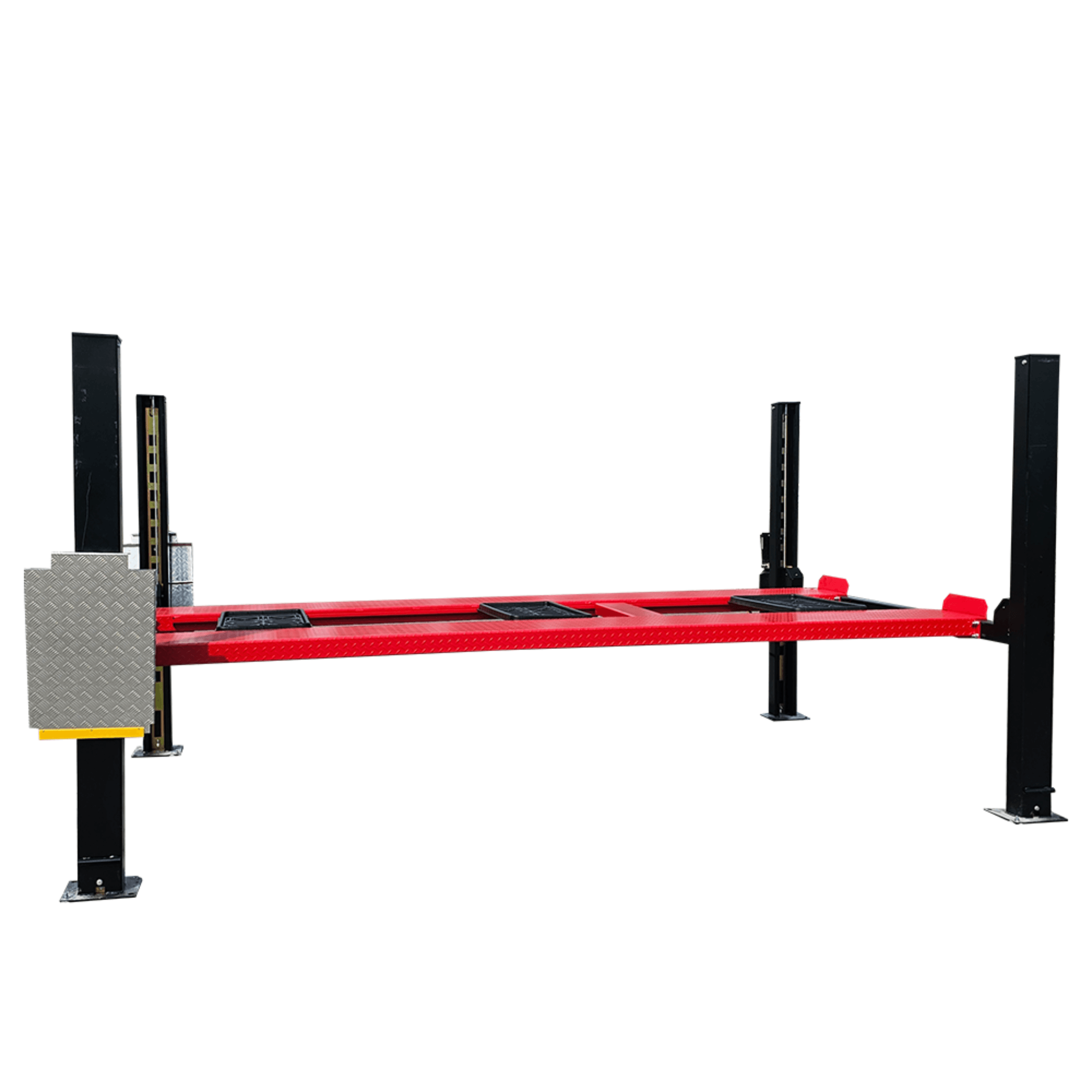

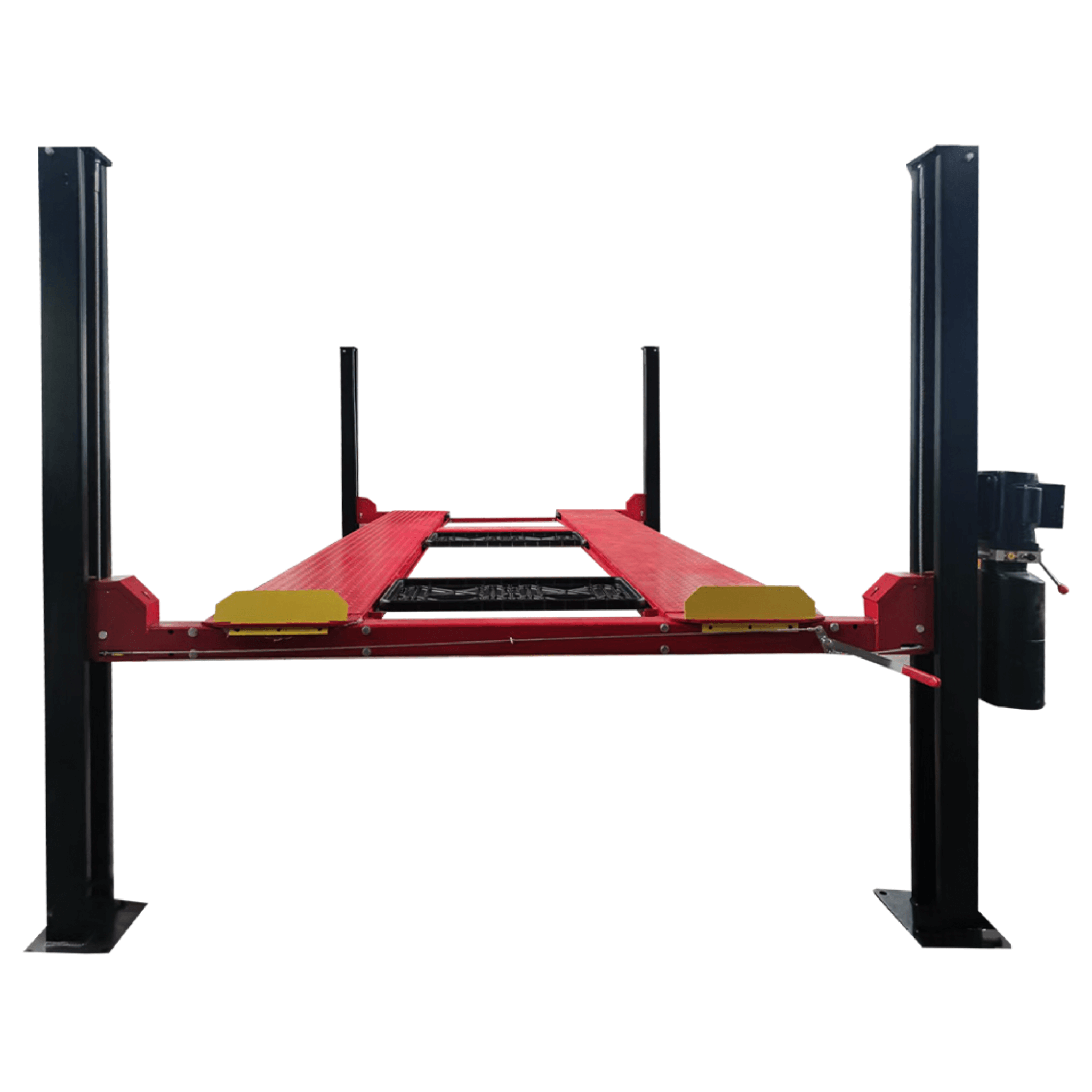

4H950 4 Post Lift from Katool

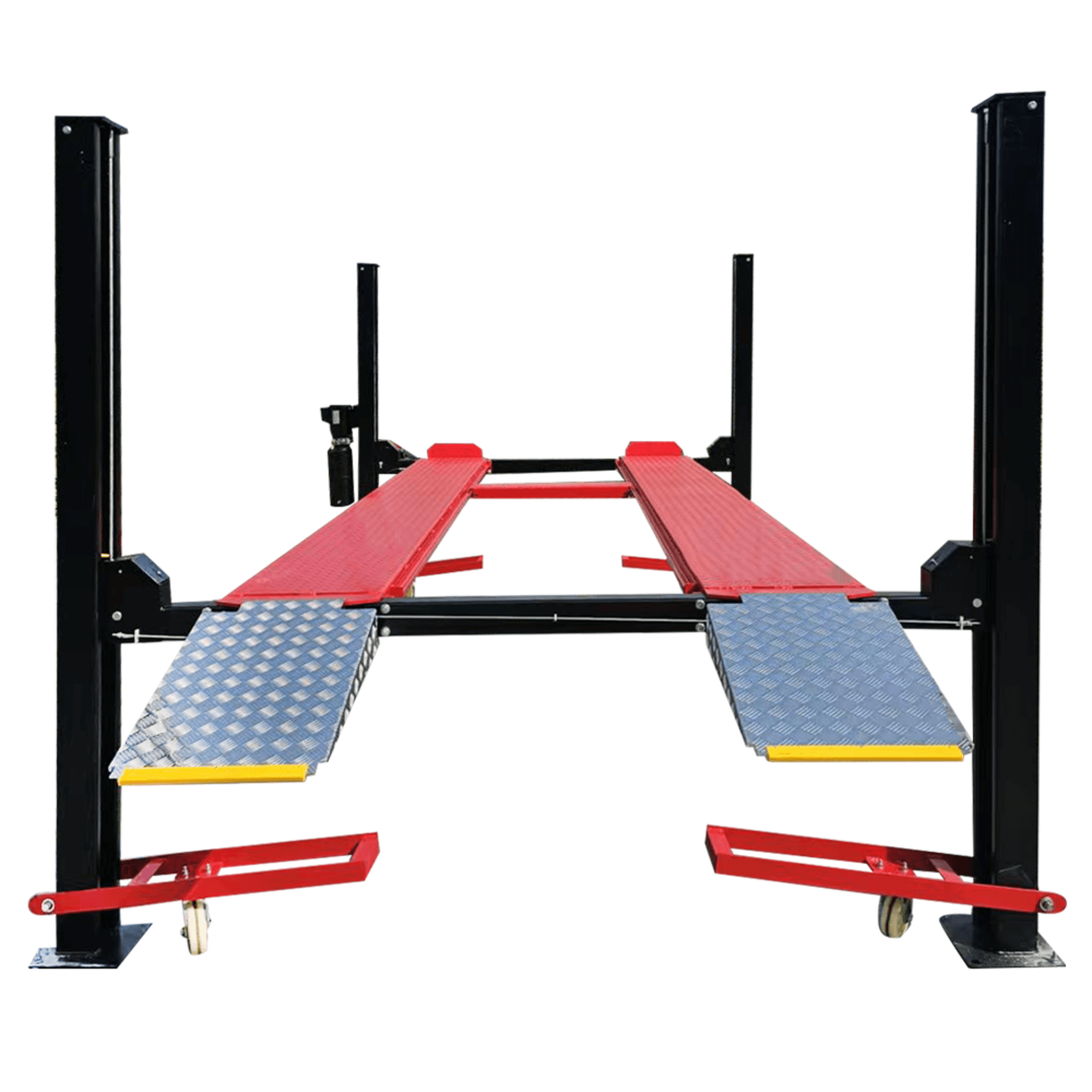

Elevate your auto service capabilities with the KATOOL KT-4H950 4-Post Lift, designed for heavy-duty performance and built to handle vehicles up to 9,500 pounds. This lift is a reliable solution for professional automotive shops, dealerships, and serious home garages needing robust lifting power and long-term durability.
With an impressive lifting height of 84.5 inches and a quick 50-second lift time, this 4-post lift provides efficient access for undercarriage maintenance, repairs, and inspections. The non-skid diamond plate platforms and adjustable safety lock ladders ensure stable, slip-resistant operation for improved workplace safety.

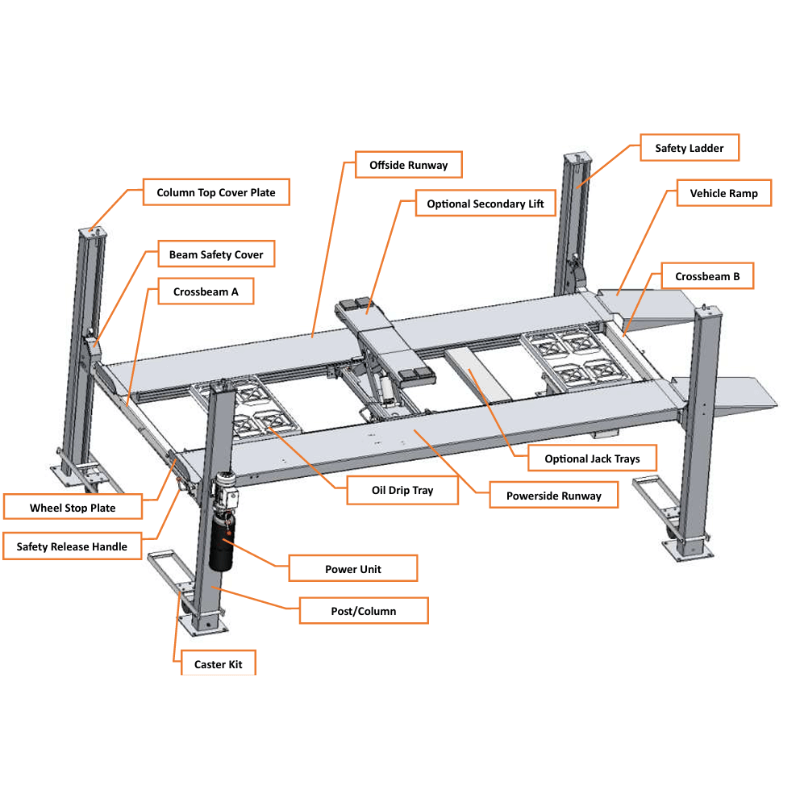

Engineered with 4 mechanical locks and both primary and secondary safety systems, the KT-4H950 prioritizes user protection. It also includes caster kits, aluminum ramps, a jack tray, and drip trays making it a complete lifting system ready to boost your shop’s productivity.
KT-4H950 Specifications:
-

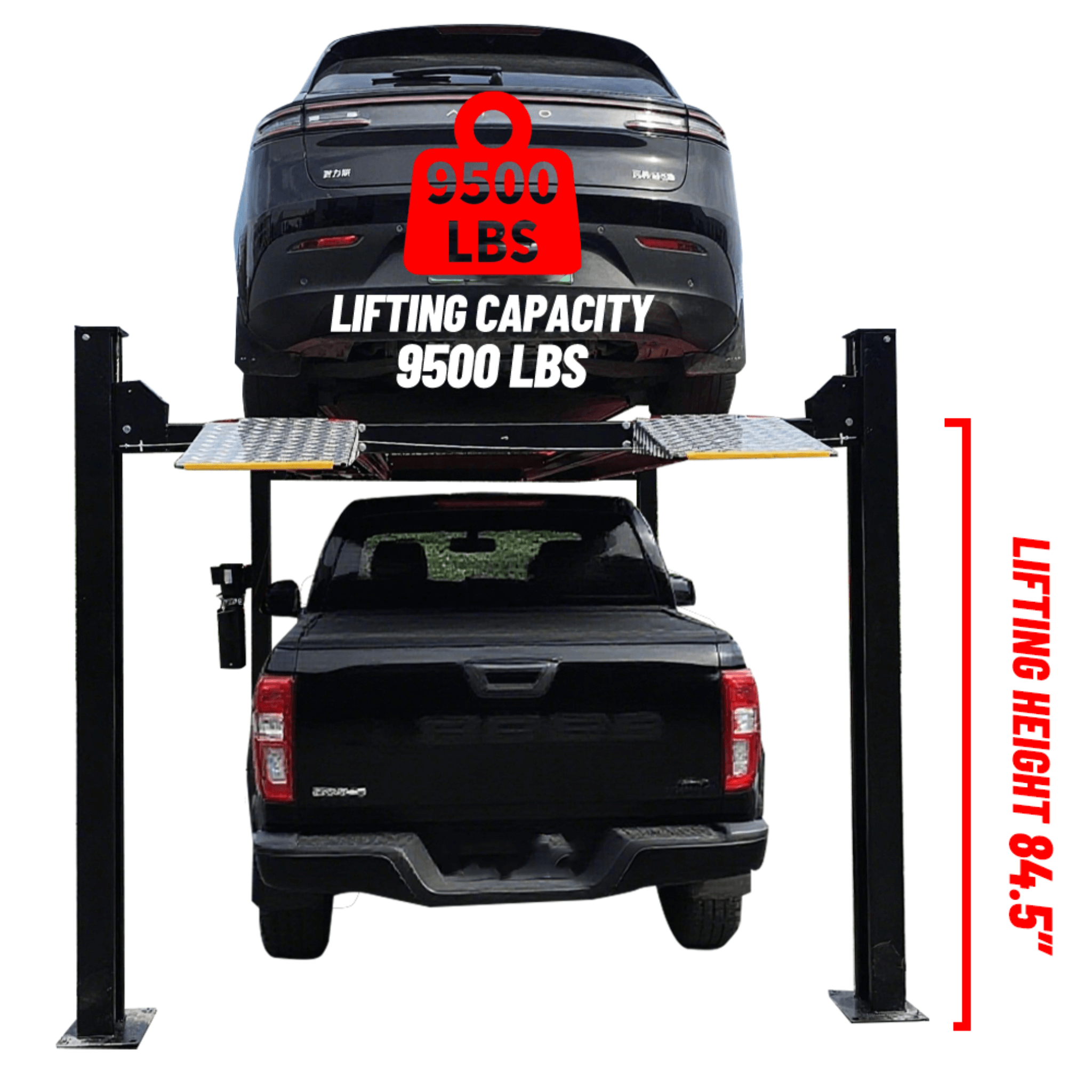

Lifting Capacity: 9,500 lbs
-
Lifting Time: 50 seconds
-

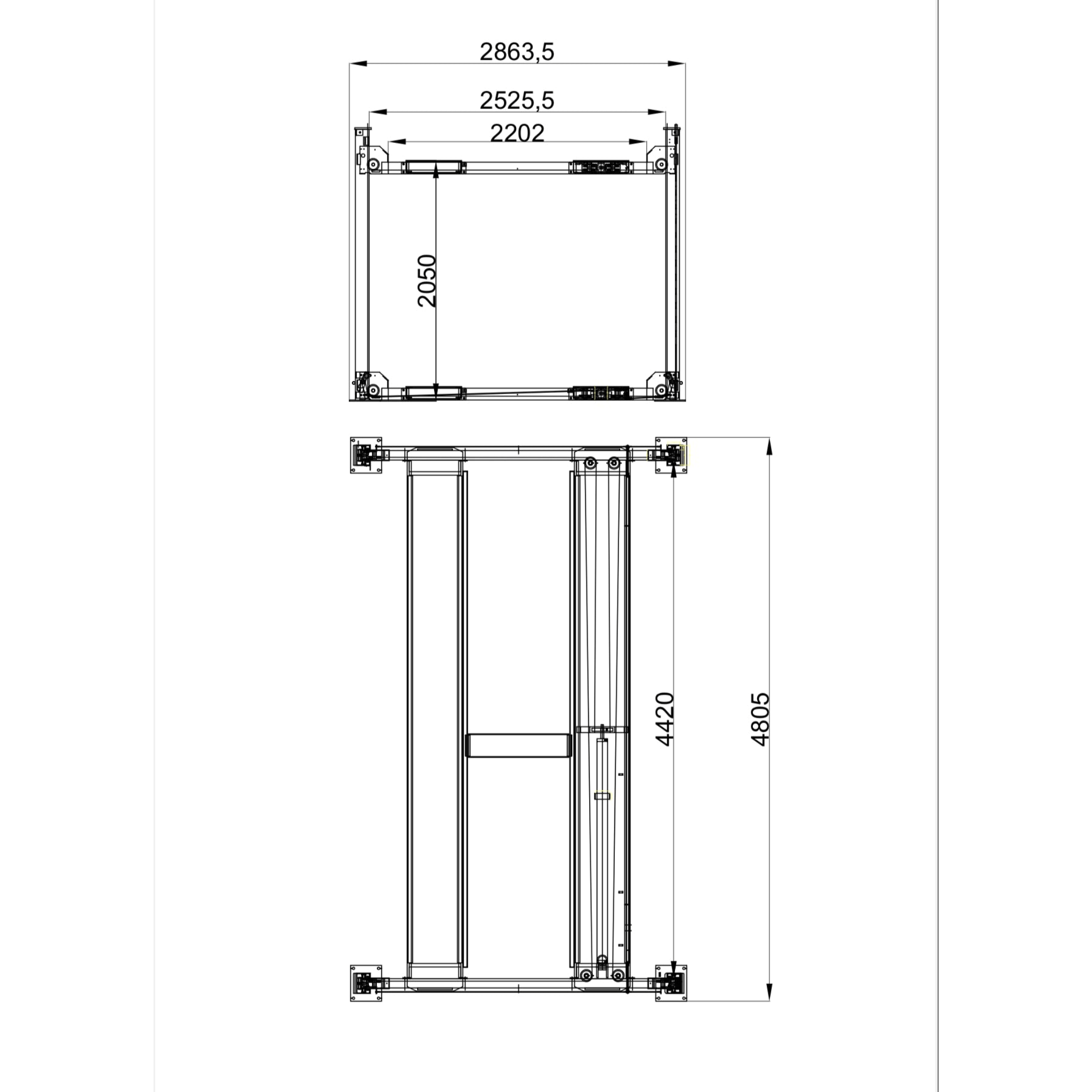

Runway Length: 174"
-
Lifting Height: 84.5"
-
Maximum Lifting Height: 81.5"
-
Drive-Thru Clearance: 86.6"
-
Outside Runway Width: 79.8"
-
Overall Height: 92.5"
-
Overall Width: 113"
-
Width Between Columns: 99"
-
Overall Length: 189" (including baseplates)
-
Motor: 110V / 3 HP (30A breaker required)
-
Concrete Requirement: Minimum 3.93" thickness at 3000 PSI
-
Pallet Dimensions: 186" L x 30" W x 23" H
-
Shipping Weight: 2,095 lbs
KT 4H950 9,500lb Heavy Duty 4-Post Lift Special Features
-

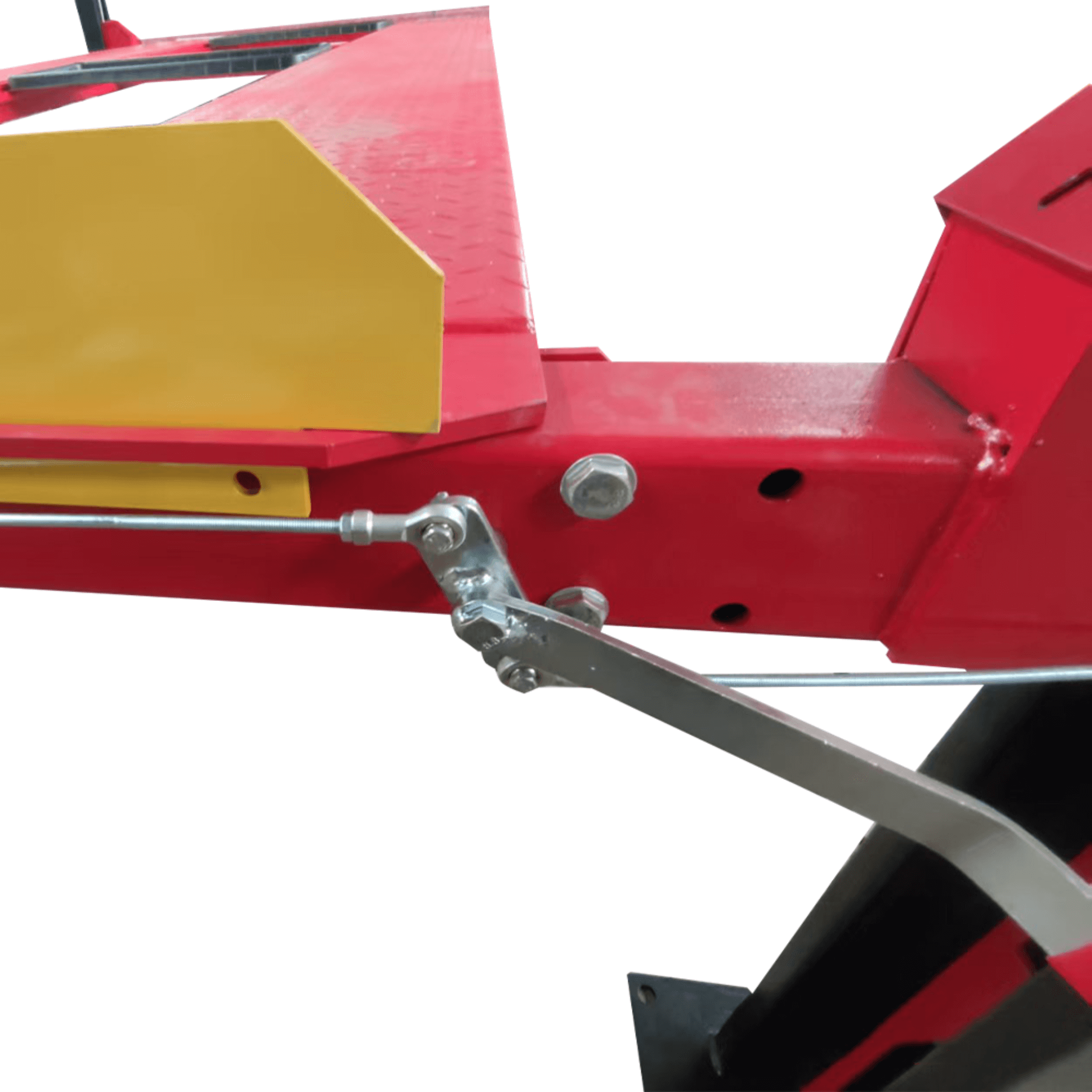

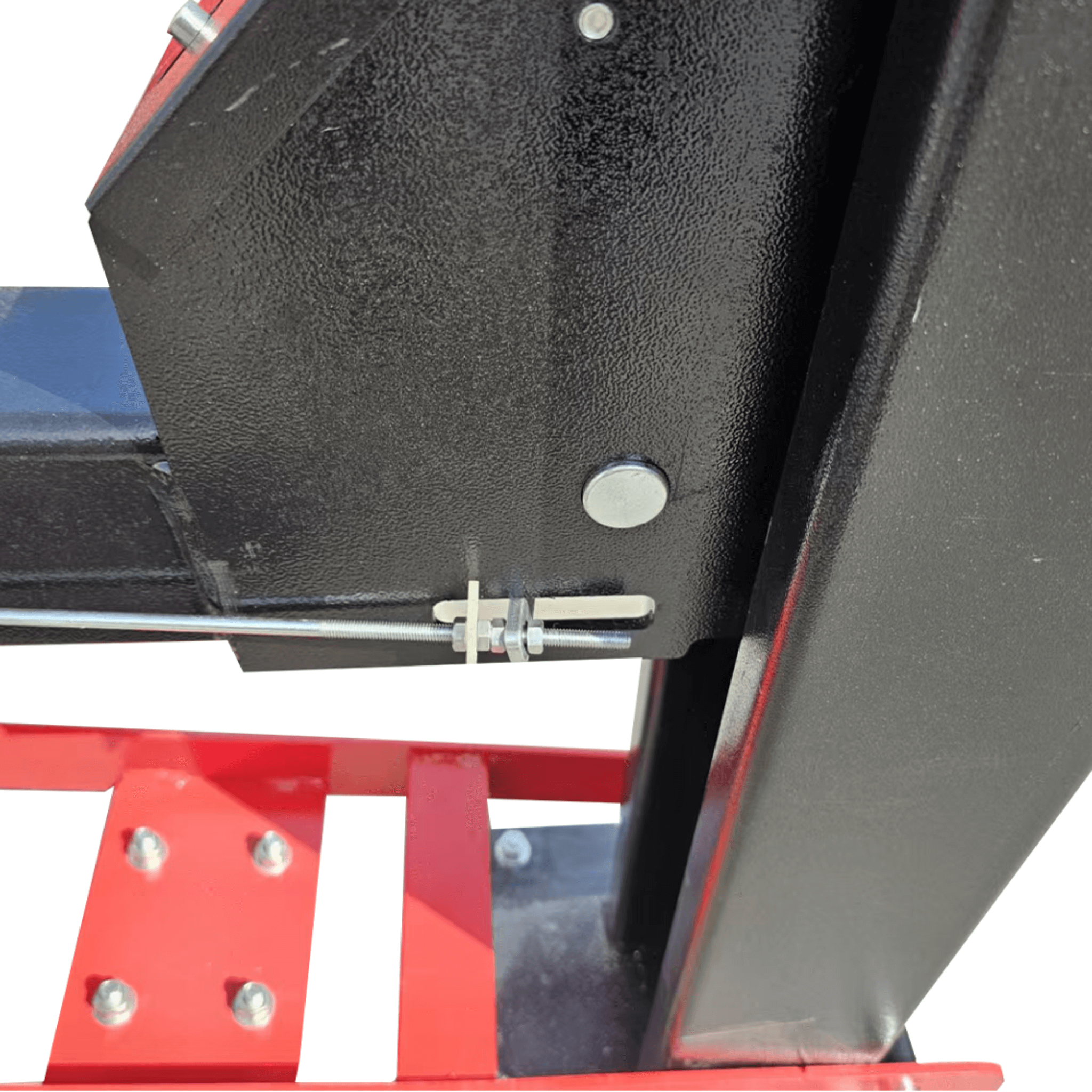

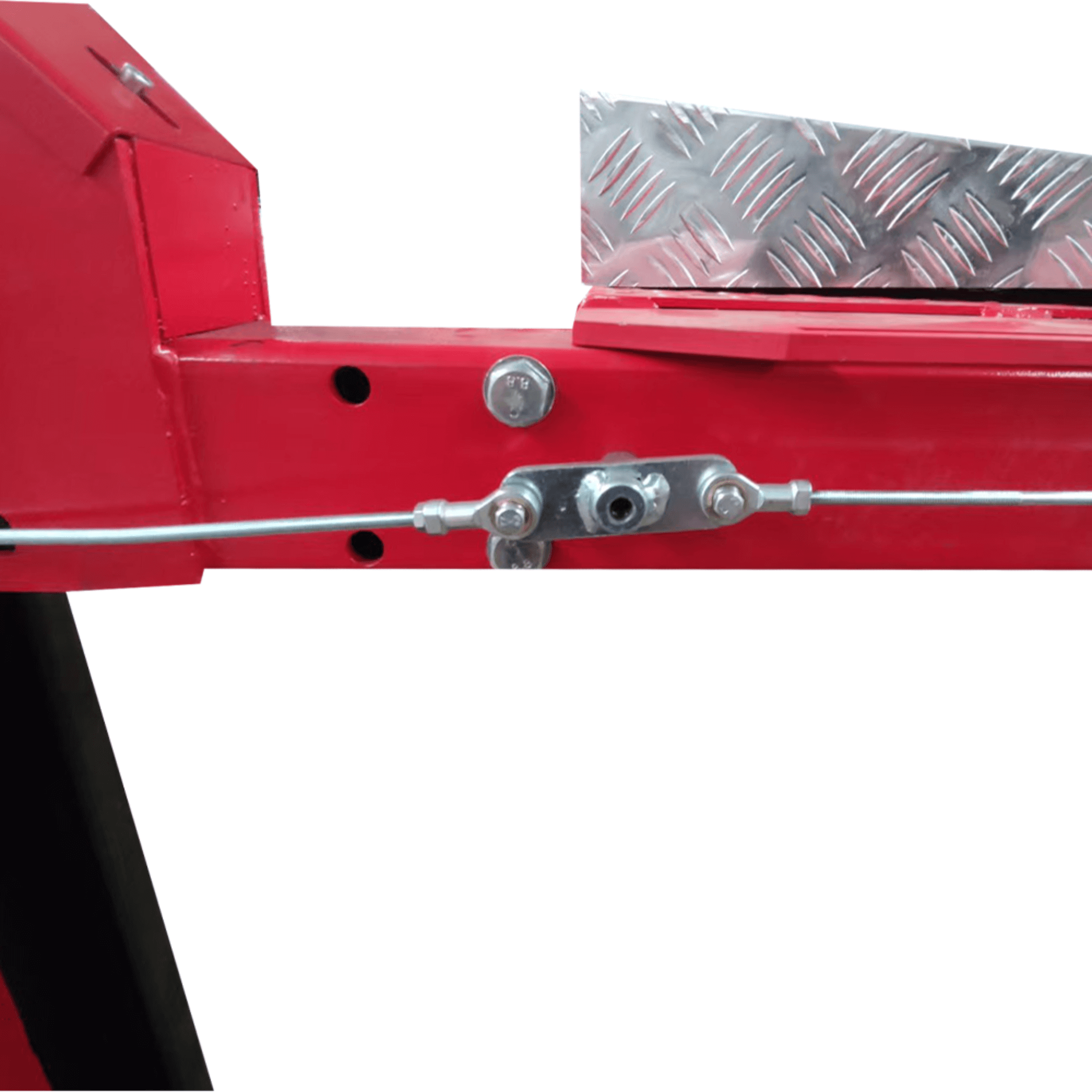

Single-point manual safety release for simple operation
-
Power unit column can be installed on either side, front or rear
-
Non-skid diamond plate runways for safer vehicle positioning
- Safety System: 4 mechanical locks with primary & secondary safety locks
-
Adjustable safety lock ladders for custom lift heights
-
Includes:
-

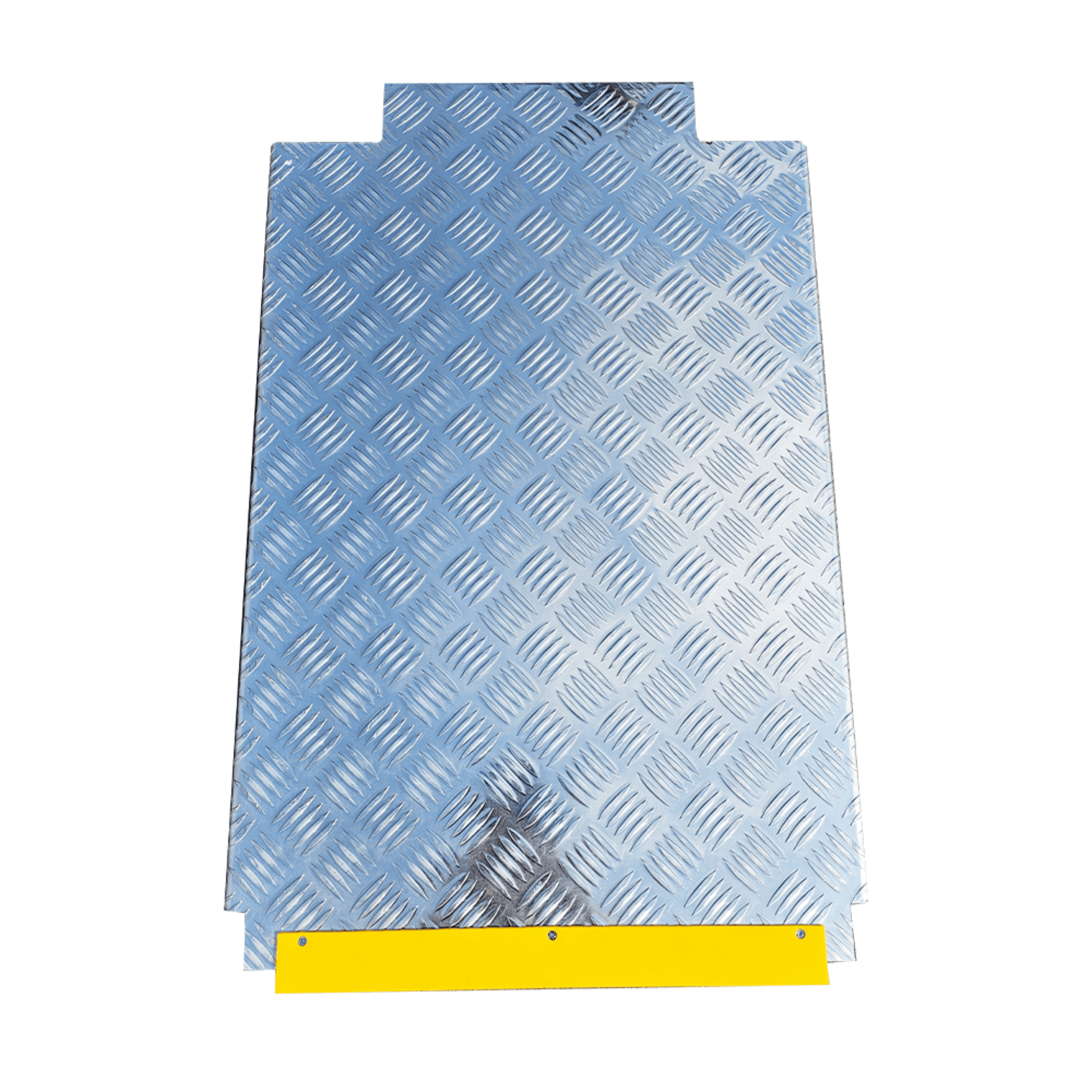

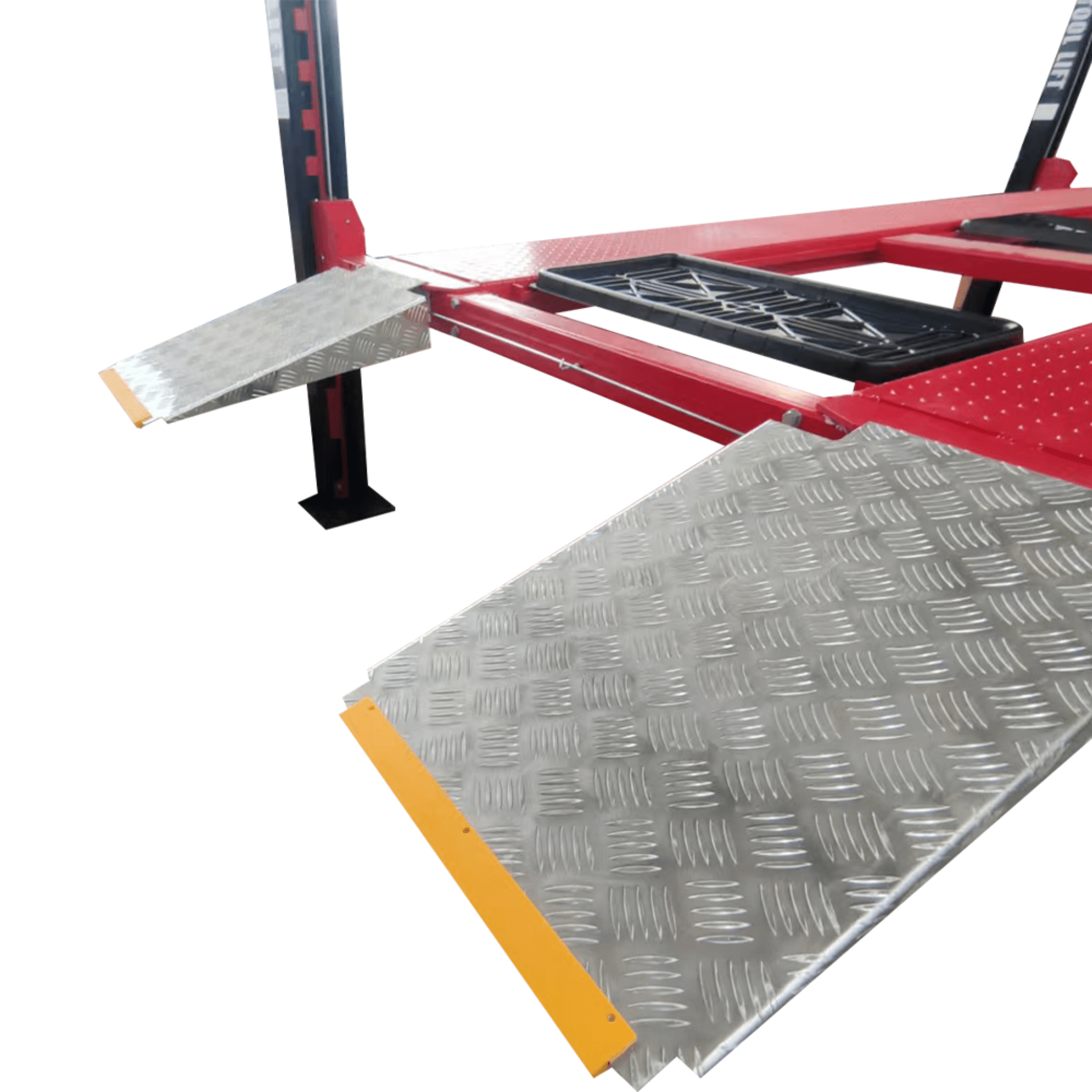

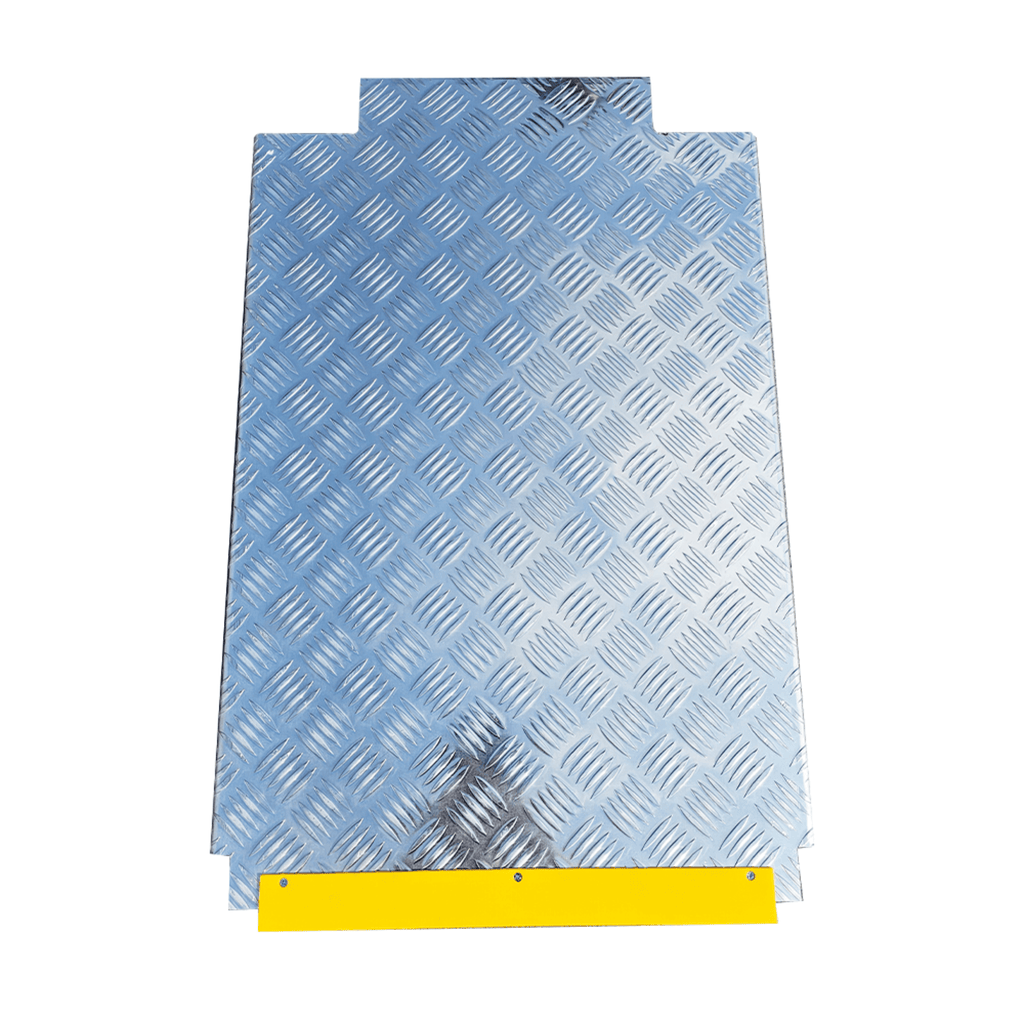

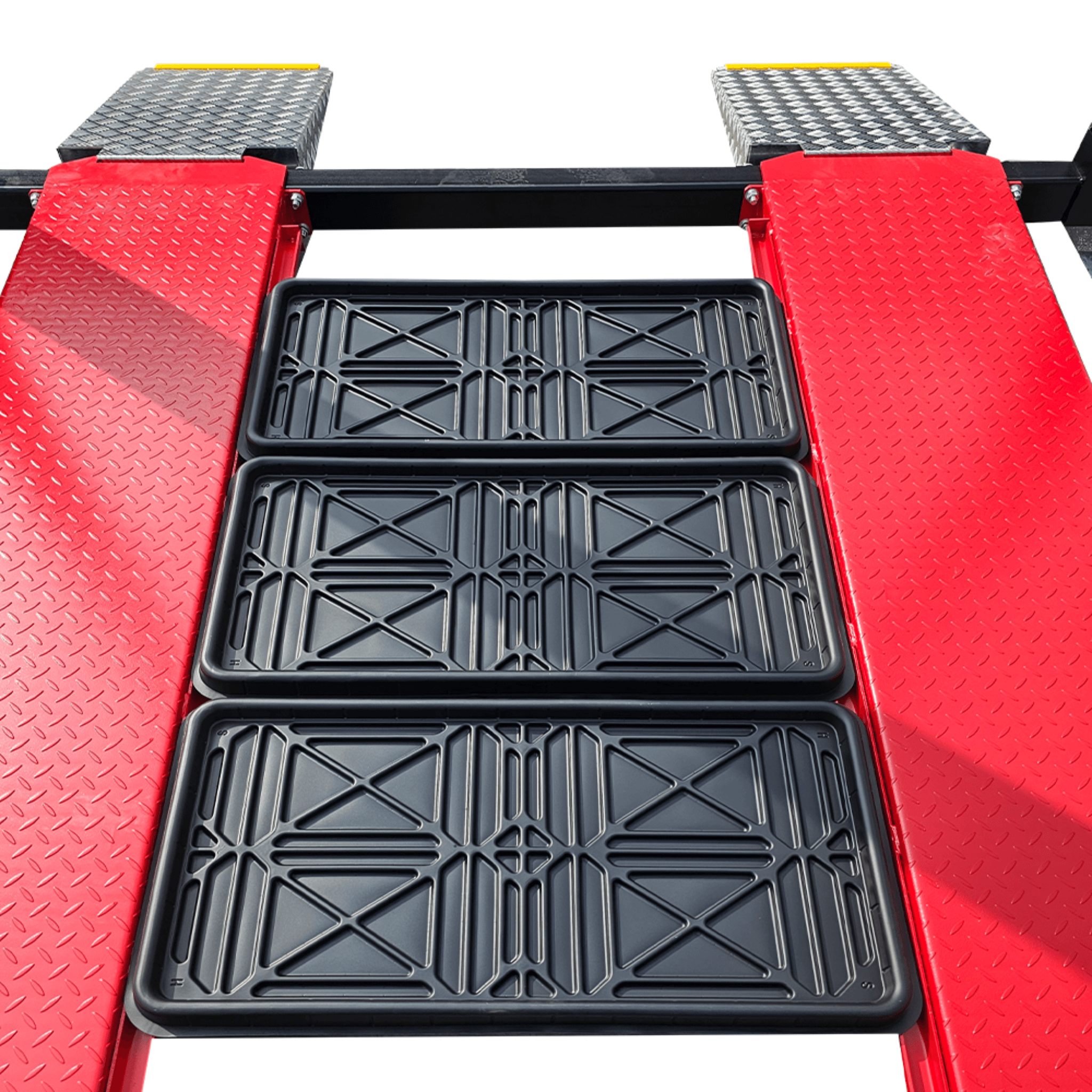

Caster kit, Aluminum ramps, Jack Tray, and 3 drip trays
-
-
Compatible Rolling Jack Sold Separately: RJ50
-
Rugged construction built for long-term shop use
KATOOL KT-4H950 Manual:
*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
