KT-4H110 4 Post Vehicle Storage Lift 11,000lb

110v

$1,849.00

$1,849.00 $3,299.00

KT-4H110 4 Post Vehicle Storage Lift 11,000lb

$1,849.00

$1,849.00 $3,299.00

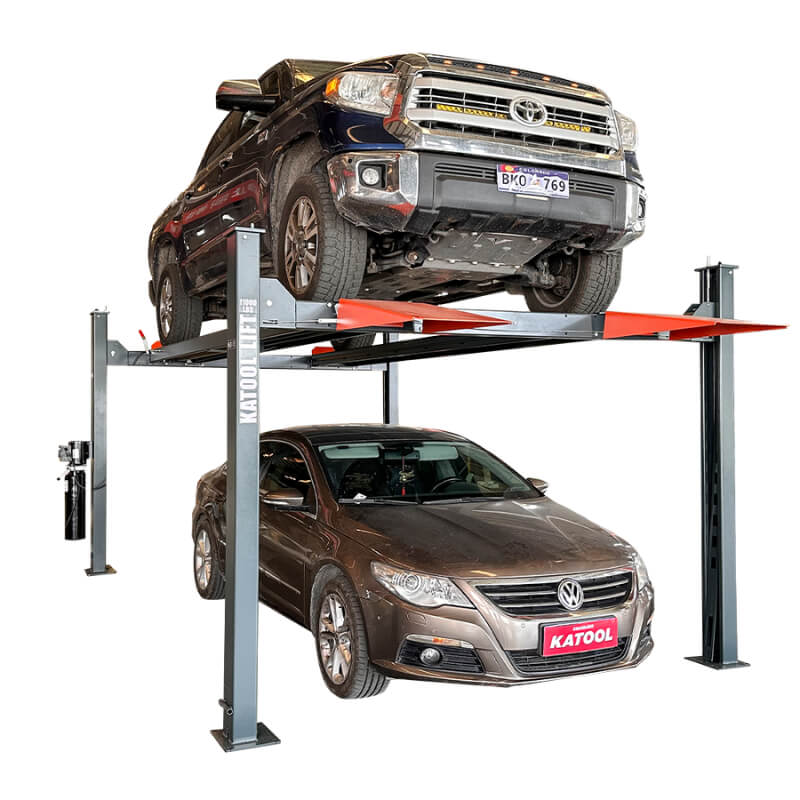

Katool KT-4H110 Vehicle Storage Lift

Drowning in clutter and struggling to park your vehicles? The Katool KT-4H110 Vehicle Storage Lifts is your space-saving solution for a cleaner, more organized garage. This powerful 4-post lift has a massive 11,000-lb lifting capacity, accommodating even heavy-duty trucks and SUVs. The KT-4H110 dimensions are so compact that it fits perfectly into tight spaces with an overall width of just 126". It effortlessly elevates vehicles to a comfortable 84.25" height for easy maintenance or storage. This lift offers the perfect blend of power and functionality, with a minimum runway height of just 6.2" for slammed cars. Convenience matters with a choice of 110V or 220V power and included drip trays and jack tray.

Stop sacrificing space! Upgrade to the Katool KT-4H110 and experience the freedom of a clean, organized garage. CE-approved and certified with four mechanical locking devices and a non-slip platform, safety is never compromised. Get yours now and reclaim your precious garage space!

Katool 11000 lb Lift Specifications

Lifting Capacity: 11,000 lbs
Maximum Lifting Height: 84.3"
Height Under Runway: 78.7"
Drive-Thru Clearance: 98.3"
Runway Width (outside to outside): 79.7"
Height of Posts: 95"
Overall Width: 126"
Overall Length (with ramps): 223"
Overall Length (without ramps): 191"
Width Inside Columns: 113"
Width Between Runways: 45"
Minimum Runway Height: 6.2"
Lock Positions: Every 4.7" (14 positions)
Power: 110V / 60Hz / Single Phase or 220V / 60Hz / Single Phase (30A breaker required)
Oil Type: AW-46 or AW-32 (cold climates)
Shipping Dimensions: 195" x 26" x 32"
Shipping Weight: 2,119 lbs
Included: Drip trays, jack tray

KT 4H110 Special Features:

CE Approved and Certified
115% dynamic loading capacity standard
150% static loading capacity tested
Single-point manual safety lock release
Four mechanical locking devices for enhanced safety
Redundant primary and secondary safety lock systems
Flexible power-side column placement (front, rear, left, or right)
Non-skid diamond plate runways
Adjustable safety locking ladder system
Optional caster kit and rolling jack trays available (sold separately)
Jack tray and drip trays included
Power supply options: standard 110V motor with optional 220V upgrade
Warranty
- One-year (12 months) warranty on all parts against manufacturing defects
- Additional three-year (36 months) warranty on structural components

Katool 4H110 Manual:

Katool KT-4H110 Installation and Operations Manual

4H110 Vehicle Storage Lifts Optional Items (sold separately):

5,000lb Rolling Jack - KT-RJ50
7,000lb Rolling Jack - KT-RJ70
Caster Kit

*Prior to purchasing and installing, customers must confirm the concrete thickness and strength to ensure safety. The concrete must be at least 3.93" thick and have a 3000 PSI rating in order to properly install this lift and avoid potential injury or death.
