Triumph NSS 8 8,000 lb Vehicle Storage Lift

Squeezing all your tools in that sorry excuse of a space called your garage? The Triumph NSS-8 is your ticket out of the automotive squeeze. With a lifting height of 72", it's like adding a mezzanine to your garage. This lift doesn't just park cars - it augments your space like automotive IKEA.

But here's where the rubber really grips the road: this 8,000 lb capacity beast lifts vehicles with the precision of a German sports car. Its four-post design is more stable than a luxury sedan's ride, while the automatic safety locks engage faster than a drag racer's reflexes. Add in the mobility of the caster kit, the cleanliness of drip trays, and the flexibility of a jack tray, and you've got more features than a fully-loaded SUV. The NSS-8 isn't just a lift - it's your personal pit crew, valet, and space-saving genius all rolled into one steel dynamo.

Triumph NSS8 Specifications:

• Lifting Capacity: 8,000 lbs

• Overall Length (without ramps): 175 inches

• Overall Length (including ramps): 195 inches

• Overall Width (base plate to base plate, without motor): 106 inches

• Overall Width (including motor): 117 inches

• Drive-Through Width: 93 inches

• Runway Length: 165 inches

• Runway Width: 18 inches

• Lifting Height: 72 inches

• Between Runways: 37 inches

• Height Under Runway: 69 inches

• Overall Height: 84 inches

• Lowered Height: 5 inches

• Locking Positions: 10 (every 4.5 inches)

• Lowest Lock Position: 26 inches

• Highest Lock Position: 69.5 inches

• Voltage: 110V (30 amp breaker)

• Motor: 3 HP


• Shipping Specs: 169" x 21" x 29" - 1,570lbs

• Hydraulic Fluid Requirement: AW32

NSS-8 8,000 lb Vehicle Storage Lift Special Features:

• Four-post design for enhanced stability and vehicle storage

• Automatic safety locks for secure lifting

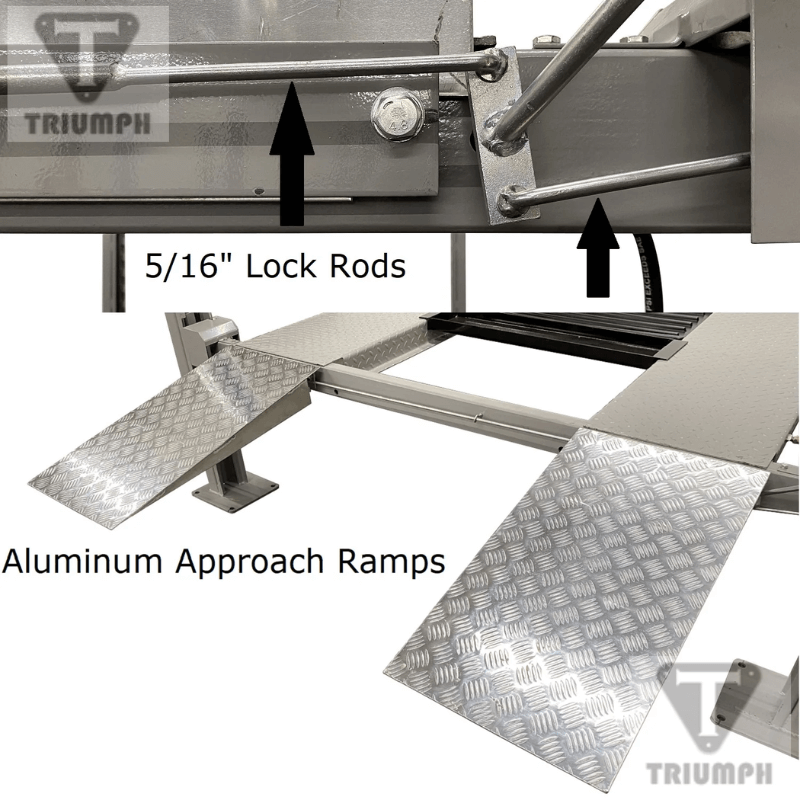

• Aluminum ramps for durability and easy drive-on access

• Includes:

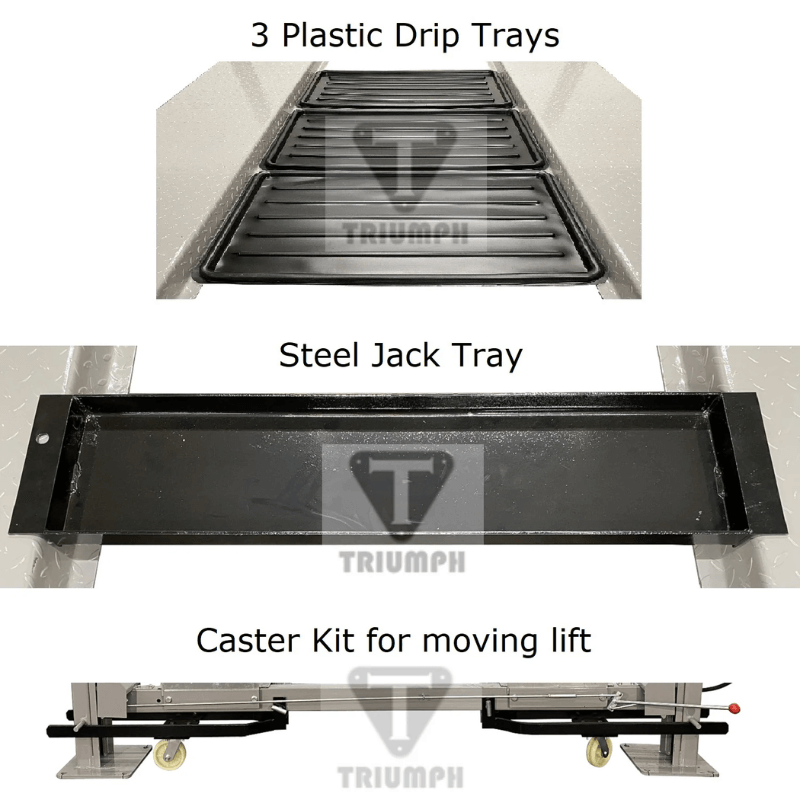

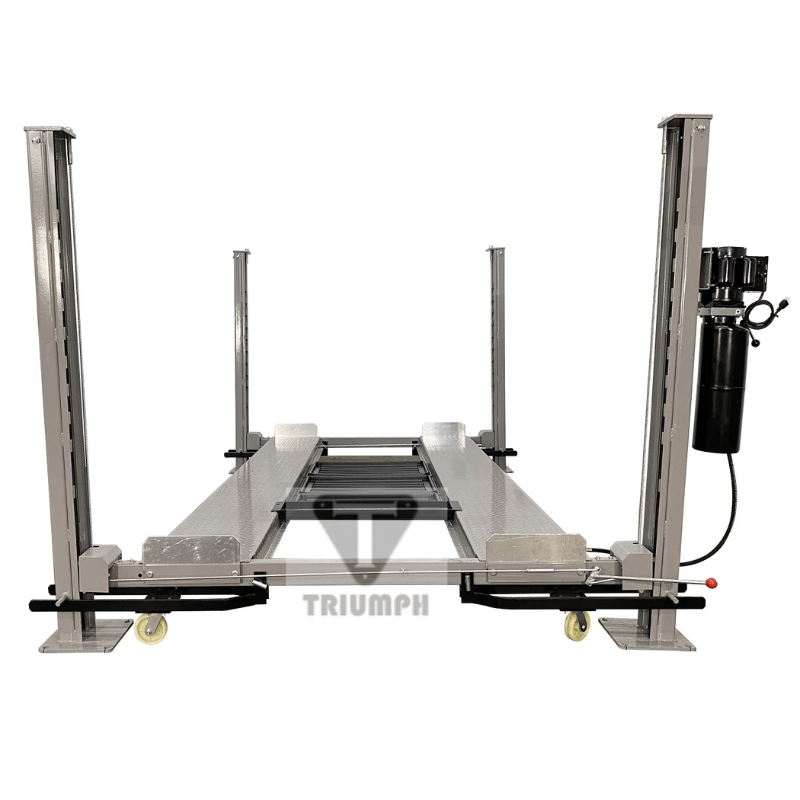

  • Caster kit for easy mobility and placement

  • Drip trays to prevent fluid mess

  • Jack tray for additional lifting flexibility

• Warranty: 1-year parts-only

• Certification: CE Certified, manufactured in ISO9001-certified factories

• Optional Item (Sold Separate)
  • Triumph NSS-8 Storage Lift Bridge Jack SJ35
• Need Extra Length or Height? Choose the XLT Version - NSS-8XLT

NSS 8 Manual:

   Triumph NSS 8 Manual

  Triumph NSS-8 Cable Routing
