Titan HD2P-9KMSC 9,000lb 2 Post Lift - Master Series
Titan HD2P-9KMSC 9,000lb 2 Post Lift - Master Series
HD2P-9KMSC 9,000lb 2 Post Lift by Titan

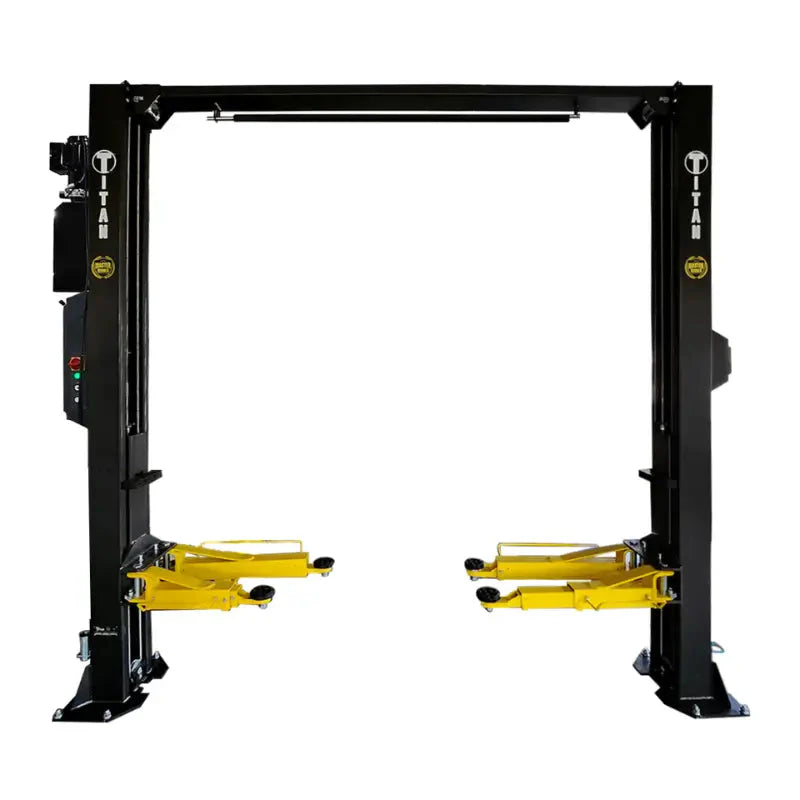

Say goodbye to cramped, awkward vehicle maintenance with the Titan HD2P-9KMSC 9,000 lb 2-Post Lift – Clear Floor. Designed for top-tier garages and passionate car enthusiasts, this beast offers a hefty 9,000 lb capacity and a max lifting height of 82-1/4” with adapters, making it perfect for anything from sedans to larger trucks. Its clear-floor design ensures complete access beneath your vehicle without tripping over cables or obstacles. Plus, the direct drive hydraulic system and single-point lock release make operating this lift effortless and safe.
Every detail of the HD2P-9KMSC is geared for convenience and reliability. From the steel hydraulic oil reservoir to the advanced 3-stage front arms, every feature is built for flexibility and long-term use. The Power on Green LED keeps things user-friendly, while the overhead shut-off bar with a safety limit switch prevents accidental over-extension. With thoughtful additions like rubber door guards, steel toe guards, and a rugged powder-coated finish, this lift is a durable, efficient investment. And thanks to its solid warranty, you can lift with confidence, knowing you’re backed by Titan’s trusted quality. This lift is the one!
9KMSC Specifications
-
Type: Clearfloor / Asymmetric
-
Lifting Capacity: 9,000 lb
-
Lifting Time: 50–60 sec
-
Overall Height: 140-3/4” (Carriage lock ladder will rise another 7-7/8" at max height)
-
Width Between Posts: 111-1/2”
-
Drive-Thru Clearance: 100-3/4”
-
Low Pad Height: 3-3/4”
-
Lifting Height: 74-3/4” (up to 82-1/4” using truck adapters with pad mounts threaded up)
-
Power Unit: 220V / 1Ph / 60Hz
- Motor: 3HP

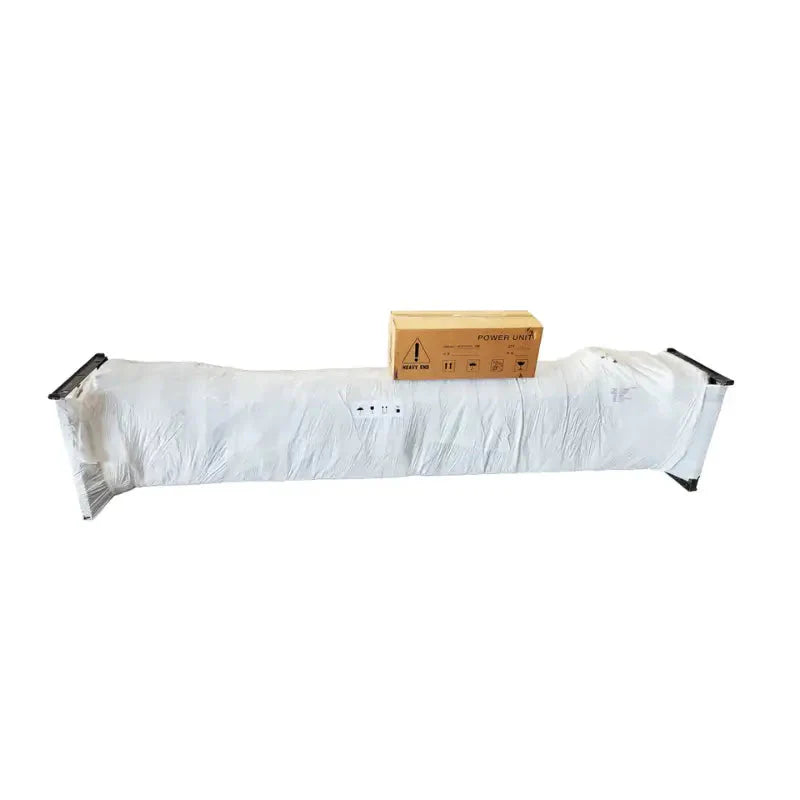

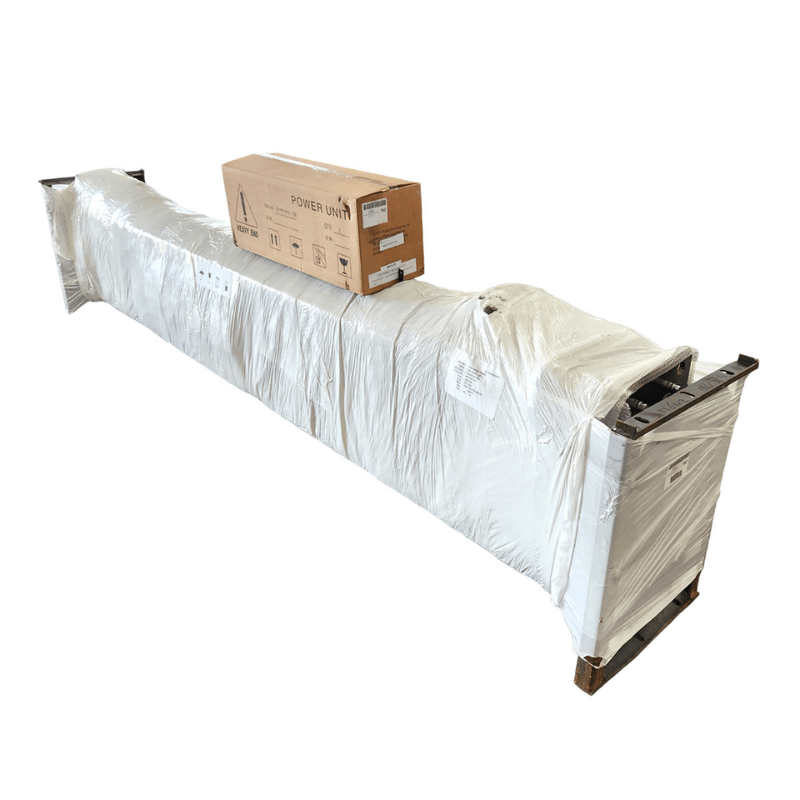

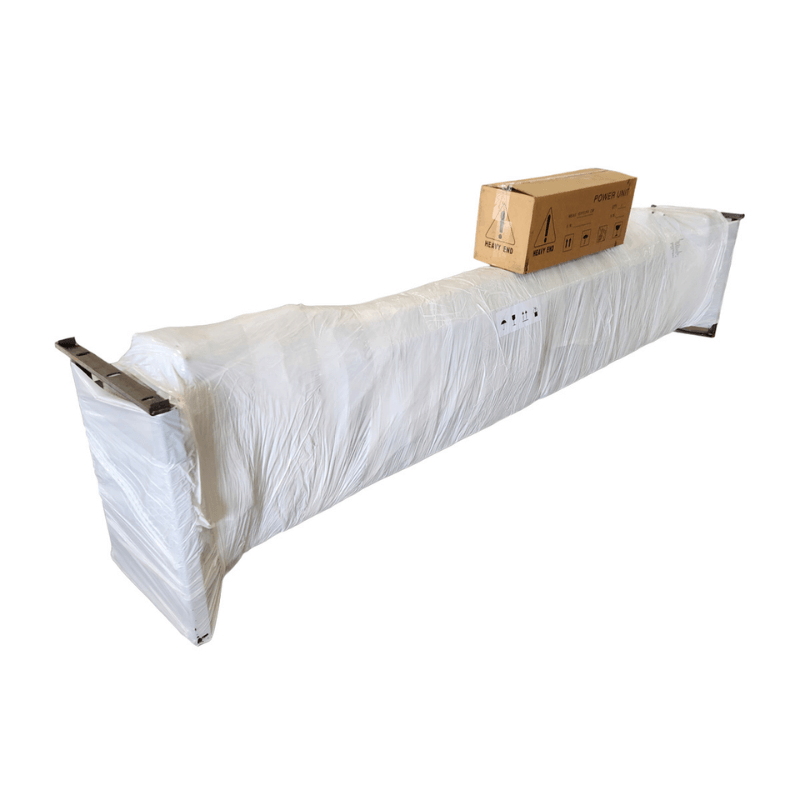

- Shipping Dimensions: 142"L x 22"W x 42"H - 1,380lbs
Titan 9,000lb 2 Post Lift Special Features
-

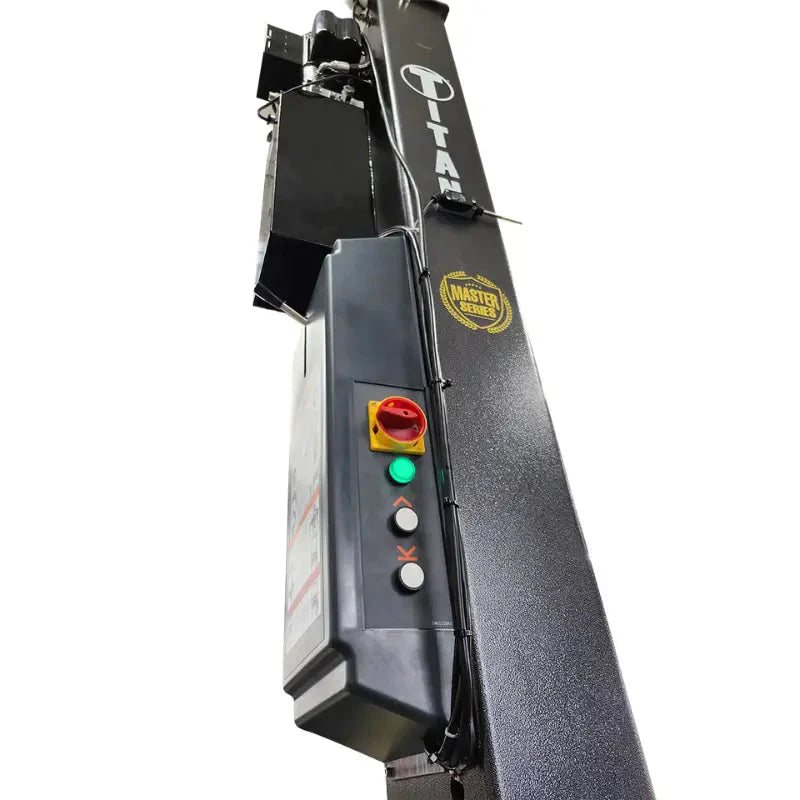

Power-on Green LED
-
Single-button operation
-
Included electrical disconnect
-
Single-lever lowering
-

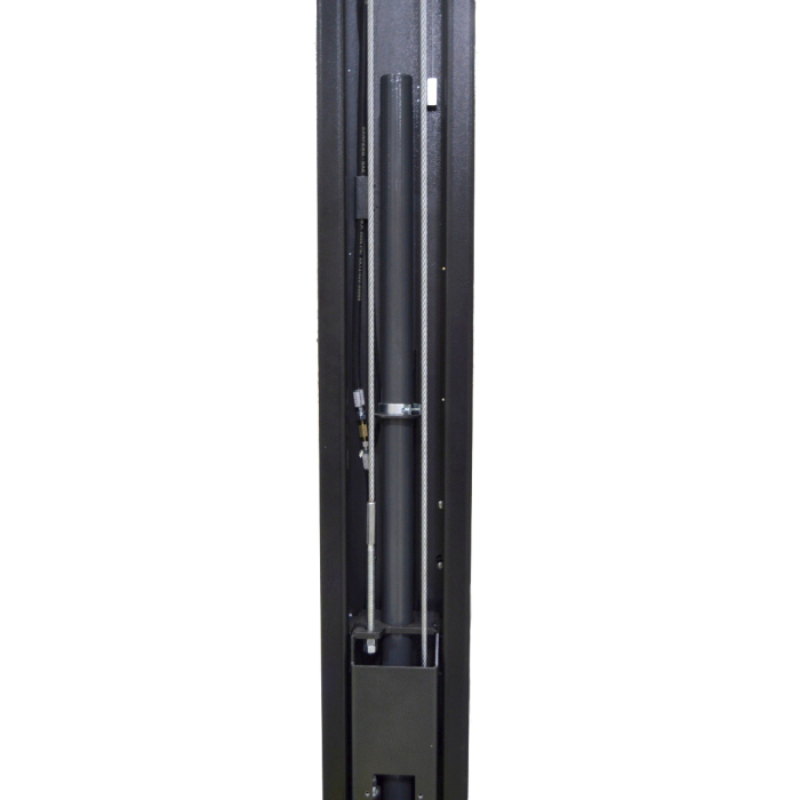

Direct drive hydraulic cylinders
-
Serviceable arm restraint locks
-
Thread-up lifting pads
-
Carriage limit switch
-

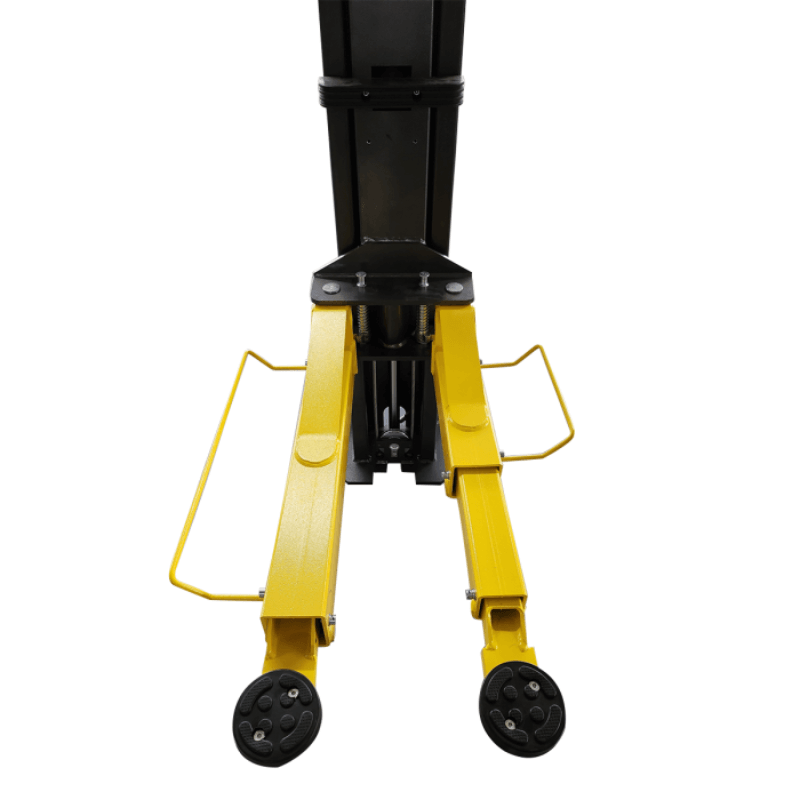

3-stage front arms
-
Single-point lock release
-
European-style carriages
-
4” truck adapters
-
Rubber door guards
-
Steel toe-guards
-
Steel hydraulic oil reservoir
-
Durable textured powder-coated finish
-
5-Year Structural Warranty
-
2-Year Electric & Hydraulic Parts Warranty
-
Lifetime Warranty on Nylon Slide Blocks
HD2P-9KMSC Manual
Warehouse Pickup locations (No shipping charge):
- Greenwood, IN 46143
