Titan SDPL-8KMS 8,000lb 4 Post Lift - Master Series

$2,399.00

$2,399.00 $4,075.00

Titan SDPL-8KMS 8,000lb 4 Post Lift - Master Series

$2,399.00

$2,399.00 $4,075.00

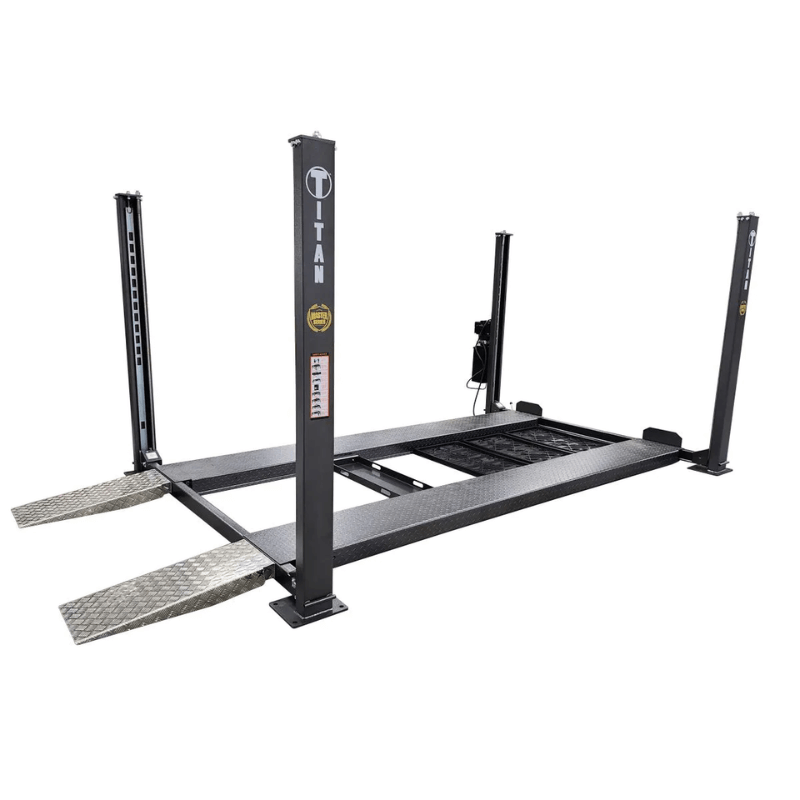

SDPL-8KMS 8,000lb 4 Post Lift by Titan

Need a lift that’s both versatile and reliable? The Titan SDPL-8KMS 8,000 lb 4-Post Lift delivers professional-grade performance with a durable hammered dark powder-coated finish and an impressive 8,000 lb lifting capacity. Its internal linkage rods provide a streamlined appearance and improve accessibility for quick adjustments, while the 110V motor integrates seamlessly into standard residential garages. The strategically positioned single-point safety lock release handle minimizes bending and makes operation simple and safe for everyday use.

The SDPL-8KMS comes equipped with diamond-plated steel one-piece runways, lightweight aluminum ramps, drip trays, and optional add-ons like a caster kit or sliding bridge jack, making it ideal for professional and enthusiast applications. With industry-leading warranties 2 years on electrical and hydraulic components and 6 years structural this lift is built for long-term durability, safety, and convenience, helping you elevate your garage experience.

4-Post Lift SDPL-8KMS Specifications

Capacity: 8,000 lb
Overall Height: 83-9/16”
Lifting Height: 76-3/4”
Runway Length: 160”
Runway Width: 18-11/16”
Overall Width (with Motor): 122-5/8”
Overall Width (without Motor): 107-1/16”
Inside of Columns – Width: 100-3/8”
Length (Outside of Columns): 164-3/8”
Inside of Columns – Length: 151-3/4”
Drive-Through Width: 90”
Width Between Runways: 43-1/2”
Outside of Runway to Outside of Runway: 80-7/8”
Ramp Length: 36-5/8”
Baseplate Dimensions: 11-13/16” x 10-1/4”
Shipping Dimensions: 164” (L) x 23” (W) x 45” (H)
Shipping Weight: 1,667 lb

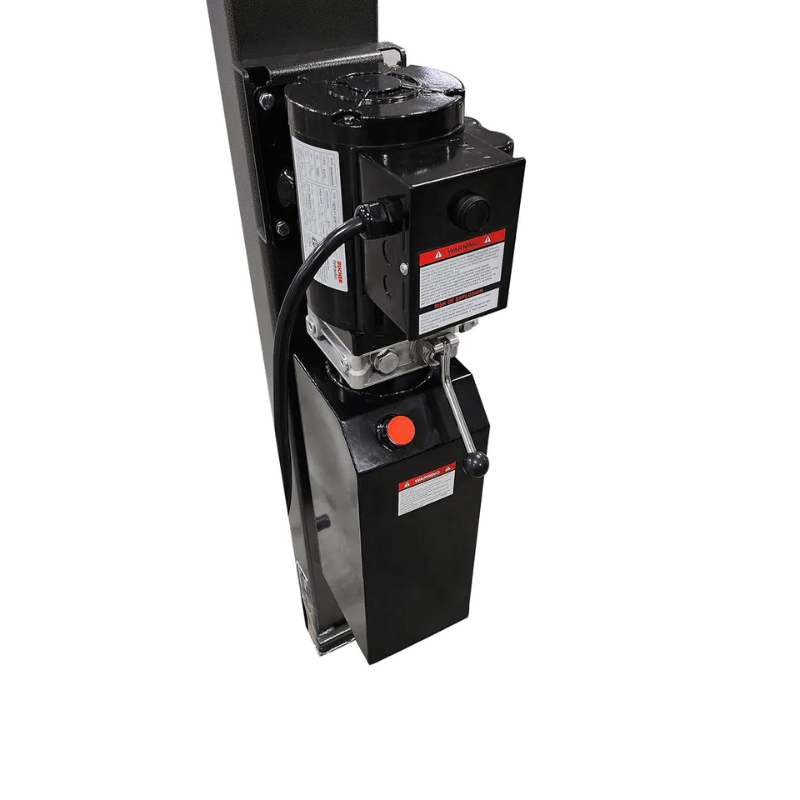

Power: 110V-120V / 60Hz - 1.5HP Motor

SDPL-8KMS 8,000lb 4-Post Lift Special Features

8,000 lb lifting capacity
Powder-coated hammered dark finish for durability
Internal linkage rods for sleek design and accessibility
Single-point safety lock release handle for convenient operation
Metal hydraulic tank reservoir for longevity
Diamond-plated steel one-piece formed runways
110V-120V / 60Hz AC power for easy residential integration
2-Year Electrical & Hydraulic Warranty
6-Year Structural Warranty
Included Accessories
- Aluminum ramps

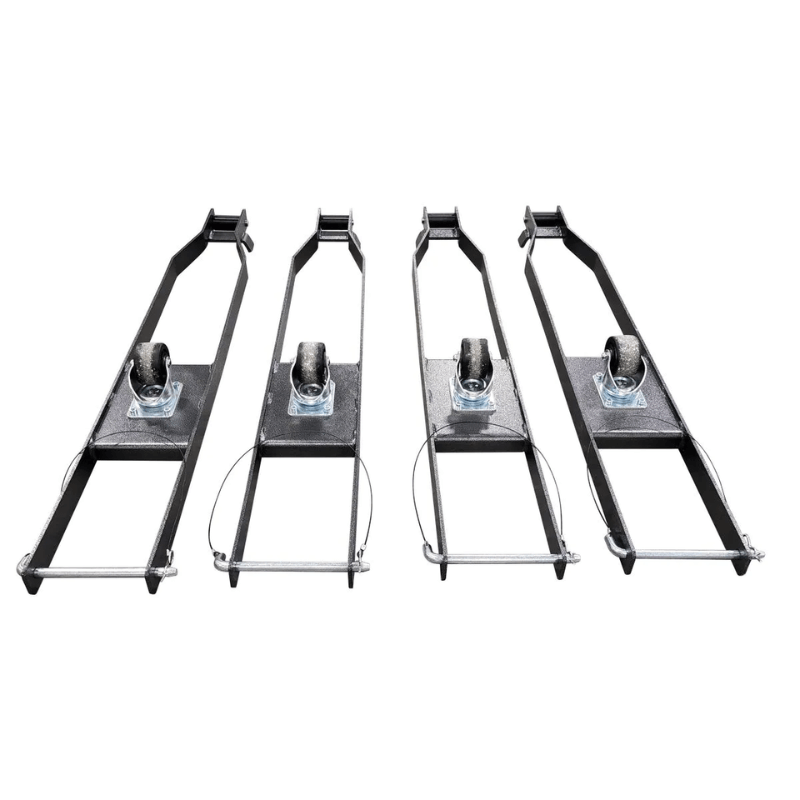

- Caster kit
- 3 drip trays
- Jack tray
- 2 wheel stop plates
Optional Accessories

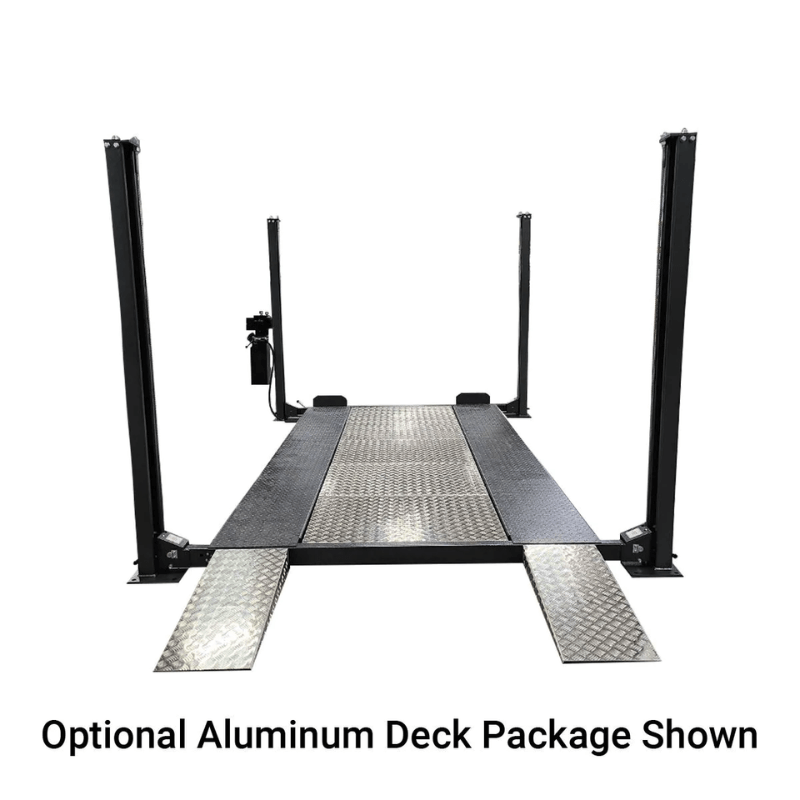

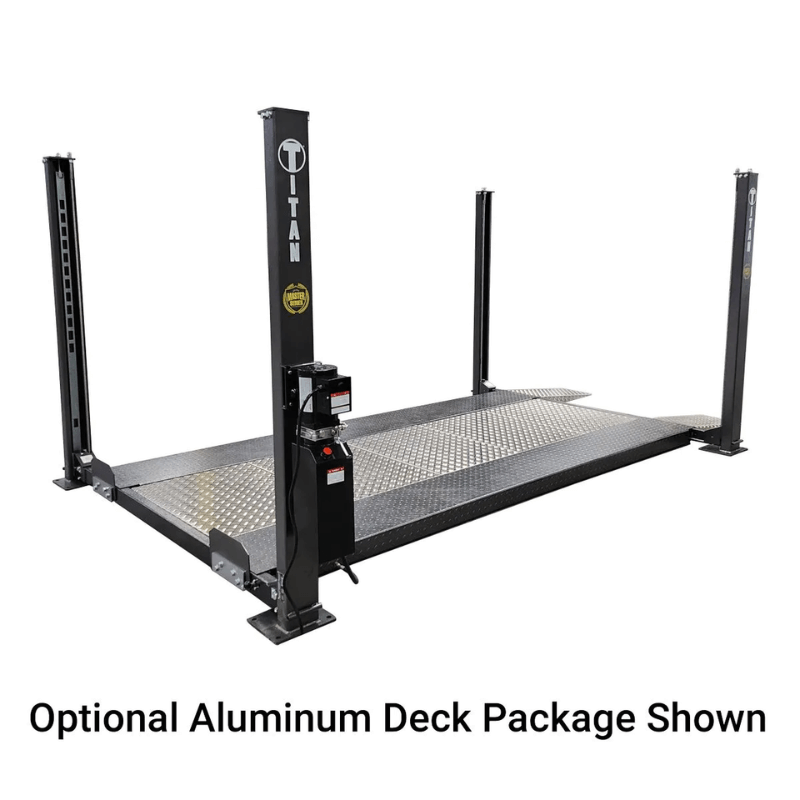

- Aluminum center deck package
- Sliding bridge jack
